Starter Kit (Adapters/Cable)
382 IOLAN SDS/SCS/STS User’s Guide, Version 3.6
Starter Kit (Adapters/Cable)
The IOLAN Starter Kit includes the following:
z RJ45F to DB25M DTE Crossover Adapter
z RJ45F to DB25M DCE Modem Adapter
z RJ45F to DB25F DTE Crossover Adapter
z RJ45F to DB9M DTE Crossover Adapter
z RJ45F to DB9F DTE Crossover Adapter
z Sun/Cisco RJ45M Connector Cable for Rack Mount Models
The adapters/cable can be purchased as a kit or individually.
RJ45F to DB25M DTE Crossover Adapter

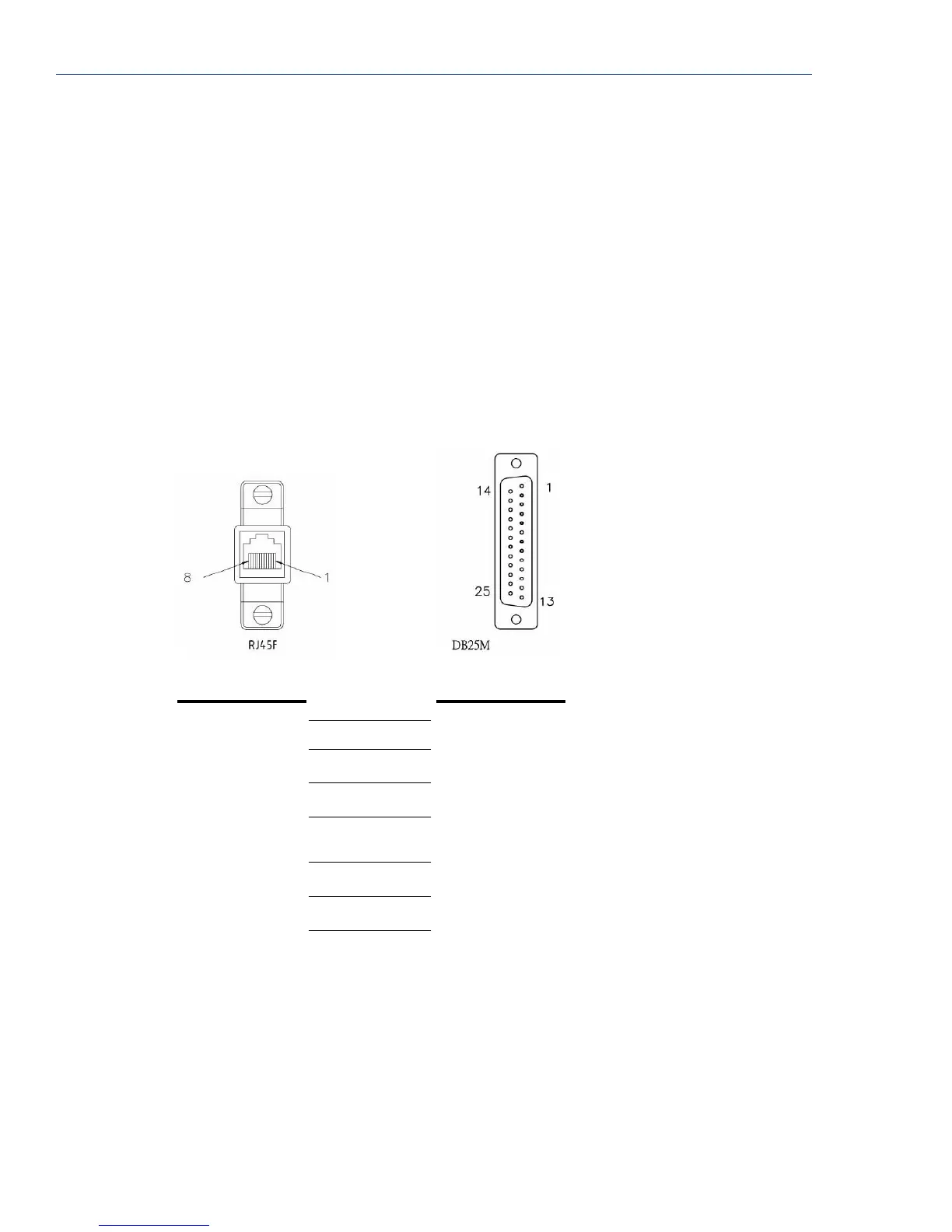

The following diagram shows the IOLAN RJ45F-->DB25M DTE crossover adapter pinouts. This is
model number DBA0011.
RJ45F DB25M DTE
(TxD) 4 3 (RxD)
(RxD) 5 2 (TxD)
(GND) 6 7 (GND)
(DTR) 8 6 (DSR)
8 (DCD)
(DSR) 3 20 (DTR)
(RTS) 2 5 (CTS)
(CTS) 7 4 (RTS)
