Accessories 391
SCS48C/SCS32C/SCS16C/SCS8C Starter Kit (Adapters/Cable)
RJ45F to DB9F DTE Crossover Adapter

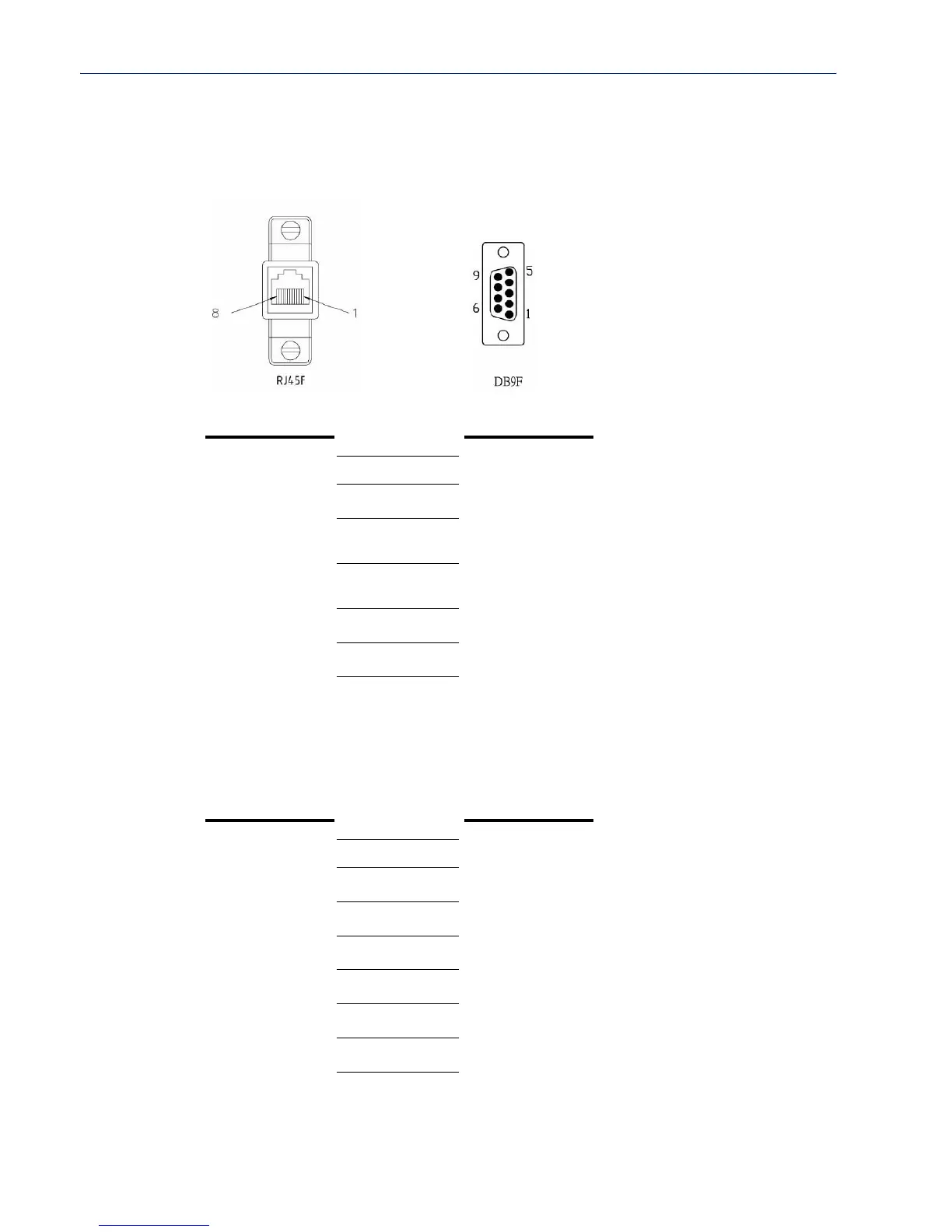

The following diagram shows the IOLAN RJ45FJDB9F crossover adapter pinouts. This is model
number DBA0020C.
Sun/Cisco Roll-Over Adapter for Rack Mount Models
This is a RJ45MJRJ45F Sun/Cisco adapter. This model number is DBA0031C.
*The Sun/Cisco RJ45M connector attaches to the Sun/Cisco Console port.
RJ45F DB9F
(TxD) 3 2 (RxD)
(RxD) 6 3 (TxD)
(GND) 4
(GND) 5
5 (GND)
(DTR) 2 1 (DCD)
6 (DSR)
(DSR) 7 4 (DTR)
(RTS) 1 8 (CTS)
(CTS) 8 7 (RTS)
IOLAN
RJ45F
Sun/Cisco
RJ45M*
1 8
2 7
3 6
4 5
5 4
6 3
7 2
8 1
