Perle IOLAN STS - RJ45 F to DB9 F DTE Crossover Adapter; Sun;Cisco RJ45 M Connector Cable for Rack Mount Models

Starter Kit (Adapters/Cable)
386 IOLAN SDS/SCS/STS User’s Guide, Version 3.6
RJ45F to DB9F DTE Crossover Adapter

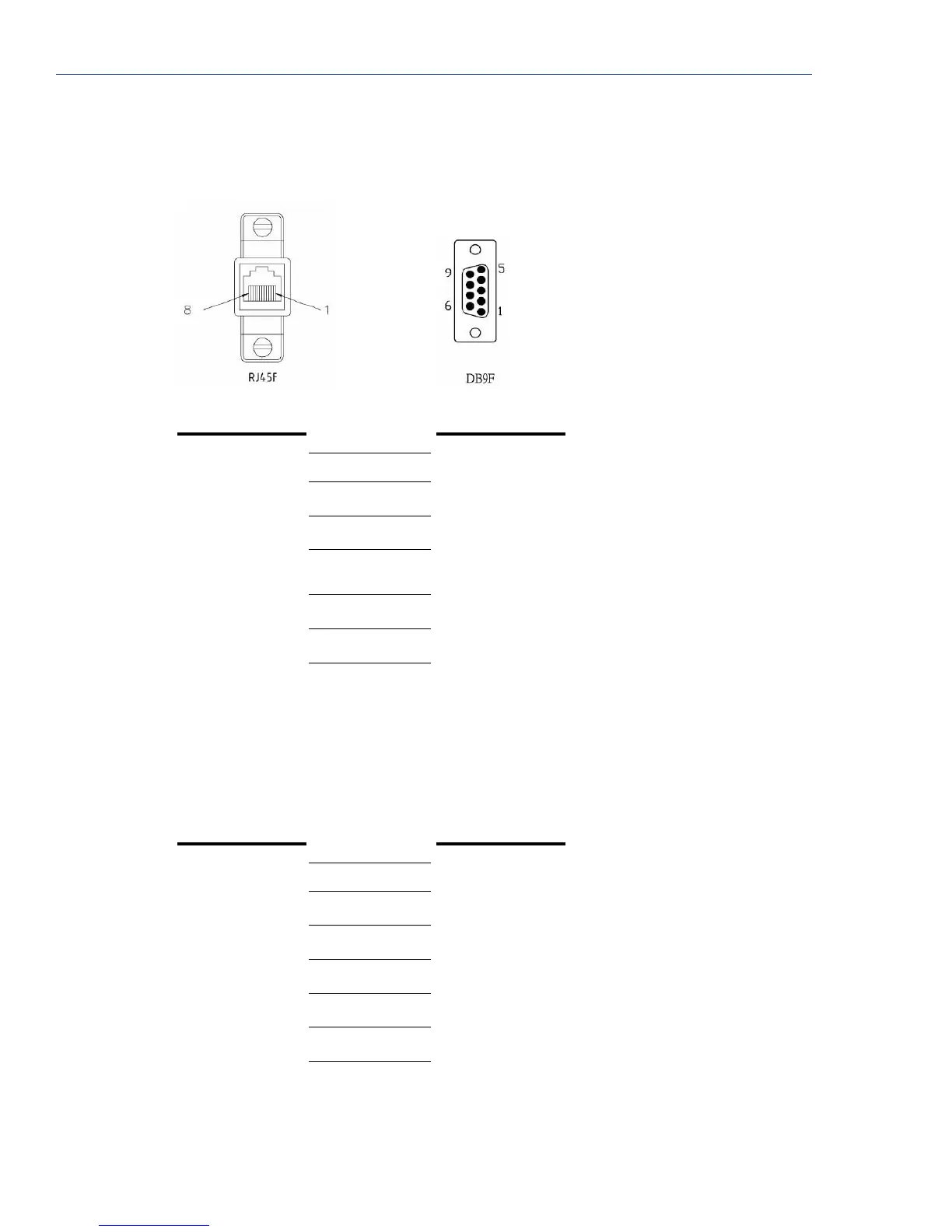

The following diagram shows the IOLAN RJ45FJDB9F crossover adapter pinouts. This is model
number DBA0020.
Sun/Cisco RJ45M Connector Cable for Rack Mount Models
This is a 3 meter RJ45MJRJ45M 8-wire Sun/Cisco modular cable. The following diagram shows
how the IOLAN RJ45M cable is configured when connecting to the supplied Sun/Cisco RJ45 cable.
This model number is CAB0030.
RJ45F DB9F
(TxD) 4 2 (RxD)
(RxD) 5 3 (TxD)
(GND) 6 5 (GND)
(DTR) 8 1 (DCD)
6 (DSR)
(DSR) 3 4 (DTR)
(RTS) 2 8 (CTS)
(CTS) 7 7 (RTS)
IOLAN
RJ45M
Sun/Cisco
RJ45M
(RTS) 2 8 (CTS)
(DSR) 3 2 (DTR)
(TxD) 4 6 (RxD)
(RxD) 5 3 (TxD)
(GND) 6 4 (GND)
(CTS) 7 1 (RTS)
(DTR) 8 7 (DSR)
