RJ45F to DB25M DCE Modem Adapter

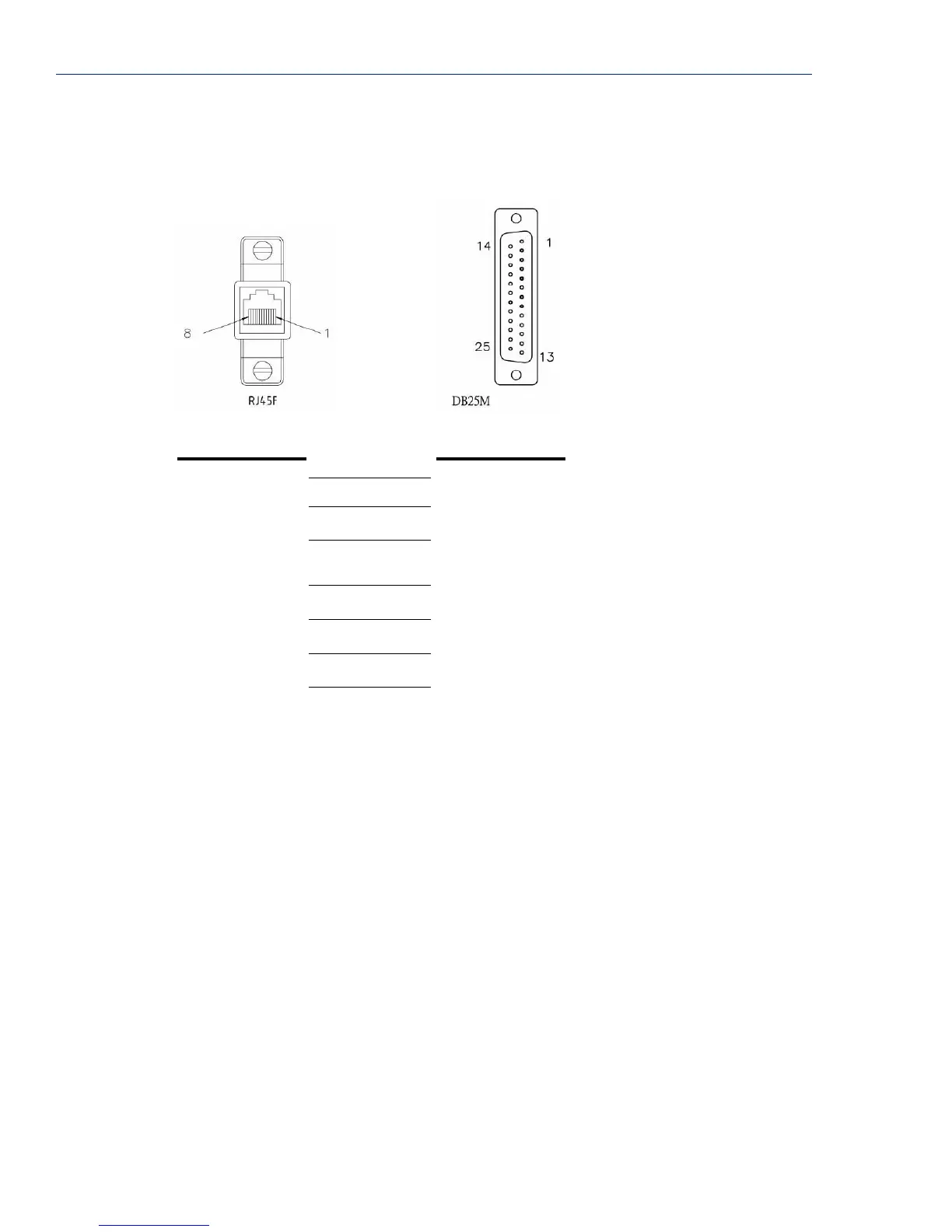

The following diagram shows the IOLAN RJ45FJDB25M DCE modem adapter pinouts. This is
model number DBA0013C.
RJ45F DB25M
(TxD) 3 2 (TxD)
(RxD) 6 3 (RxD)
(GND) 4
(GND) 5
7 (GND)
(DTR) 2 20 (DTR)
(DSR) 7 8 (DCD)
(RTS) 1 4 (RTS)
(CTS) 8 5 (CTS)
