User Guide – PERC2000 System Controller
Publication 81-9059-0605-0, Rev. B
November 2010
Proprietary Information of
PESA PESA 8-41

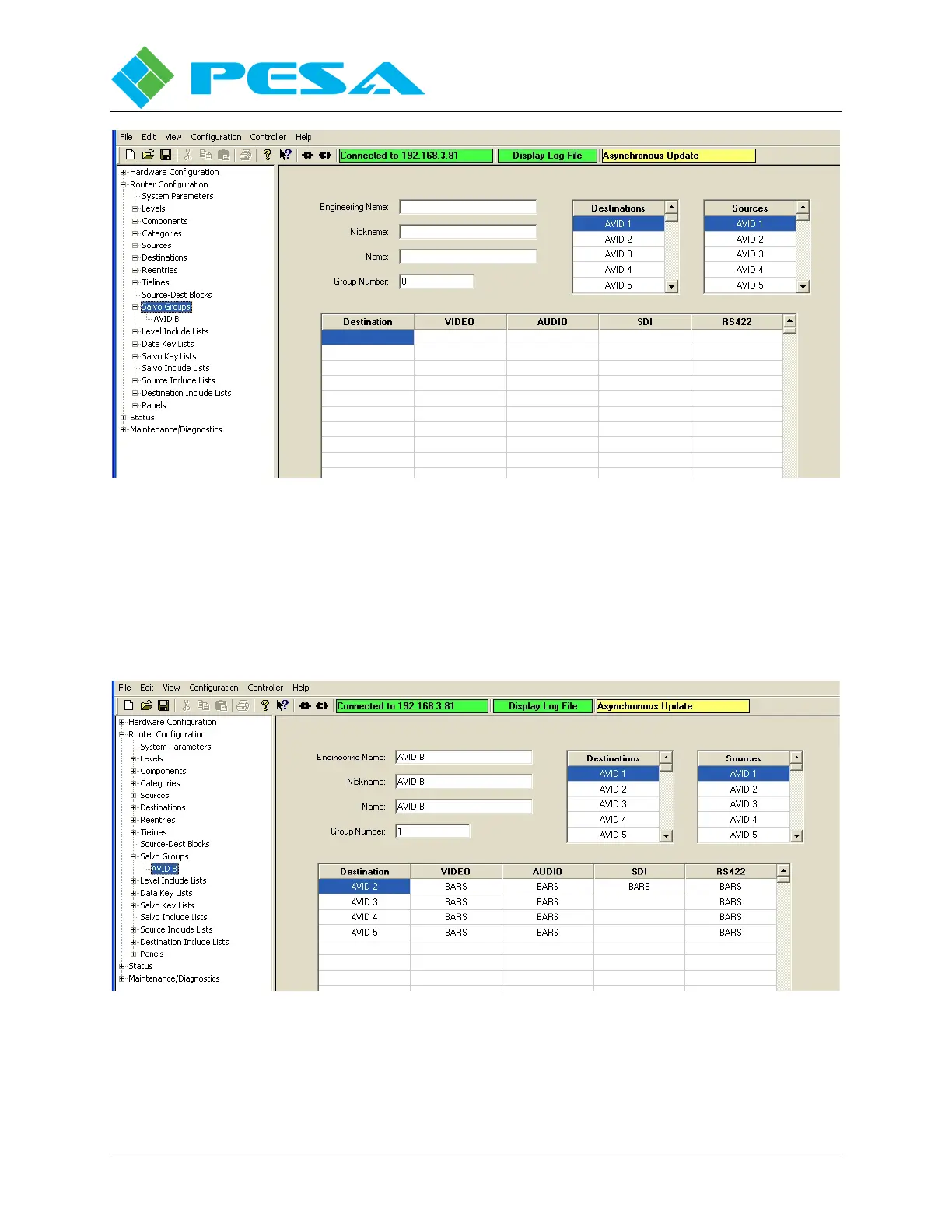

Figure 8-41 Salvo Groups Configuration Screen
The example screen shown in Figure 8-42 illustrates a salvo group named AVID B that, when
executed, switches the source named BARS to the indicated levels of the four listed
destinations. Salvo groups may be assigned by group name to a single control panel key.
When this key is pressed all switches defined in the salvo group will be simultaneously
switched. All switches in a salvo are taken within the same vertical interval.
Figure 8-42 Salvo Group Configuration Fields
