Cleaner System
NUMBER
DESCRIPTION
NUMBER
DESCRIPTION
1
294-116-049
294-116-048
CLEANER PUMP & FITTINGS, 110V
CLEANER PUMP & FITTINGS, 220V
13
294-115-650
DRIP TRAY
2
294-116-105
CLEANER TANK & BRACKET ASM
14
294-116-238
TYGOTHANE TUBE, 16 IN
3
294-116-113
SWIVEL NOZZLE ASM
15
294-116-239
TYGOTHANE TUBE, 31 IN
4
294-116-151
FLOW CONTROL NOZZLE ASM
16
810-240-088
SCREW, SOCKET-HEAD CAP 10-32 X 0.50,
STAINLESS STEEL
5
294-115-673
FILTER ASM
17
7150-019075-009
WASHER, FLAT, 3/16 X 3/4 X 3/32, ALUMINUM
6
294-116-152
TYGOTHANE TUBE, 9 IN
18
801-749-081
SCREW, FLANGE HEAD HEX, 1/4-20 X 1/2
7
294-116-153
TYGOTHANE TUBE, 12 IN
19
01-030
WASHER, FLAT, #10 SAE, ZINC
8
294-116-154
TYGOTHANE TUBE, 35 IN
20
01-033
WASHER, EXTERNAL TOOTH LOCK, #10 ANSI,
ZINC
9
294-116-155
TYGOTHANE TUBE, 37 IN
21
01-024
SCREW, PAN-HEAD PHILLIPS MACHINE 10-32 X
1.00, ZINC
10
294-115-733
TUBE SUPPORT
22
832-040-008
NUT, NYLON LOCK, 10-32
11
722-502-091
SPACER, FEMALE HEX, 10-32 X 3/8 X 1
23
01-019
SCREW, PAN-HEAD PHILLIPS MACHINE 10-32 X
0.38 ZINC
12
294-116-234
SIDE NOZZLE ASM
24
294-115-554
DRIP TRAY FOAM

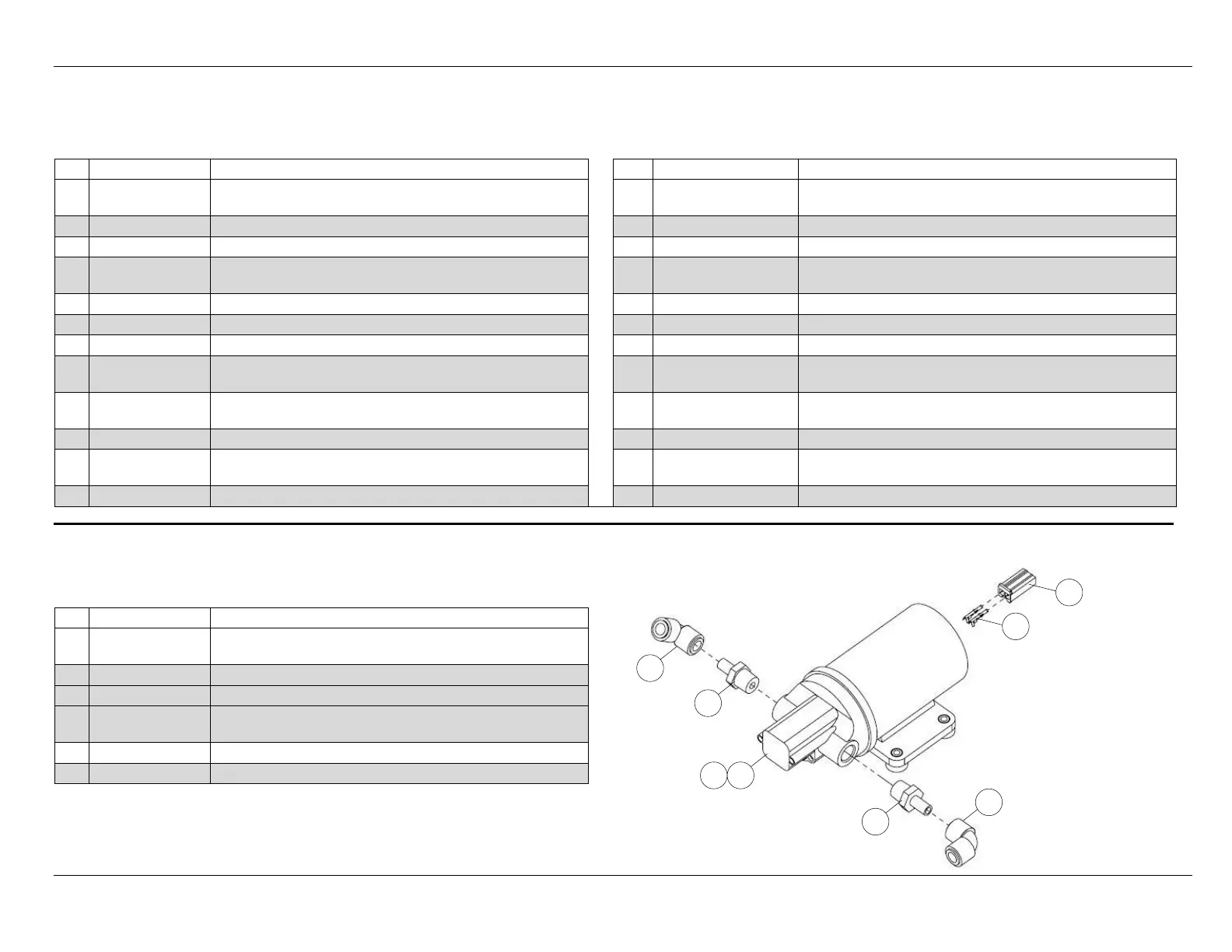

Cleaner Pump Assembly
NUMBER
DESCRIPTION
1a
1b
02-206
294-115-287
CLEANER PUMP, 110V
CLEANER PUMP, 220V
2
294-115-072
STEM ADAPTER, 3/8 MPT X 3/8
3
294-115-073
UNION ELBOW, 3/8 X 3/8
4
294-115-729
294-115-730
CLEANER PUMP ASM, 110V (INC. 1a, 5, & 6)
CLEANER PUMP ASM, 220V (INC. 1b, 5, & 6)
5
746-013-498
CONNECTOR, 2 POSITION
6
760-019-223
CRIMP TERMINAL, FEMALE, 14-20 AWG
2
2
3
3
5
6
4
1
