Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-18

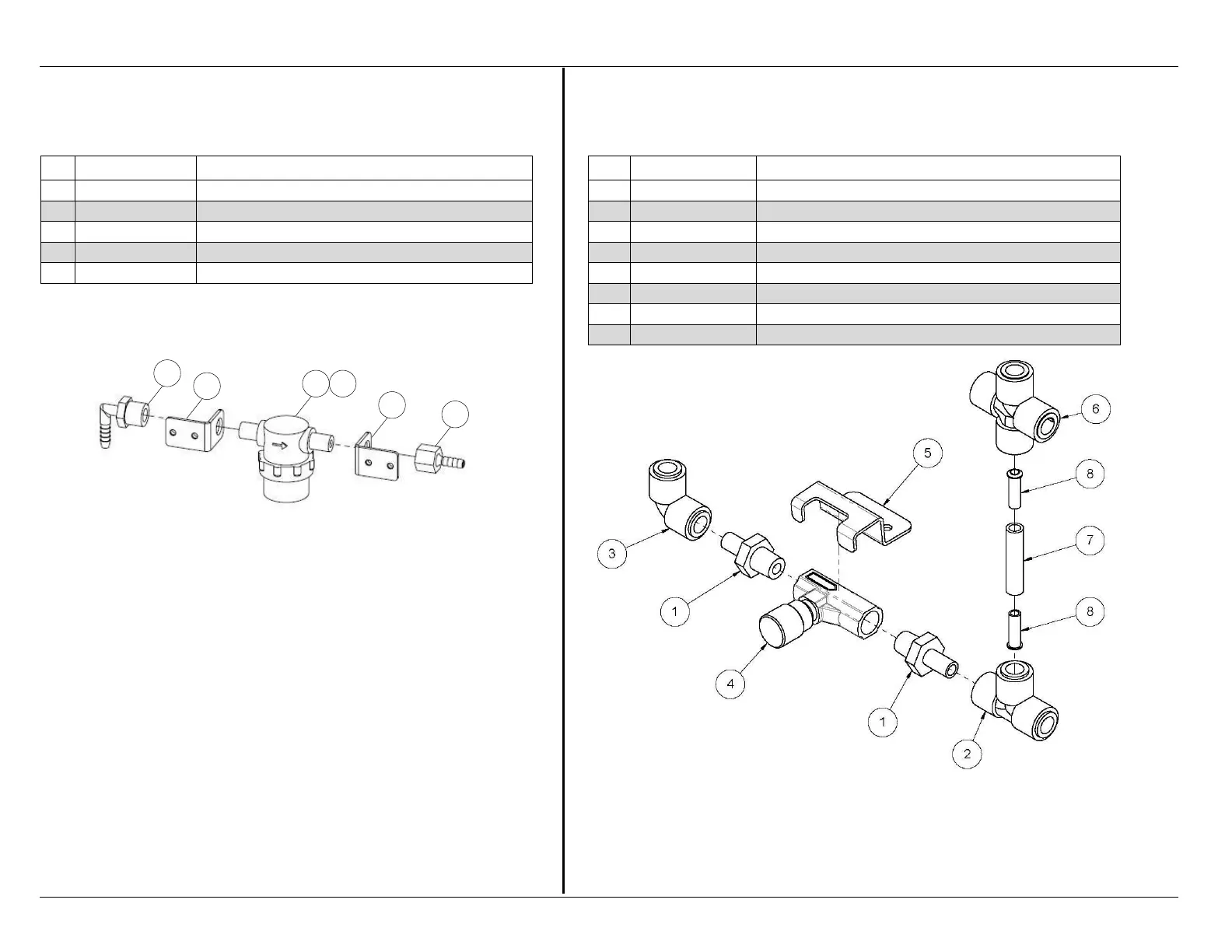

Cleaner Filter Assembly- 294-115-673 Flow Control Valve Assembly - 294-116-151
NUMBER
DESCRIPTION
NUMBER
DESCRIPTION
1
04-322
FILTER BOWL
1
294-115-071
STEM ADAPTER, 1/4 MPT X 3/8
2
04-322-1
MESH SCREEN FILTER (NOT SHOWN)
2
294-115-074
UNION TEE, 3/8 X 3/8
3
04-398
BAREB FITTING, 1/4 NPT X 1/4
3
294-115-073
UNION ELBOW, 3/8 X 3/8
4
294-115-455
BARED FITTING, 90°, 1/4 FEMALE X 1/4
4
294-115-636
FLOW CONTROL VALVE
5
294-115-675
FILTER MOUNTING BRACKET ASM
5
294-116-149
FLOW CONTROL VALE BRACKET
6
294-115-076
UNION CROSS (4X) 3/8
7
294-116-237
TYGOTHANE TUBE, 1.75 IN
8
294-115-733
TUBE SUPPORT
1
2
5
3
5
4
3
1
4
5
1
2
