Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-19

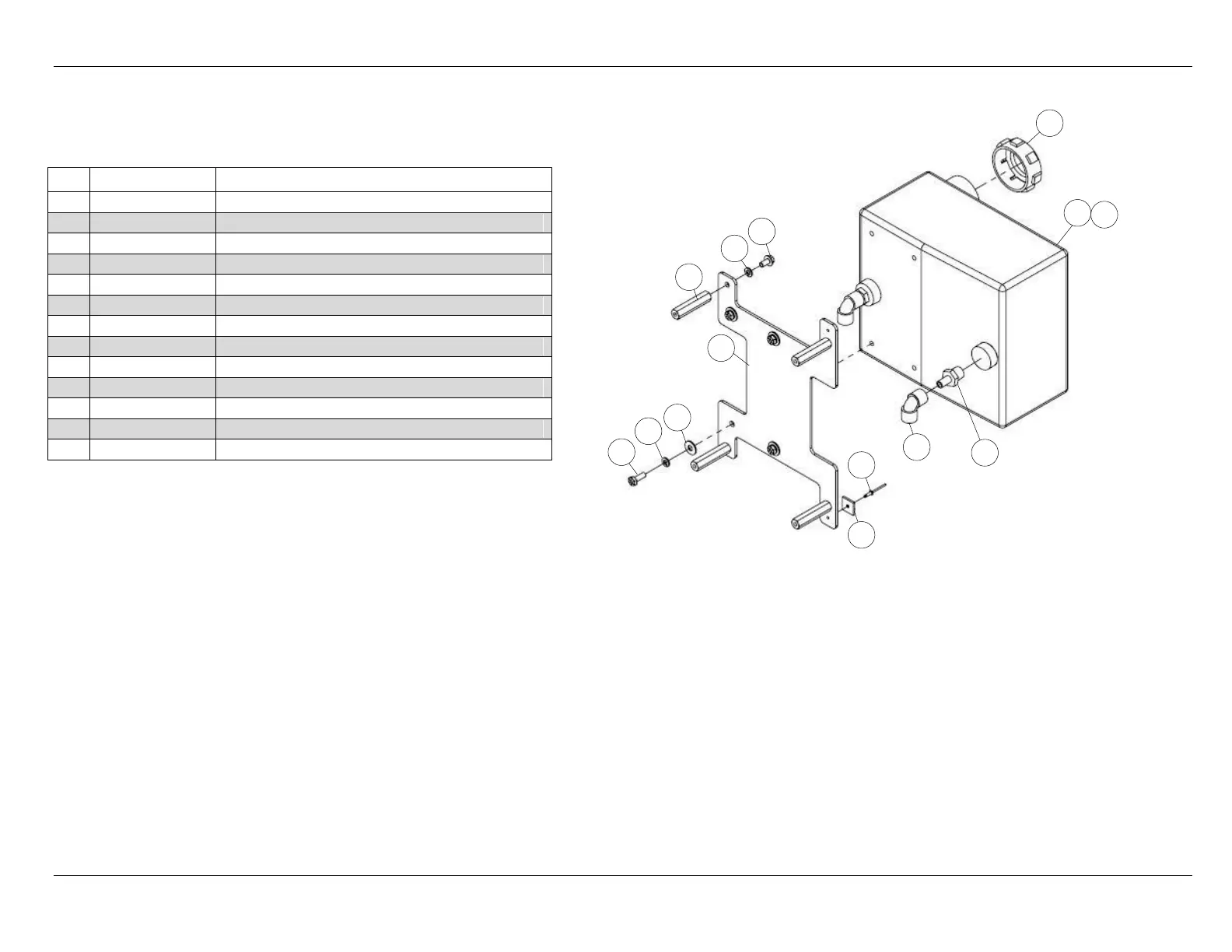

294-116-105 - Cleaner Tank & Bracket Assembly
NUMBER
DESCRIPTION
1
01-089
RIVET, 1/8 DIA X 3/8 LG, ALUMINUM
2
02-539
CABLE MOUNTING BLOCK, 3/4 X 3/4
3
294-115-072
STEM ADAPTER, 3/8 MPT X 3/8
4
294-115-073
UNION ELBOW, 3/8 X 3/8
5
294-115-092
CLEANER TANK CAP
6
294-115-525
CLEANER SUPPLY TANK
7
294-115-638
CLEANER TANK ASM (INCLUDES 2,3,4 & 5)
8
294-116-106
STANDOFF, CLEANER TANK
9
294-116-112
CLEANER TANK SUPPORT BRACKET
10
801-749-081
SCREW, FLANGE HEAD HEX, 1/4-20 X 1/2
11
809-849-125
SCREW, HEX, 1/4-20 X 3/4
12
945-056-122
WASHER, FLAT, 1/4
13
951-148-008
WASHER, SPLIT LOCK, 1/4
5
6
7
3
4
10
13
8
9
12
13
11
1
2
