Phoenix LT4 Lane Machine Operation, Maintenance, and Parts Manual
61-900040-000 Rev. Date 01/22
7-28

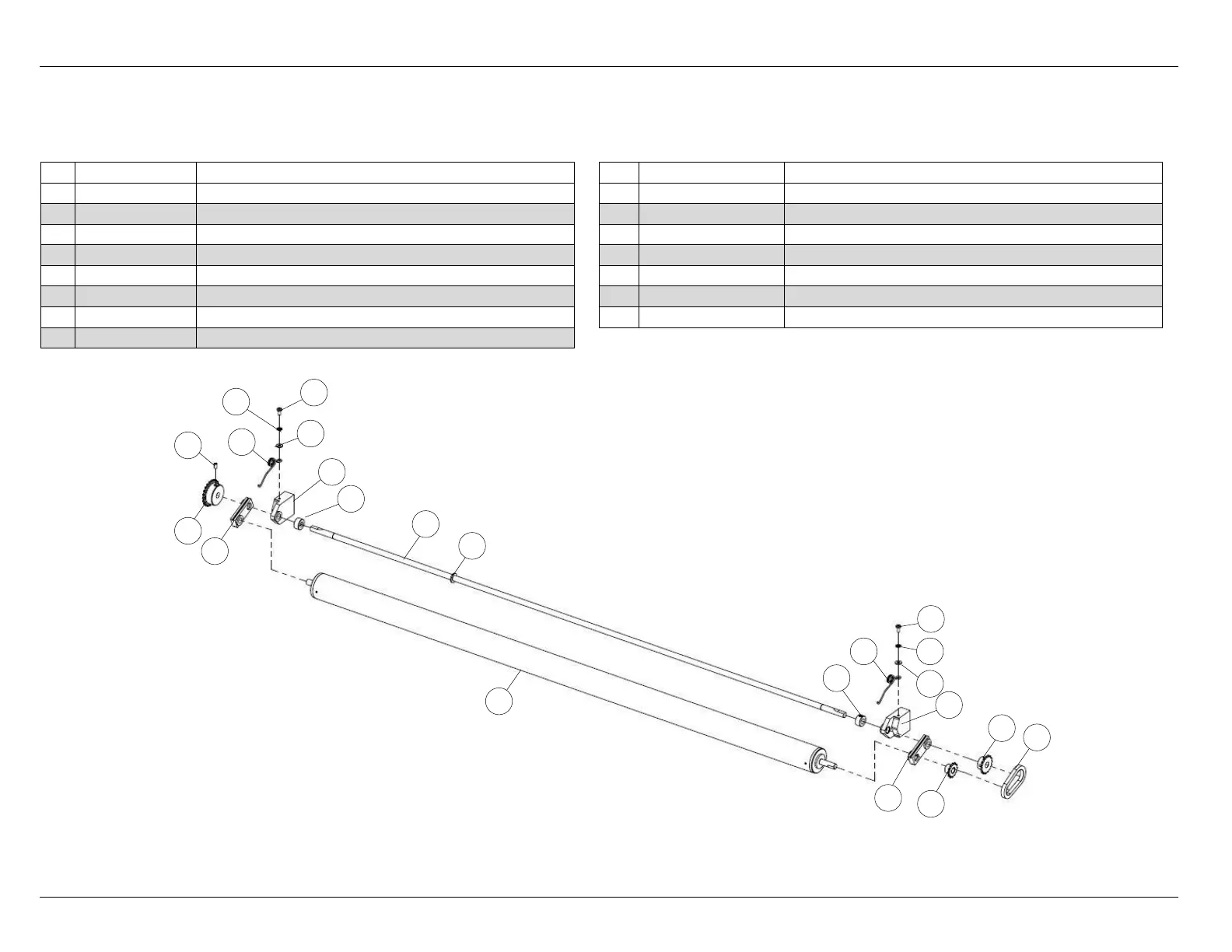

Transfer Roller Drive Assembly - 294-116-062
NUMBER
DESCRIPTION
NUMBER
DESCRIPTION
1
01-009
SCREW, PAN HEAD, 8-32 X 3/8
9
294-116-059
TRANSFER ROLLER SUPPORT ASM
2
01-016
WASHER, EXT TOOTH LOCK, #8
10
294-116-060
SPROCKET, #25 CHAIN, 22T
3
01-098
SCREW, SET, CUP POINT 10-32
11
294-116-061
TRANSFER ROLLER DRIVE SHAFT
4
01-109
WASHER, FLAT, #8
12
294-116-126
SPRING
5
03-001
SPROCKET, #25 CHAIN, 12T
13
A-0036
WASHER, TRANSFER ROLLER DRIVE
6
03-007
SPROCKET, #25 CHAIN, 15T
14
A-0071
CHAIN, TRANSFER ROLLER DRIVE
7
04-015
SET SCREW COLLAR
15
SA-0296
TRANSFER ROLLER ASM
8
294-116-057
ROLLER SHAFT SUPPORT ASM
15
9
10
3
8
7
12
4
2
1
11
13
7
12
4
2
1
8
9
5
6
4
