Operation

61-900040-000 Rev. Date: 01/22 3-13

If Auto Back is selected, the machine will use the last lane distance reading before the error

and return itself to the foul line. A screen similar to the one shown in Figure 3- 25 will be

displayed when Auto Back is selected.

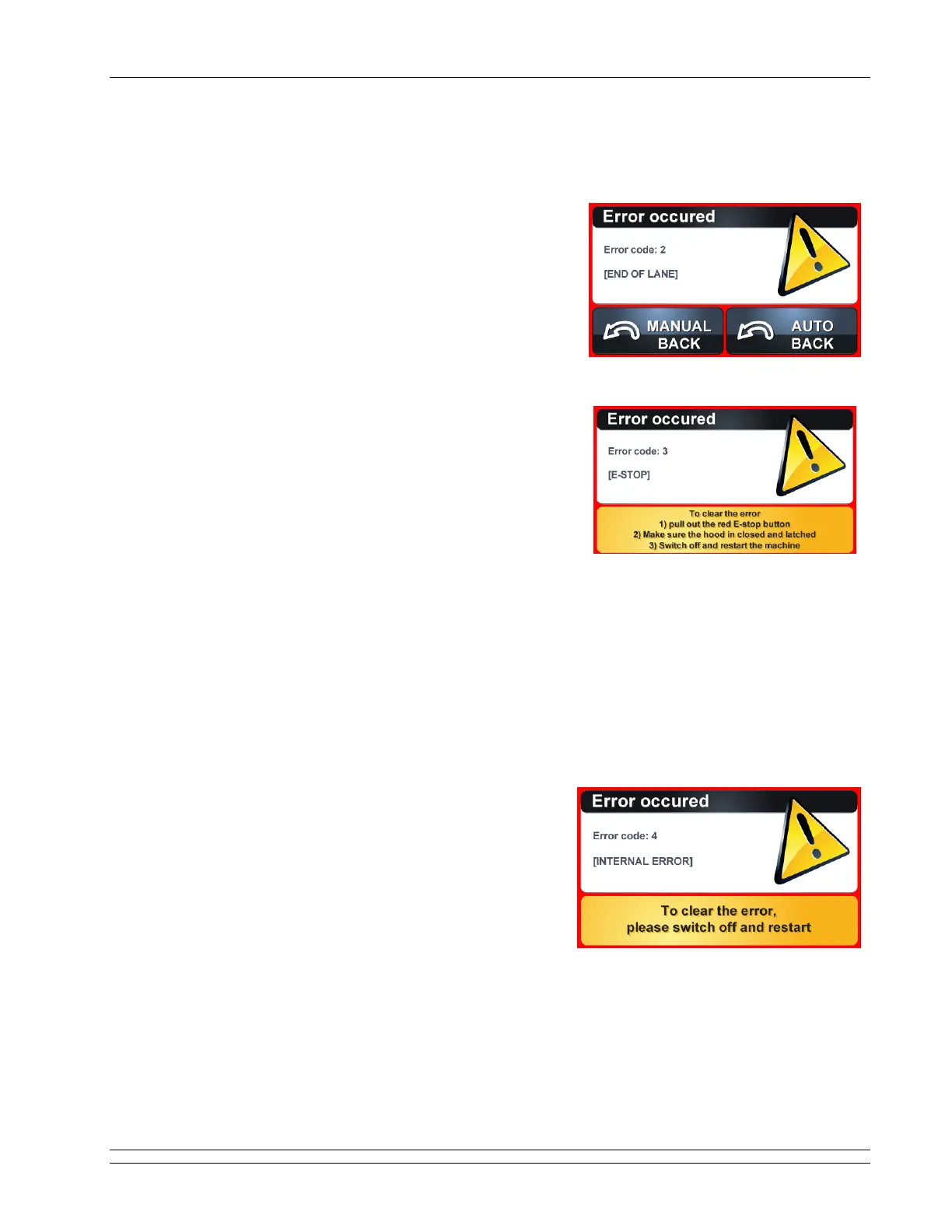

Error Code 2 - End of Lane

The End of Lane error, shown in Figure 3- 26, can

occur under two circumstances. The first is the

detection of the end of the lane outside the normal

range of 52 to 65 feet. The second could be loss of

signal from the optical sensor either due to a faulty

sensor or becoming disconnected from the control box.

Error Code 3 - E-STOP

When the E-STOP button is depressed (indicated by no

yellow showing behind the button) or the cover is lifted

or removed, the error message shown in Figure 3- 27

will appear on the screen. When an E-STOP error

occurs, all machine operations are stopped and cannot

be restarted.

To reset the machine do the following:

If the error was caused by the E-STOP button being depressed, insert the key into the

E-STOP switch and turn (the button should pop back out and the yellow sticker behind it

should be visible) then turn the power switch off then on.

If the error was caused by opening or removing the cover, close or reinstall the cover and

turn the power switch off then on.

Internal Error

The internal error, shown in Figure 3- 28, occurs if

there is an interruption of communication inside the

control box between the logic and relay boards. If this

error occurs, turn the power switch off then on. If the

error is cleared the machine is okay for operation.

If it reoccurs, contact the Brunswick Customer

Response Center at 1-800-YES-BOWL (1-800-937-

2695). Additionally, Technical Support can be

reached by e-mail at techsupport@brunbowl.com or

fax at 1-231-725-4667.

Figure 3- 27

Figure 3- 26

Figure 3- 28

Phoenix LT4 User Manual
