3.3. Components of the LUCAS® 2 Chest Compression System
LUCAS has two Support Legs that lock to the Back Plate with Claw Locks. The Support Legs
are foldable for convenient transportation.
The Claw Locks automatically lock to the Back Plate when LUCAS is pressed on to it.
To unlock the Claw Locks, pull the Release Rings.

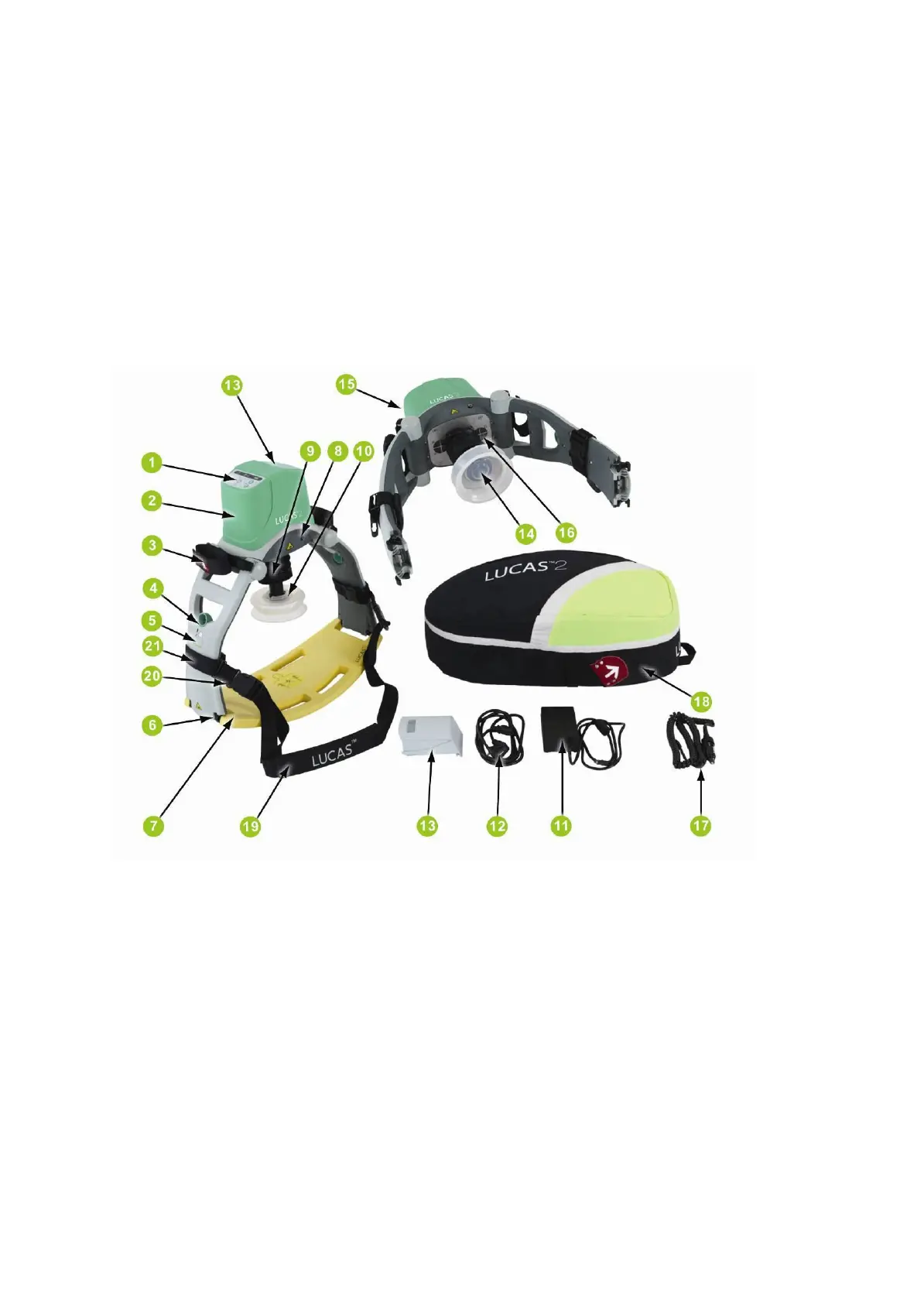

Figure 3.3-1:
Components of LUCAS Chest Compression System
1. User Control Panel
12.Power Supply cord
2. Hood
13.Battery
3. Patient Strap
14.Pressure pad
4. Release ring
15.Upper Part
5. Support leg
16.Vent holes
6. Claw locks
17.Car Power Cable
7. Back Plate
18.Carrying Bag
8. DC input
LUCAS Stabilization Strap:
9. Bellows
19.Cushion strap
10.Suction Cup
20.Buckle
11.Power Supply
21.Support leg strap
