9.2.2. Reassembling

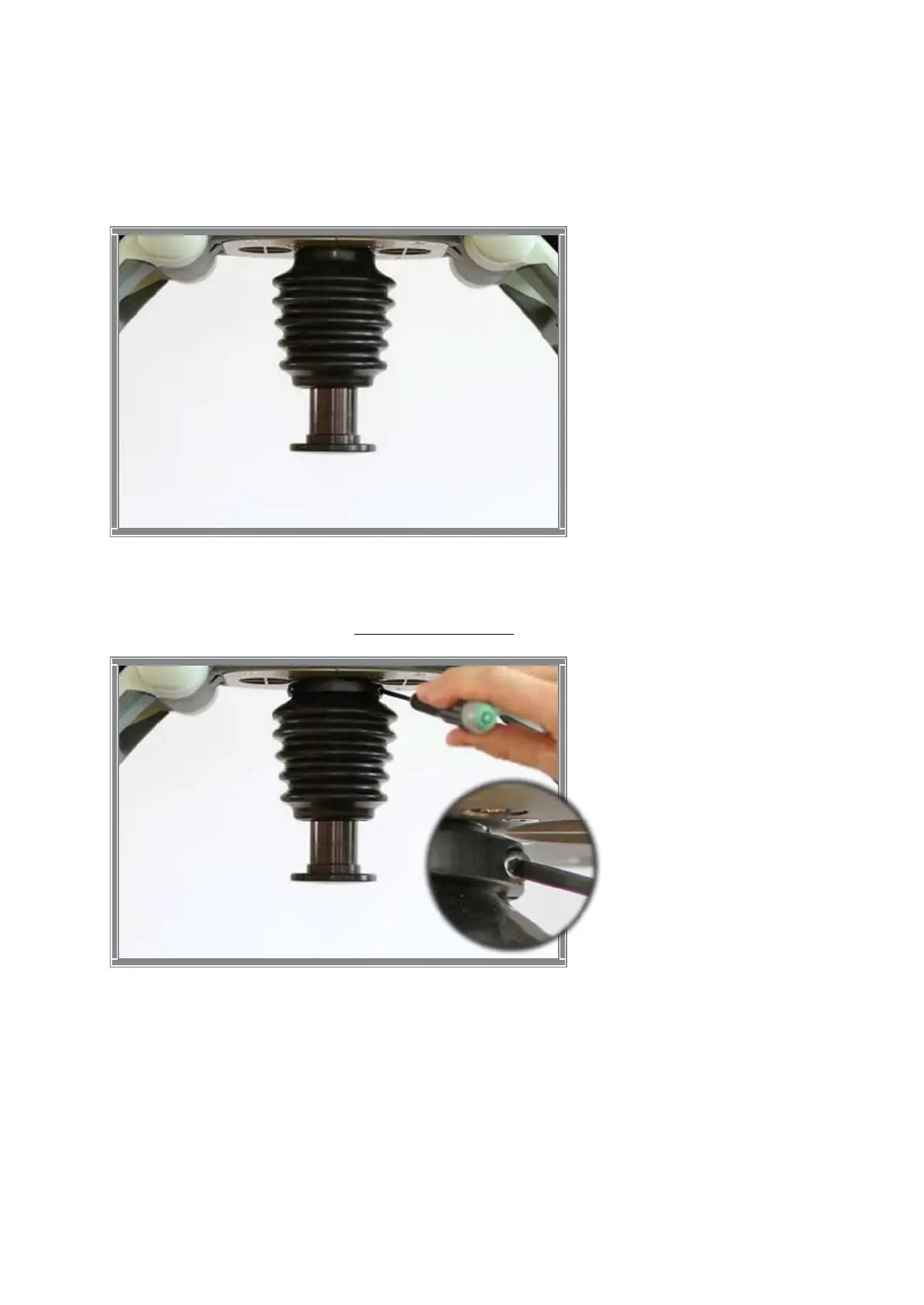

Carefully thread the Bellows over the piston and position it as far up as possible.
Place the clamp and fixate the bellows by tightening the two screws to 9.0 in-
lbs / 1.0 Nm Torque Screwdriver Torx 10 (T10) or 13.0 in-lbs / 1.5 Nm Torque
Screwdriver Torx 20 (T20) depending on the Bellows Clamp.
The clamp should be positioned as far up as possible.
