LUCAS® Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
54
9.5.2. Reassembling

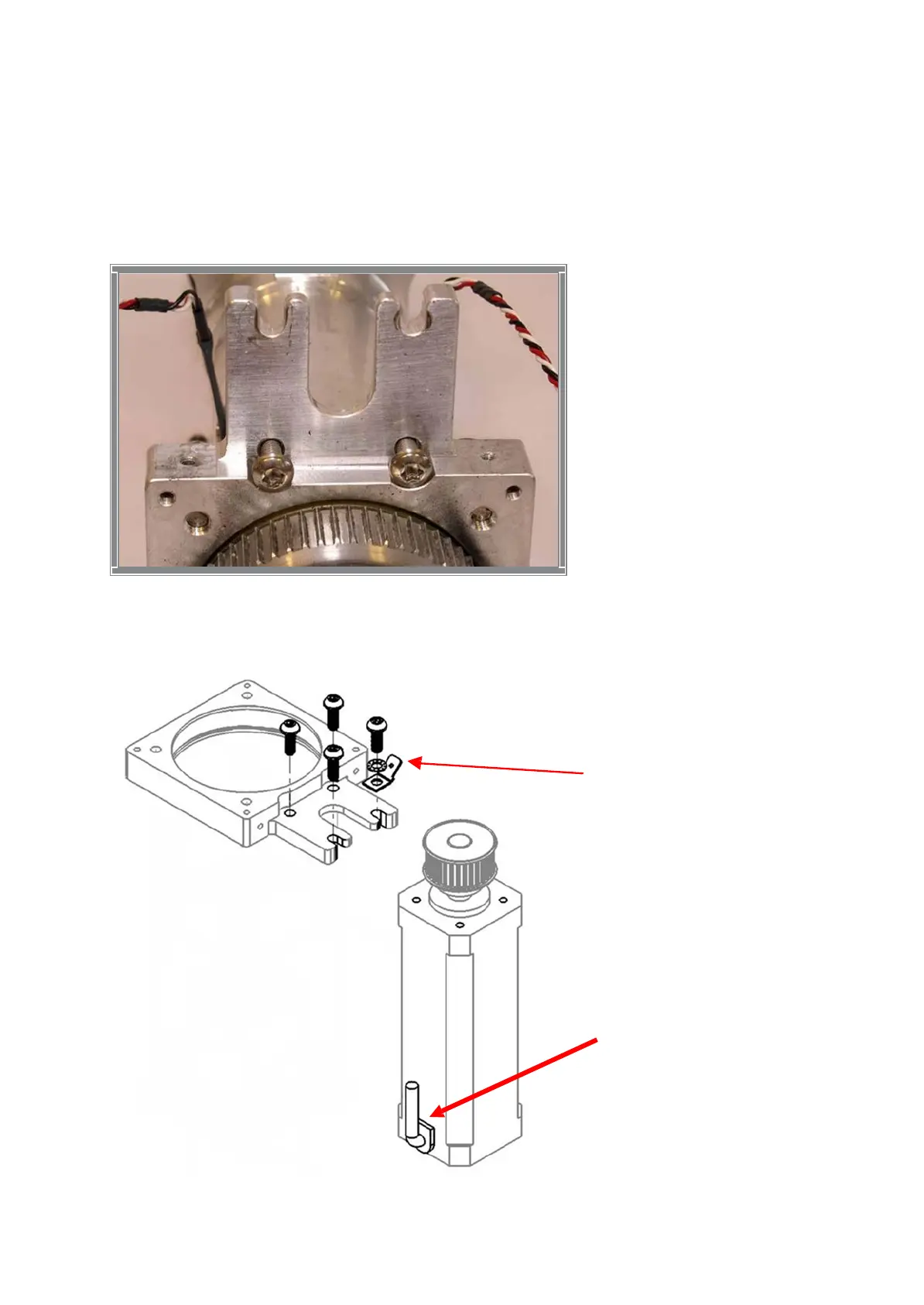

Apply Thread Lock Fluid on two of the screws and place them in the bracket according to picture below.
Apply Thread Lock Fluid to the other two screws and put them on the Motor together with the lock washer
and terminal. Make sure that the cable outlet is oriented as figure below.
Slide the Motor onto the Bracket and tighten the screws to 17.5 in-lbs / 2.0 Nm, make sure to align the
terminal as picture below Torque Wrench Torx 20 (T20).
Terminal
Motor Cable Outlet
