LUCAS® Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
52
9.4. Replacing the Drive Belt
9.4.1. Disassembling
Remove the hood according to Section 9.1.

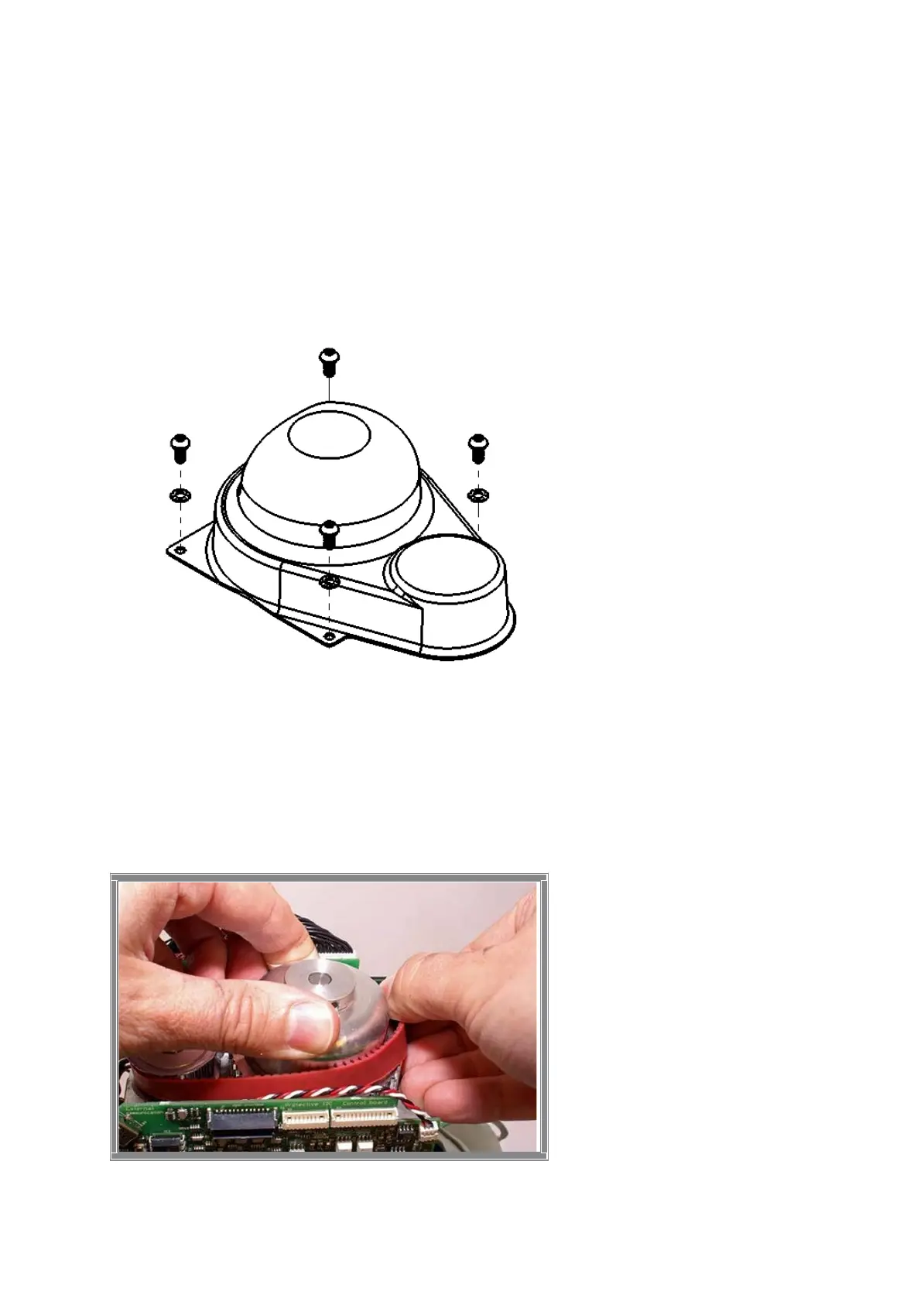

Remove the Belt Cover by removing the four screws; be careful not to lose the washers
Torx 10 (T10).
Cut the Belt with a pliers or scissors and remove it.
9.4.2. Reassembling
Thread the new Belt over the small Belt Wheel first.
Continue to Thread it over the Large Belt Wheel and turn the wheel at the same time to get
the belt in place.
