Physio Control lucas 2 - Replacing the Electric Motor

LUCAS® Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
53
Fasten the Belt Cover according to picture in Section 9.4.1, tighten the screws to 9 in-lbs /
1.0 Nm
Torque Wrench Torx 10 (T10). Note: Do not use any Thread Lock Fluid!
Re-install the Hood, the Bellows, and the Suction Cup.
9.4.3. Test
Perform a Function Check according to Section 10.
9.5. Replacing the Electric Motor
9.5.1. Disassembling
Follow the instructions in Section 9.3.1 to take out the Compression
Module. Remove the Drive Belt according to Section 9.4.

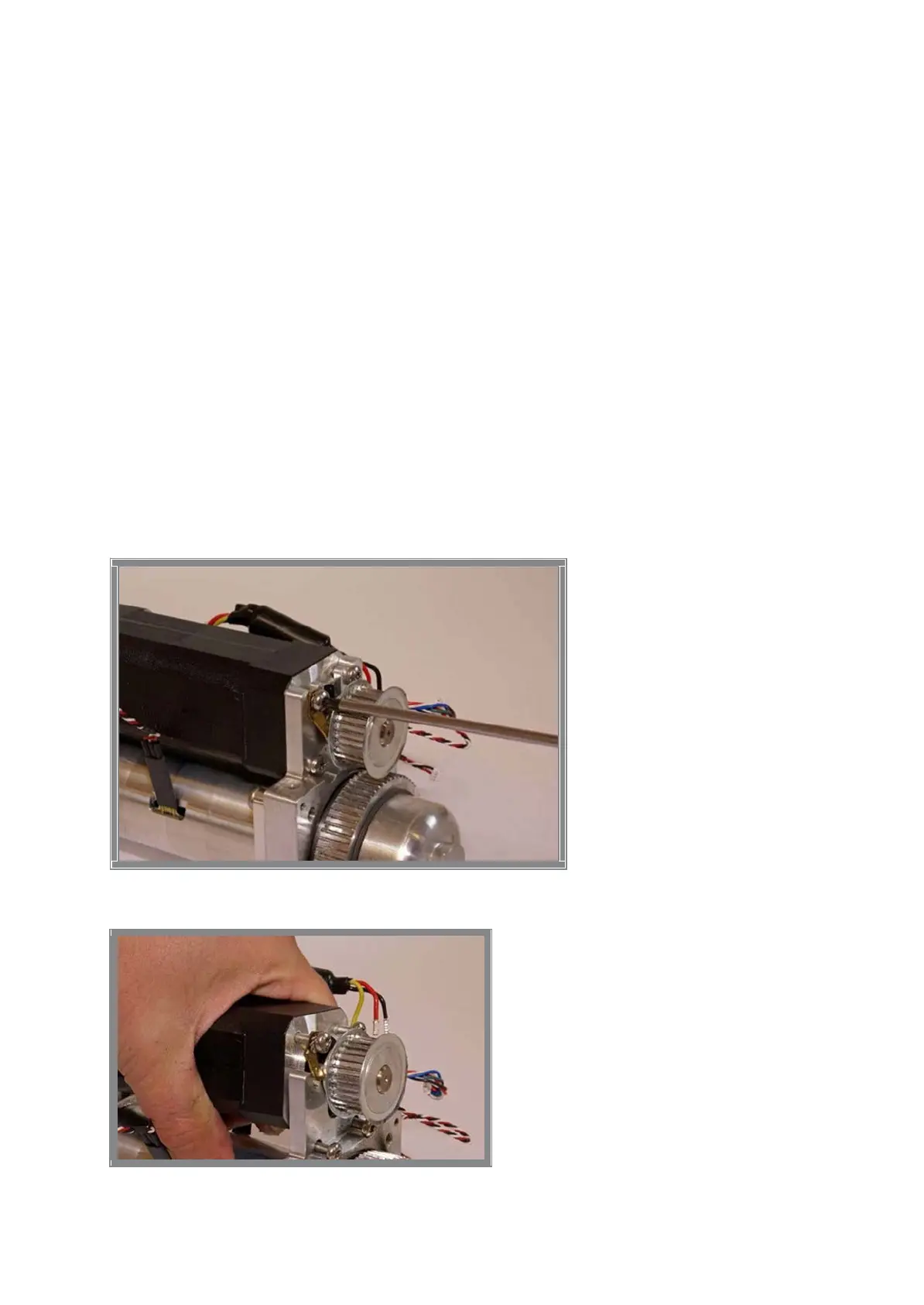

Remove the inner two screws and loosen the outer two screws holding the Motor Torx 20
(T20).
Slide the Motor out from its bracket.
