Physio Control lucas 2 - Replacing the Compression Module

LUCAS® 2 Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
47
9.3. Replacing the Compression Module
9.3.1. Disassembling
Take off the Suction Cup and remove the Bellows according to instructions in
Section 9.2.1. Remove the Hood according to instructions in 9.1.1.

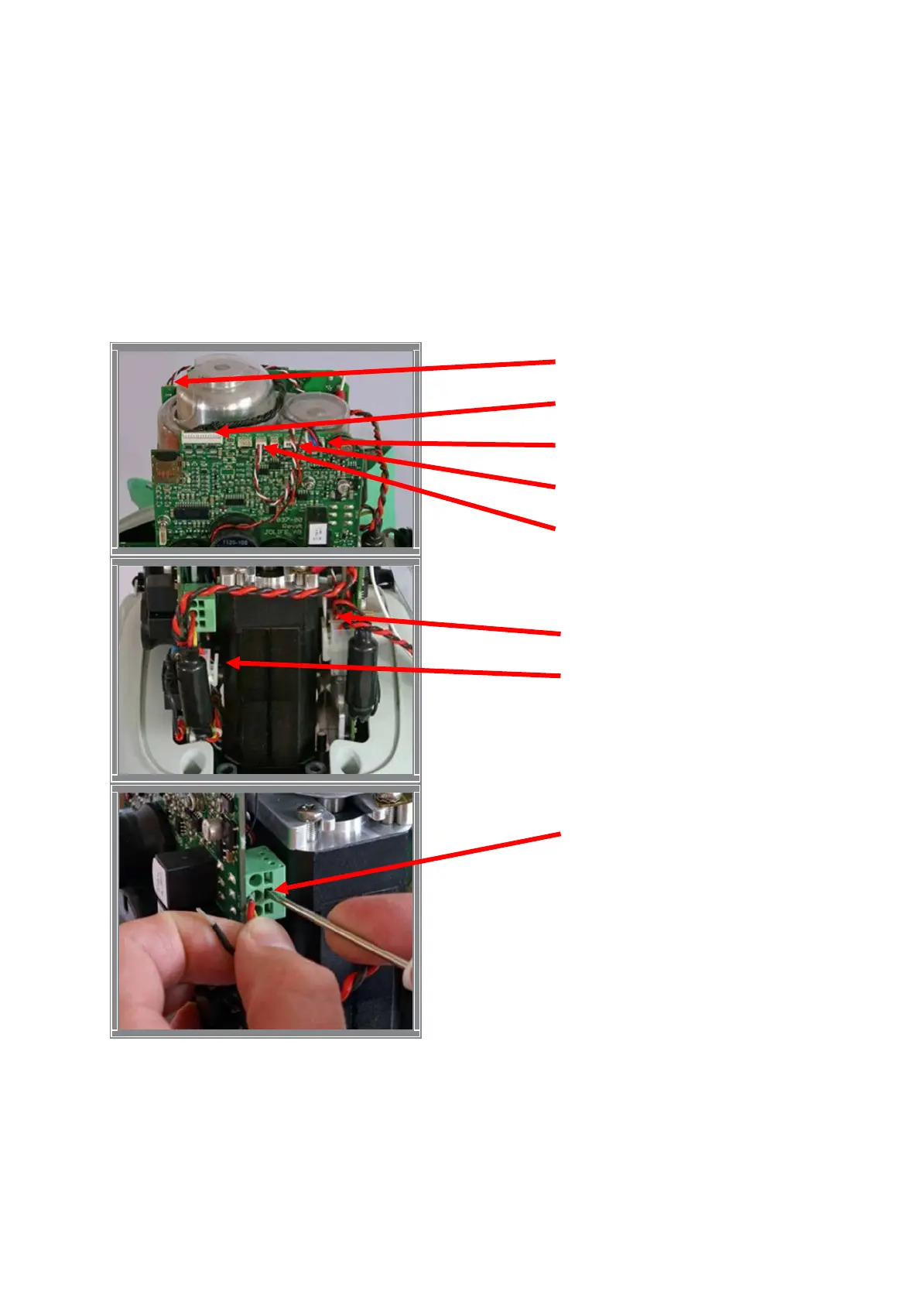

Disconnect the following cables on LUCAS 2.0 and LUCAS 2.1 according to pictures below:
Protective Pot Cable
Communication Cable
Motor Rotation Sensor
Cable
Fan
Cable
Control Pot
Cable
Protective Power Cable (cut the
cable tie)
Control Power Cable
Motor Power Cable; use a small
flat screwdriver to remove the
cables.
From top:
Black
Red
Yellow
