9.8.2. Reassembling
Make sure all parts are assembled as picture below. The screws shall be locked
with thread lock fluid and tightened to 9 in-lbs / 1.0 Nm Torque Wrench Flat 5.5x0.8 mm (5.5).
Threaded plate
Cable outlet
Fan washer
Mesh
Screw X4

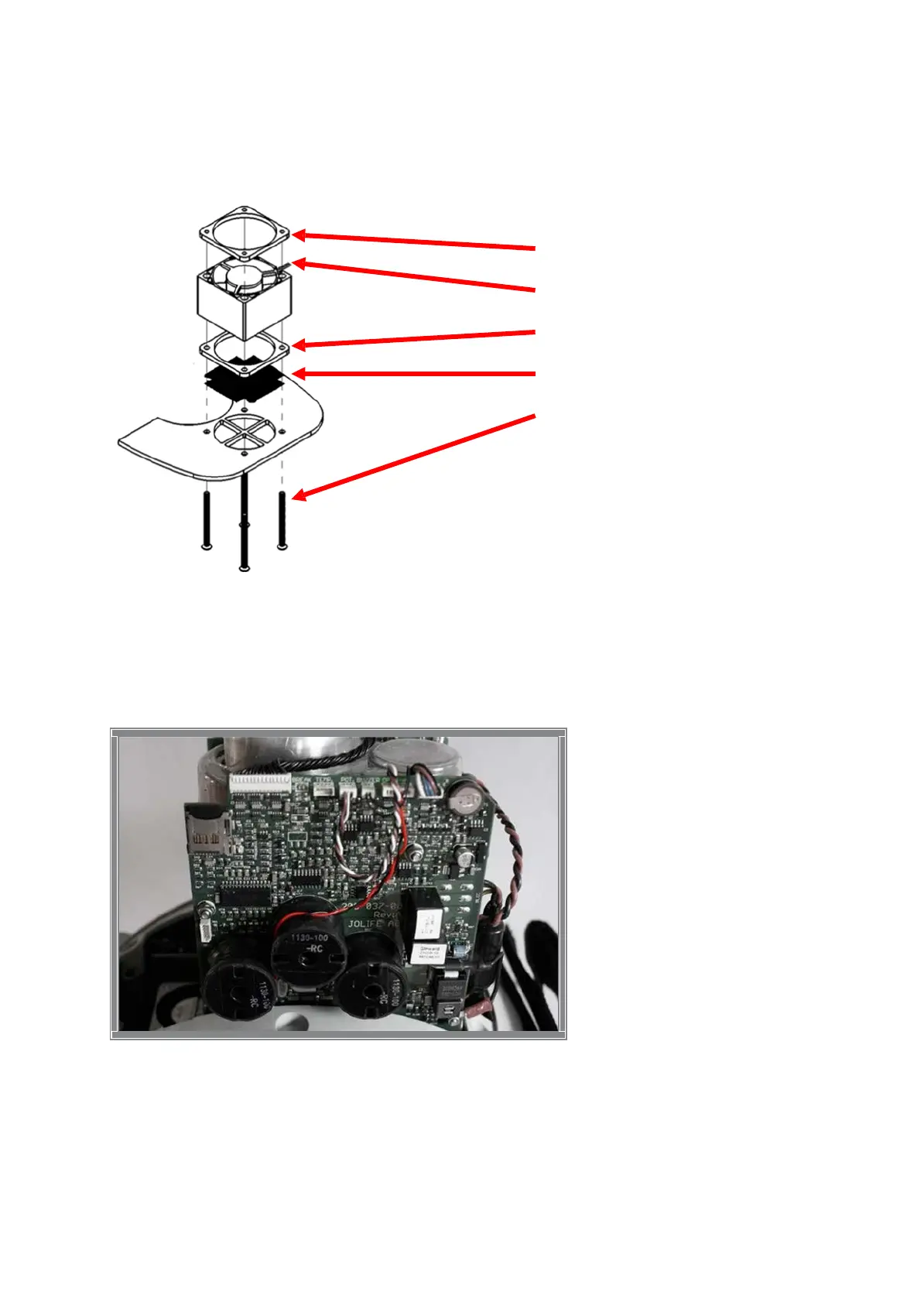

Figure 9.8-1: Fan assembly
Connect the Fan Cable to the “Optional” connector on the Control PCB.
Place the cable between the coils according to pictures below.
LUCAS 2.0 and LUCAS 2.1
