9.9.2. Reassembling

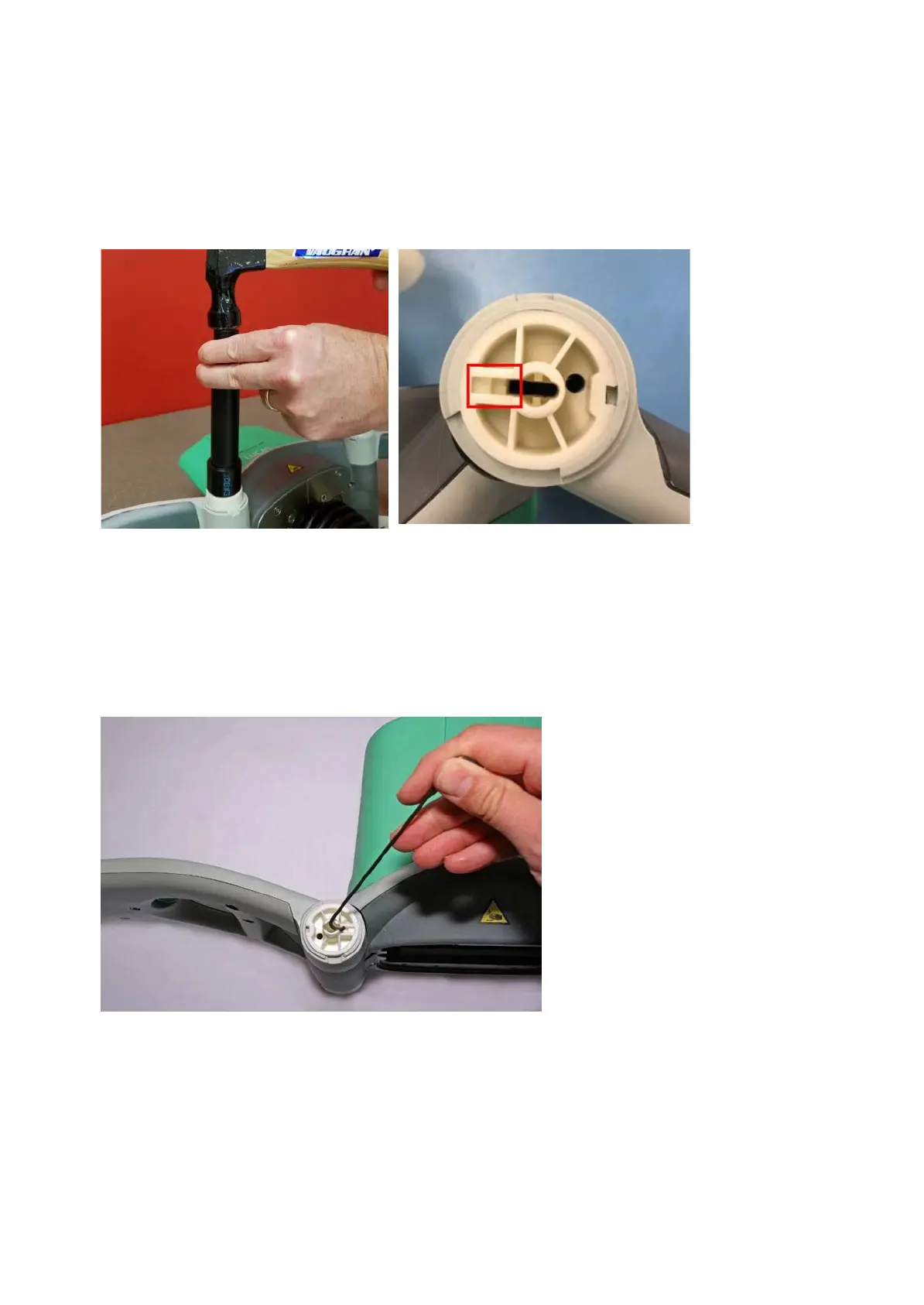

With LUCAS still on the side, place the new support leg pointing straight out from LUCAS. Insert
the Angle Shafts; start with the one that is press fitted into the Main Body, oriented as picture
below. Knock it down so that its surface is on the same level as the Support Leg.
Turn LUCAS over on the other side and insert the non-press fitted Angle Shaft by hand
force until it stops. Ensure that the keyways for the spring are aligned with each other.
Insert the Spring with the rounded end first, all the way down through both Angle Shafts.
Use a Mandrel to fully seat the spring into the Angle Shaft.
On the same level
