LUCAS® Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
57
9.7.4. Test
Perform a Function Check according to chapter 10.
9.8. Replacing the Electric Fan
9.8.1. Dissembling
Lift of the hood by following the instructions in Section 9.1. It’s not necessary to
disconnect the cables.
Disconnect the Fan Cable on the Control PCB, See picture in
Section 9.3.1.

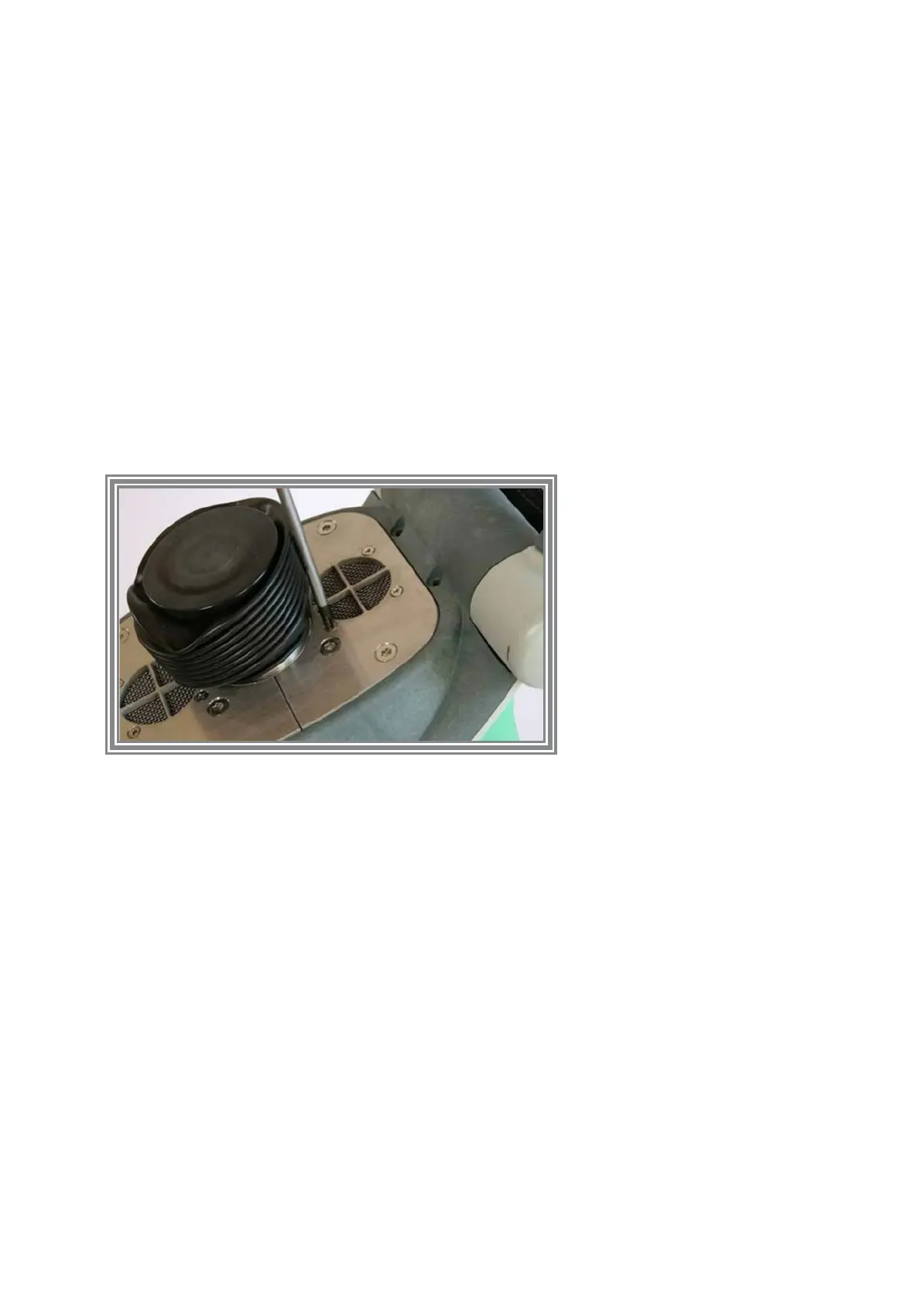

Remove the four screws that hold the Fan, Flat .5x0.8 mm (5.5).
Take off the Threaded plate and lift out the Fan.
