Physio Control lucas 2 - Replacing the Bellows

LUCAS® 2 Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
44
9.2. Replacing the Bellows
Note: there are two older versions of the Bellows
9.2.1. Disassembling
Take off the suction cup

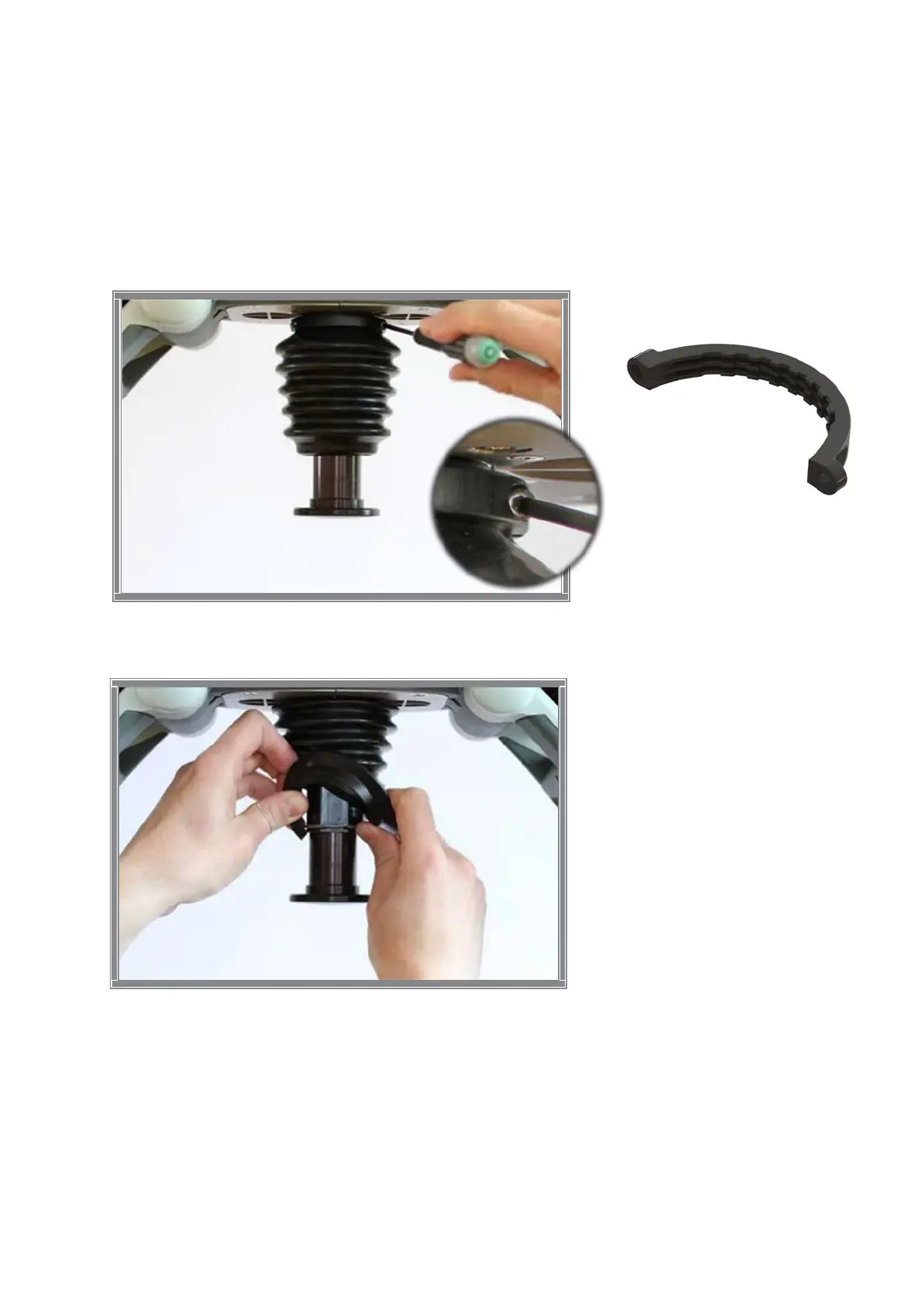

Remove the clamp by removing the two screws Torx 10 (T10) or Torx 20 (T20).
Remove the Bellows ring, start by treading the bellows over the ring, then continue to take
off the ring as described in picture.
Remove the Bellows by treading it over the Piston.
