8.2. Clean the Electric Fan and Mesh Grill
Cover the Carrier Ball Screw hole with a piece of tape to keep dust out of lubrication area.
From the inside of the device, clean the Fan and Mesh Grill with compressed air. Clean dust
from areas on the device that require lubrication. Remove tape from Carrier Ball Screw hole.
Tape

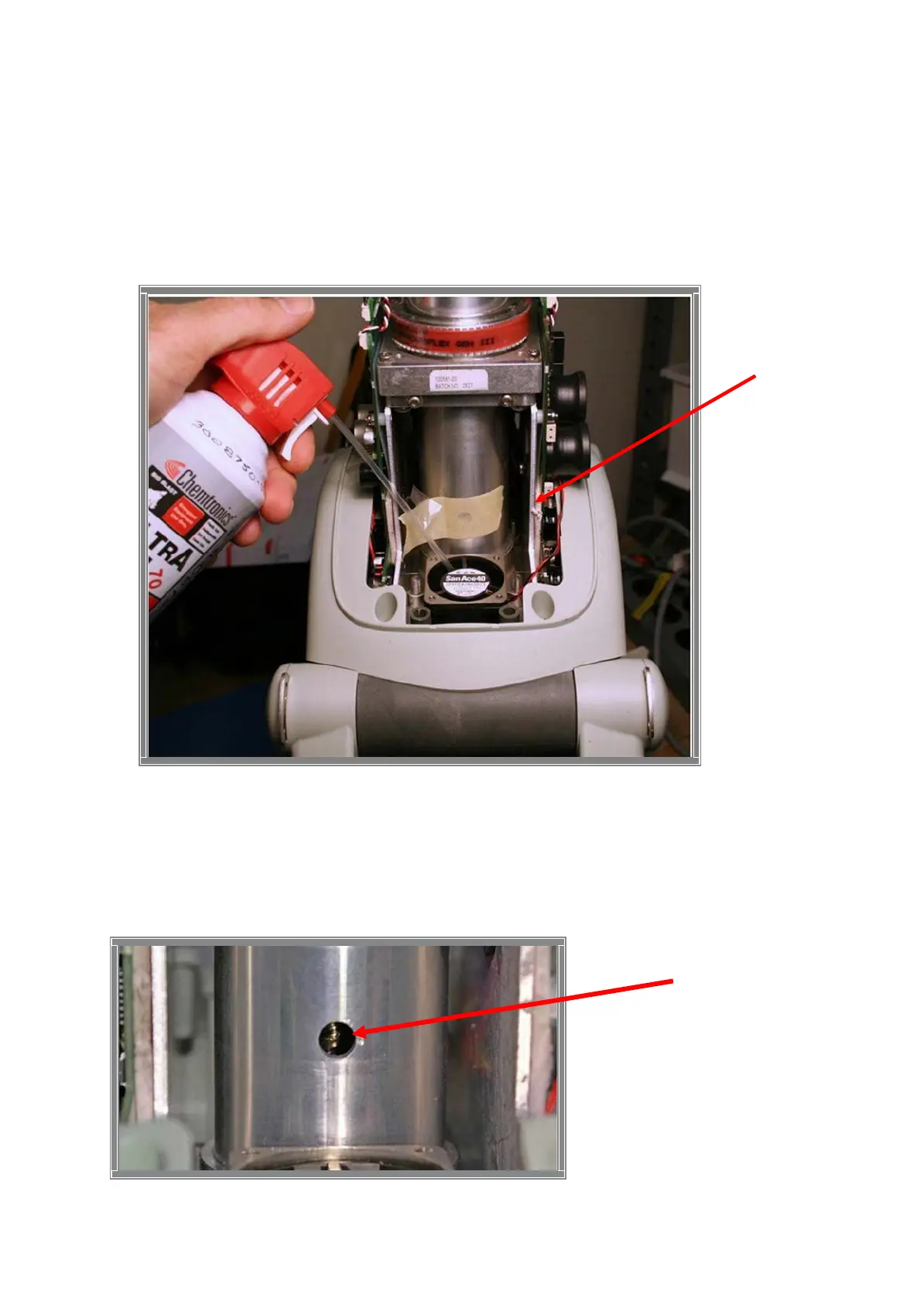

Figure 8.2-1: Clean Fan and Mesh Grill with compressed air
8.3. Compression Module Lubrication
Use only specified Carry Ball Screw Grease (21576-000018)
With the hood off pull down the Piston and the Adjustment Tube until the Carry Ball Screw is
visible in the Lubrication Hole.
Carry Ball
Screw
Figure 8.2-2: Lubrication hole
