LUCAS® Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
70

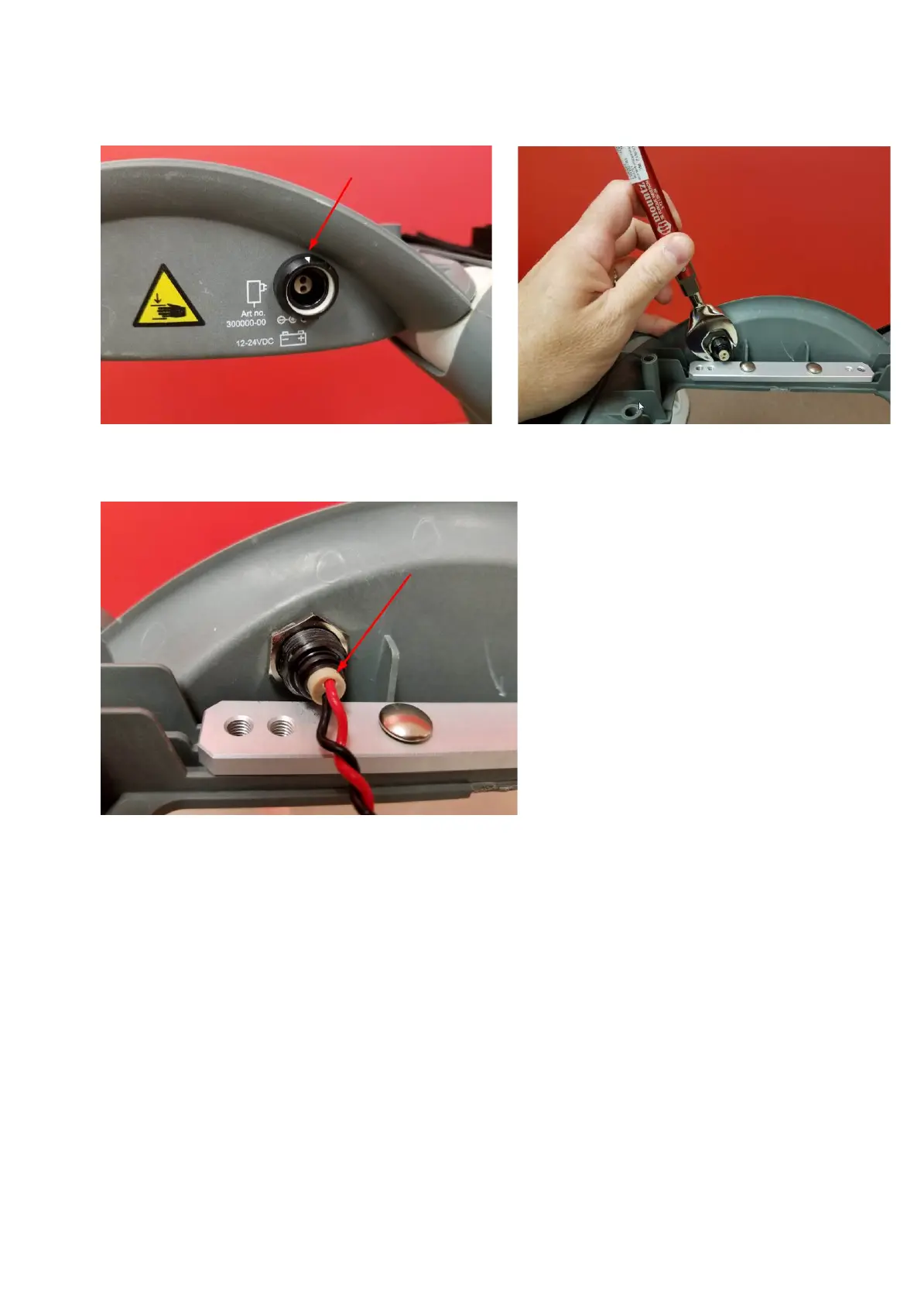

Install the Power Inlet with the white arrow on top.
Install the Power Inlet nut and tighten to 9 in-lbs / 1.0 Nm.
Insert the Power Inlet wires with the red on top.
Install the Main Body Lid and tighten all four Torx 20 screws to 13 in-lbs / 1.5 Nm
Re-install the Controller PCB, Protective PCB, Compression Module, and Hood.
9.11.3. Test
Perform a Function Check according to Section 10.
