LUCAS® Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
63

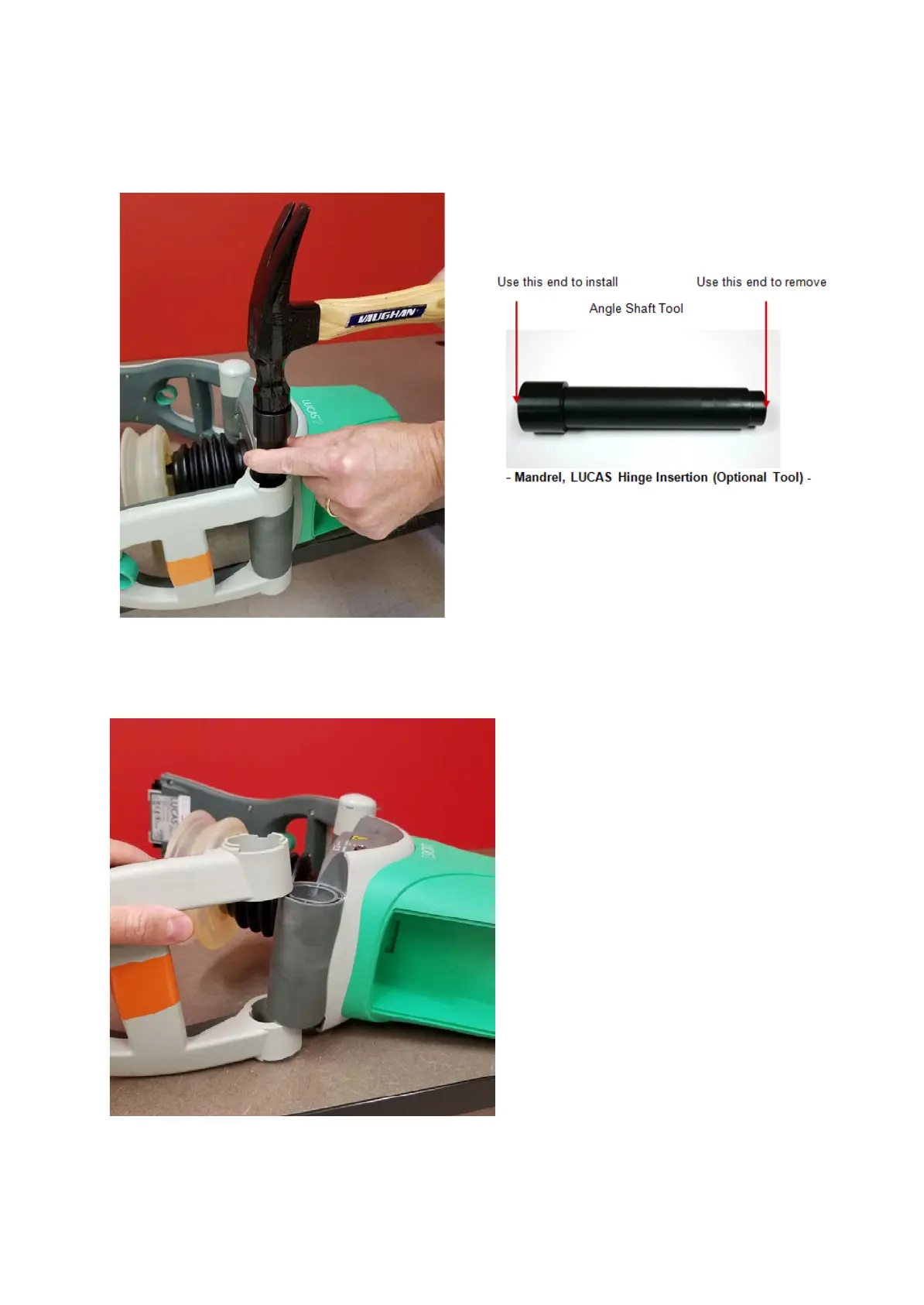

Turn the leg on the other side; and use the Angel Shaft Tool (optional tool) or similar tool with a
Hammer to knock out the press fitted Angle Shaft, which is fitted into the Main Body.
Remove the Support Leg.
