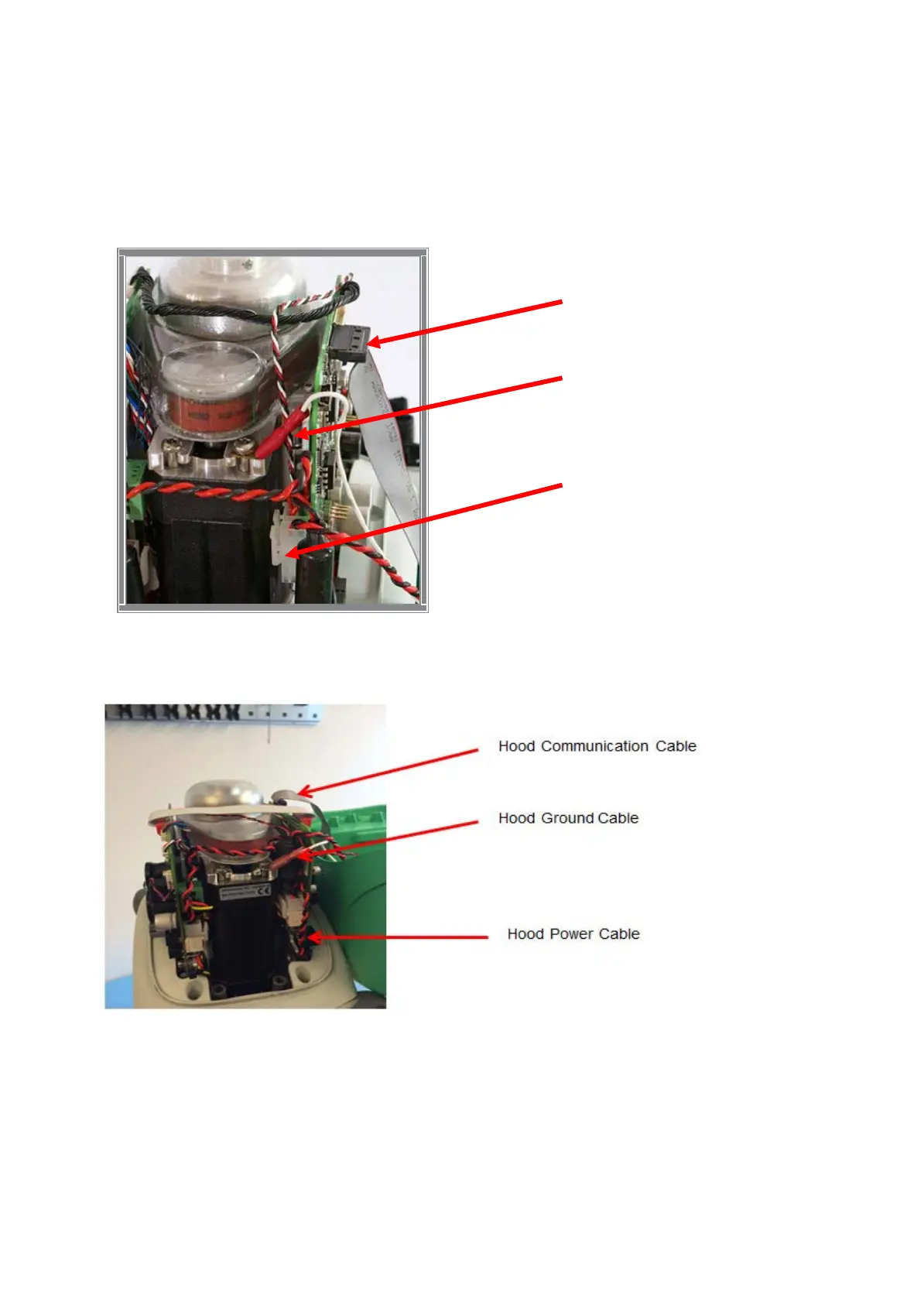

Carefully lift off the Hood and disconnect the three cables between the Hood and the
Protective PCB. Below the LUCAS 2.0 and LUCAS 2.1 is depicted, the Hood
Communication Cable is released perpendicularly to the PCB.
Hood Communication Cable
Hood Ground Cable
Hood Power
Cable
Below the LUCAS 2.2 is depicted, the Hood Communication Cable is released upwards.
