LUCAS® 2 Chest Compression System – Service Manual
3323809-001, © 2017 Physio-Control, Inc.
49

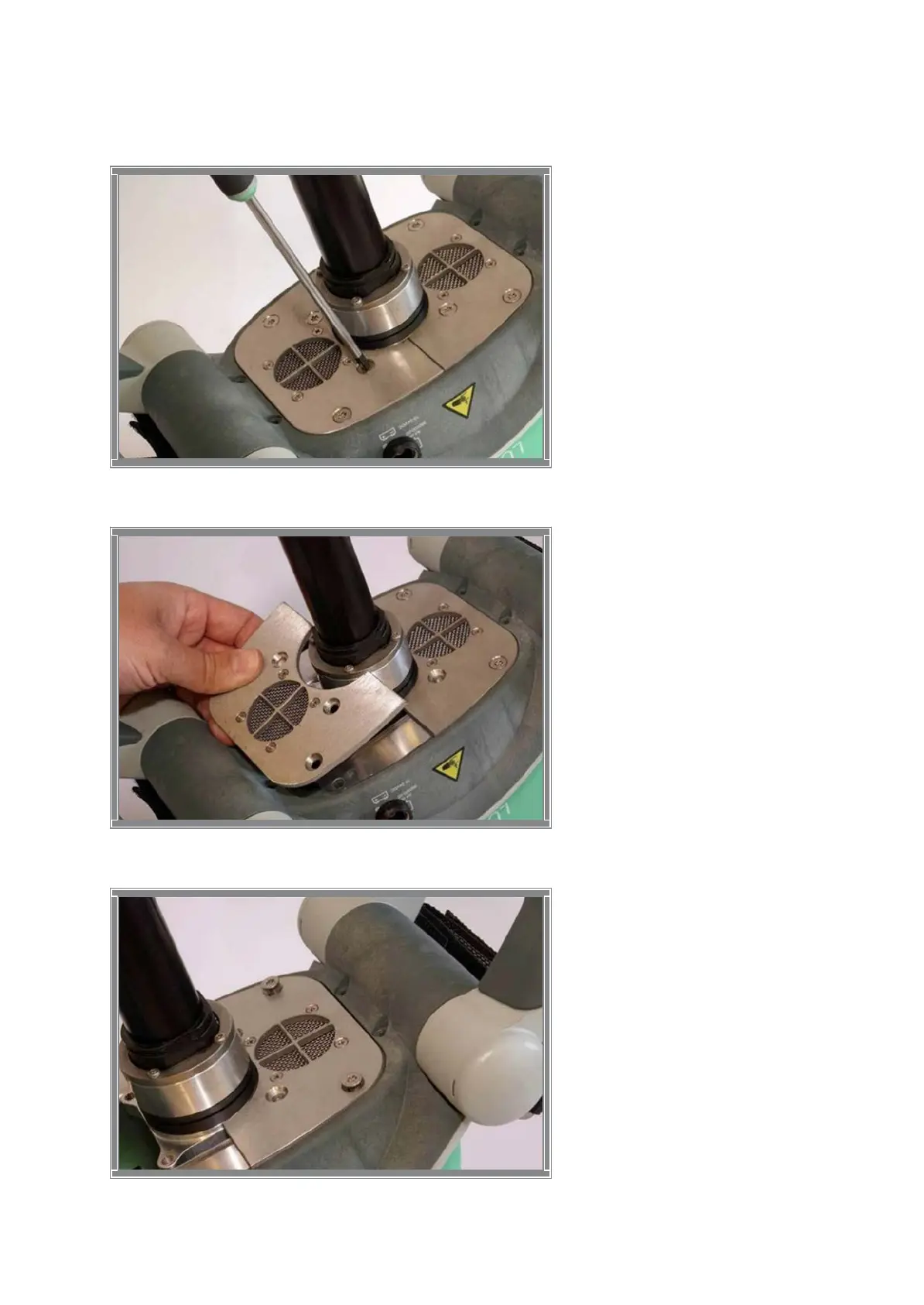

From beneath, remove the four screws that hold the Compression Module Torx 25 (T25).
Remove the two screws holding the Fan Bracket and remove it Torx 25 (T25).
Loosen the two remaining screws without removing them.
To Next Page
