Carefully hammer down the Angle Shaft with a hammer and the Angle Shaft Tool
(Optional Tool) or similar tool. The surface of the Angle Shaft should be on the same
level as the Support Leg. Double check the L-shaped side of the spring to make sure it
is still seated in the Angle Shaft. A mandrel can be used to tap it into place if not fully
seated.
Put the Patient Strap Holder in place (two sides).
Install Shaft Seals if equipped.

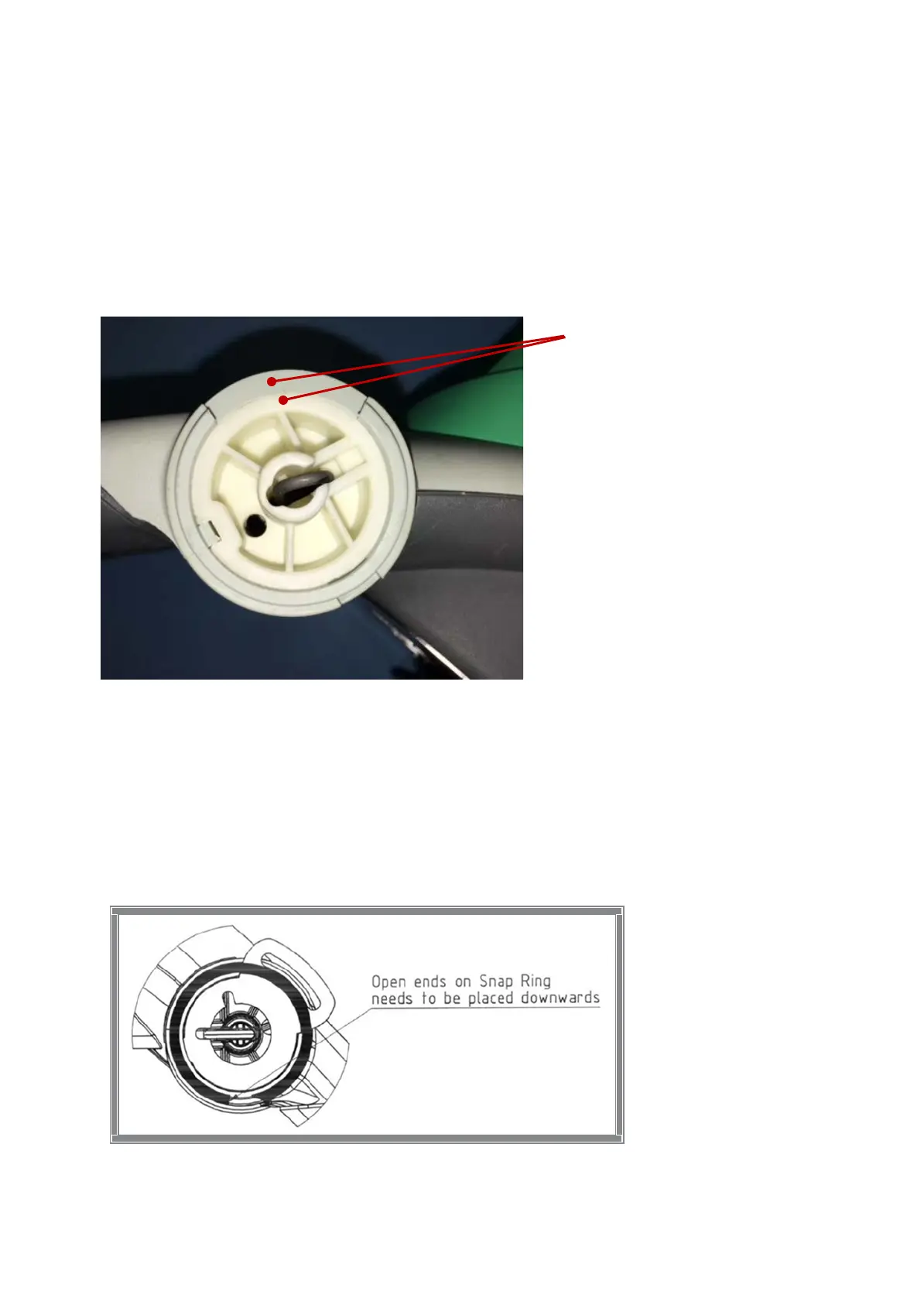

If not equipped with Shaft Seals, install Snap Rings according to the picture below (two
sides), place the open end of the ring downwards.
Install Snap Ring according to picture.
Leg on the same
