User Manual
E727T0005, valid for E-727
BRO, 2019-06-28
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Page 137 / 240
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws

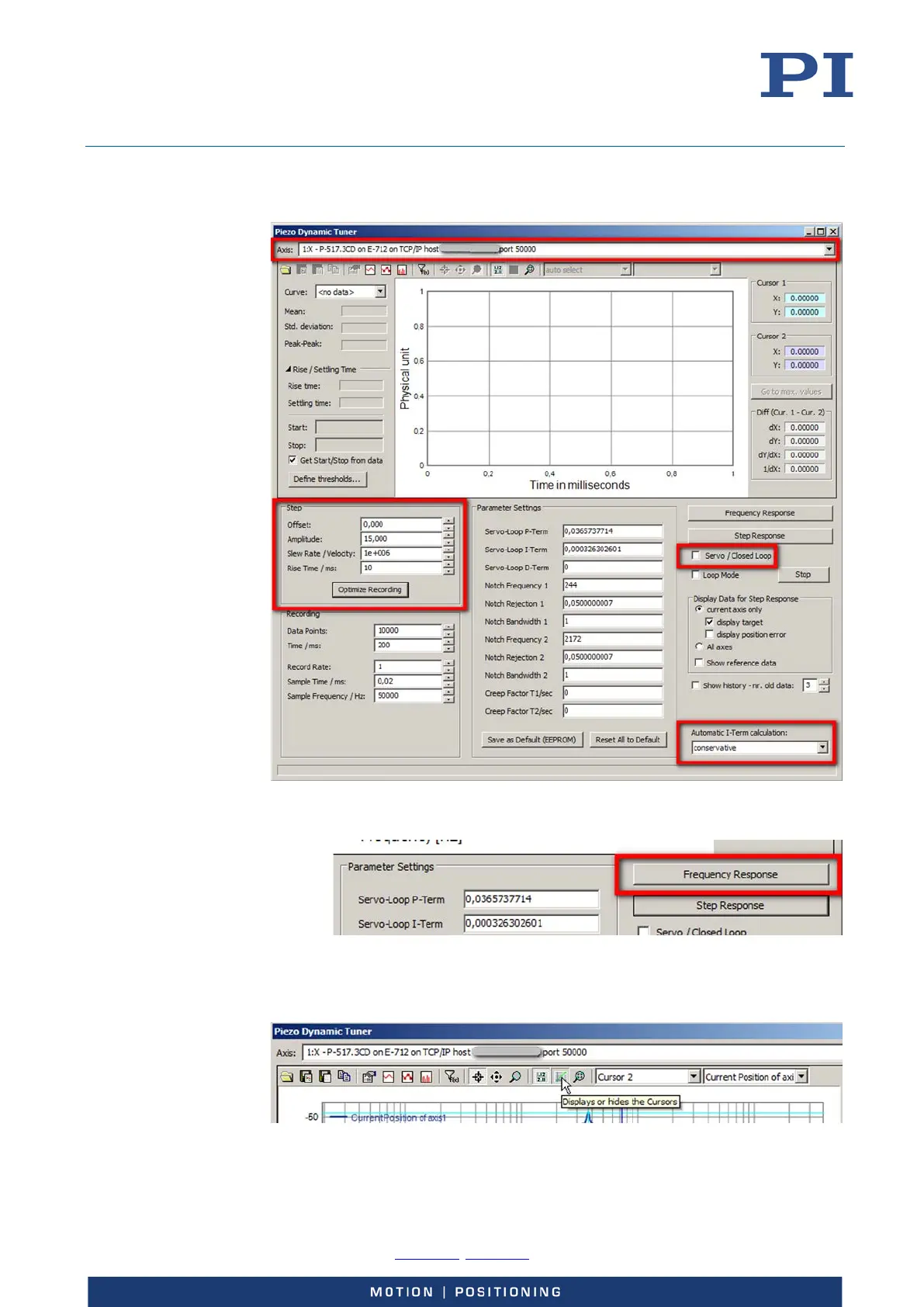

d) Select if and how the Servo-Loop I-Term is to be adjusted automatically when
Notch Frequency 1 is changed (Automatic I-Term calculation).
5.
Perform the frequency response measurement by clicking the Frequency Response
button in the Piezo Dynamic Tuner window.
6.
Identify the resonant frequency in the Piezo Dynamic Tuner window:
a) Show cursors and enable cursor motion using the buttons shown in the figures
below.
