Functional Principles
Block Diagrams
The following block diagrams show the basic structure of the E-727.
For clear readability, the block diagrams do not contain the additional analog inputs and outputs
which are present with E-727.xxxA and E-727.xxxAx models.
Block diagram for models without EtherCAT interface:

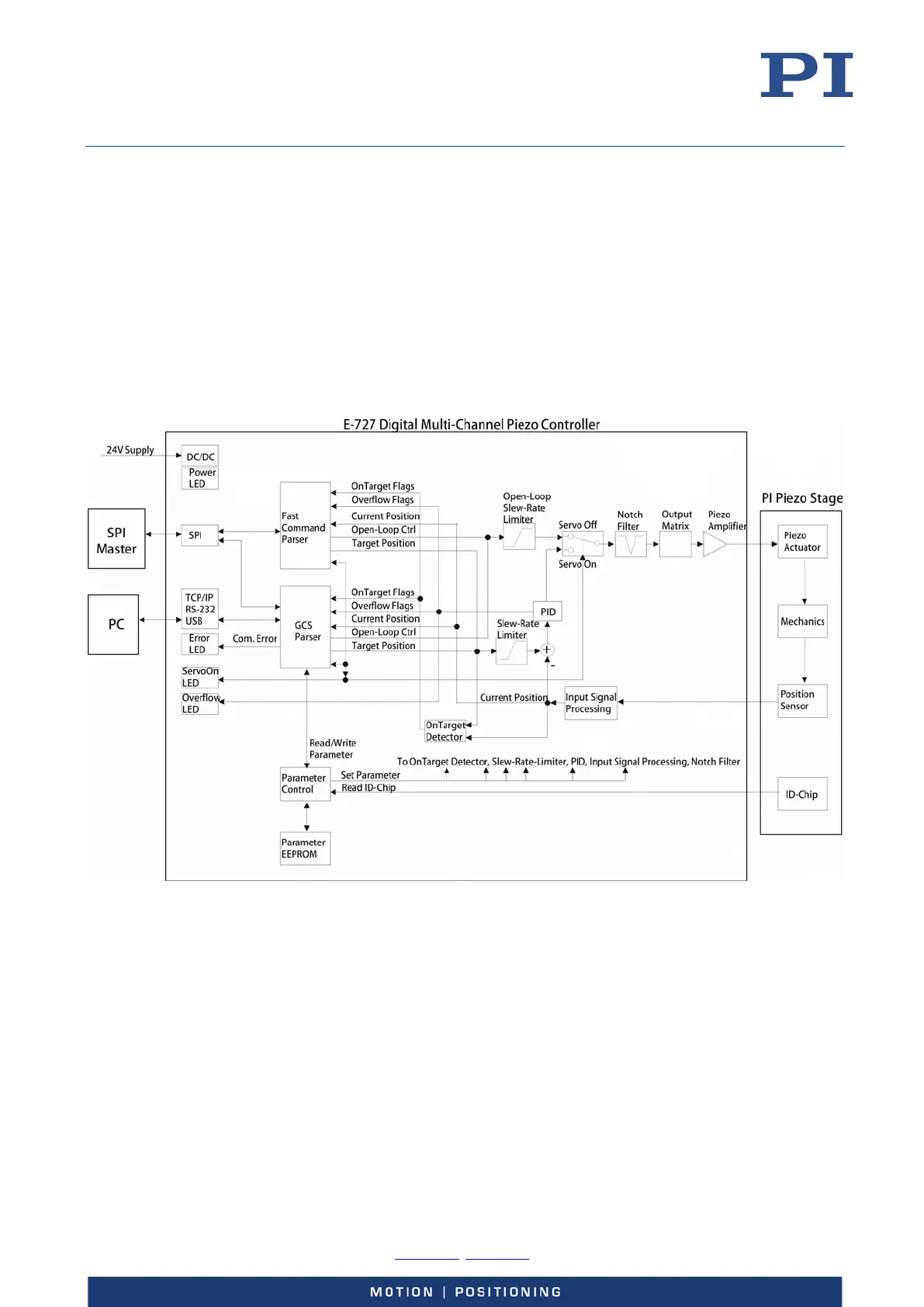

Figure 4: Block diagram of E-727 models without EtherCAT interface
