User Manual
E727T0005, valid for E-727
BRO, 2019-06-28
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Page 222 / 240
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws

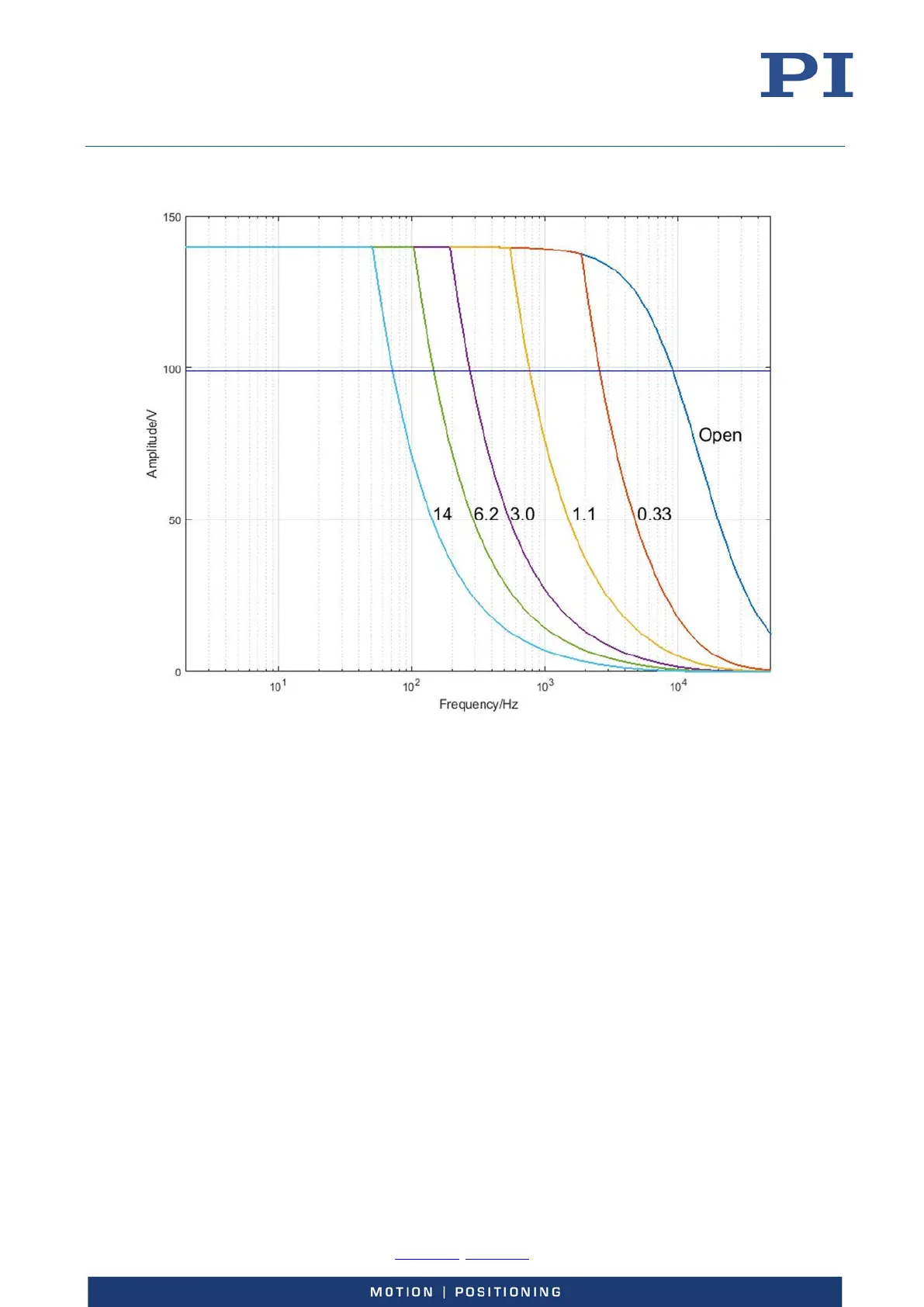

Figure 41: E-727.xxxP, E-727.xxxAP operating limits with various piezo loads (open-loop operation).
Capacitance values in µF
System Requirements
The following system requirements must be met to operate the E-727:
PC with Windows (Windows 7, 8, and 10 (32 bit, 64 bit)) or Linux operating system and at
least 30 MB free memory
Communication interface and corresponding cable:
− Free COM port on the PC (via RS-232 null-modem cable) or
− USB socket on the PC (via USB cable, type A to type B) or
− A free access point on a network to which the PC is connected, or an Ethernet card
in the PC (via straight-through or cross-over network cable)
E-727 with power supply
The mechanics (piezo stage) with which the E-727 was delivered as a pre-configured system ,
or any suitable Physik Instrumente mechanics with ID-chip
Product CD with PC software
