PI E-727 User Manual

User Manual
E727T0005, valid for E-727
BRO, 2019-06-28
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Page 233 / 240
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws

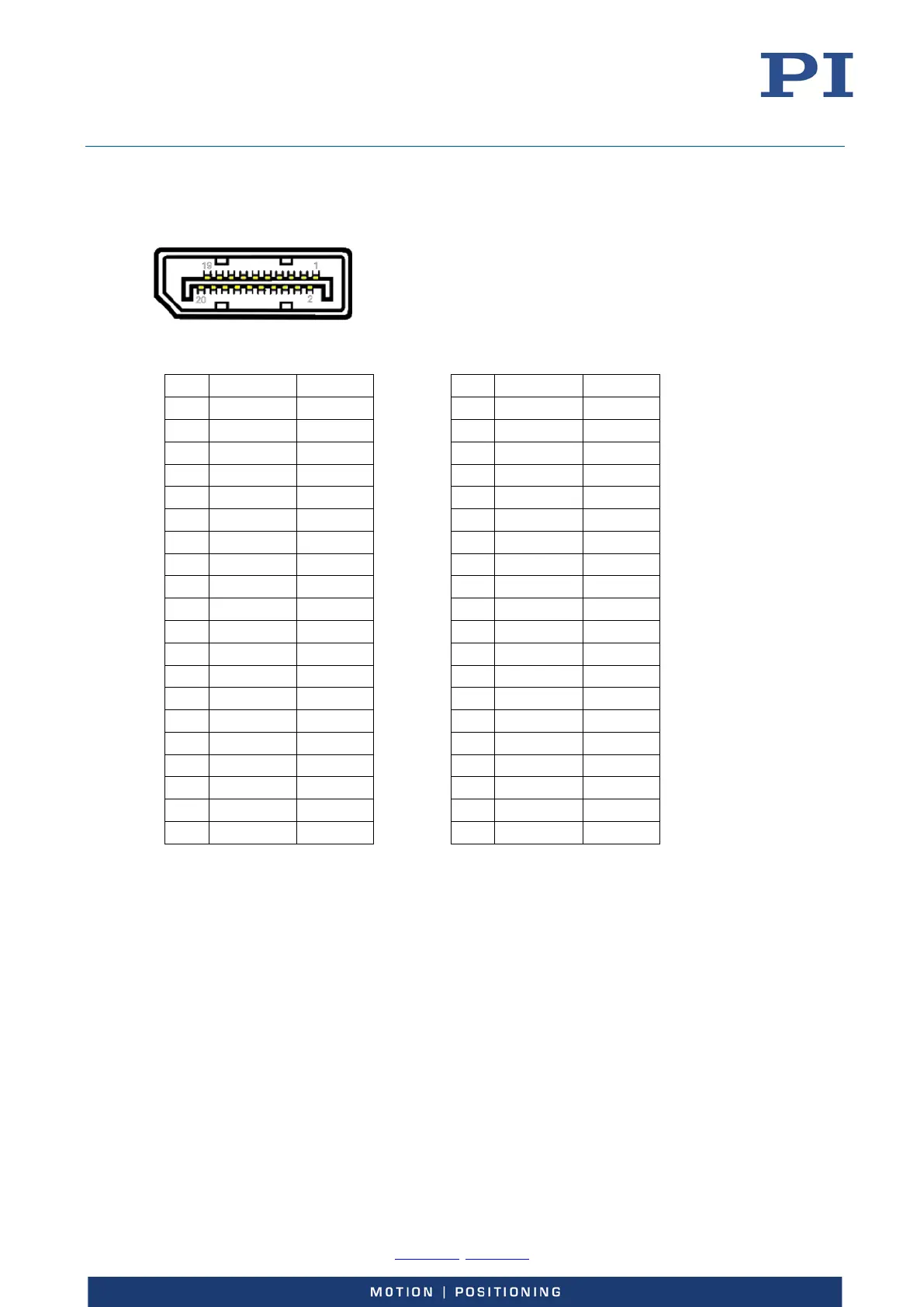

SPI Interface
„SPI“ – DisplayPort (VESA), lockable
E-727 (SPI slave):
Pin Signal Name Direction
20 N.C.
19 LDAT- Input
18 LDAT+ Input
17 CS- Input
16 GND
15 CS+ Input
14 GND
13 GND
12 SCLK+ Input
11 GND
10 SCLK- Input
9 MOSI+ Input
8 GND
7 MOSI- Input
6 MISO+ Output
5 GND
4 MISO- Output
3 DCLK+ Output
2 GND
1 DCLK- Output
Host (SPI master):
Pin Signal Name Direction
20 N.C.
19 LDAT- Output
18 LDAT+ Output
17 CS- Output
16 GND
15 CS+ Output
14 GND
13 GND
12 DCLK- Input
11 GND
10 DCLK+ Input
9 MISO- Input
8 GND
7 MISO+ Input
6 MOSI- Output
5 GND
4 MOSI+ Output
3 SCLK- Output
2 GND
1 SCLK+ Output
