User Manual

E727T0005, valid for E-727

BRO, 2019-06-28

Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Page 232 / 240

Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws

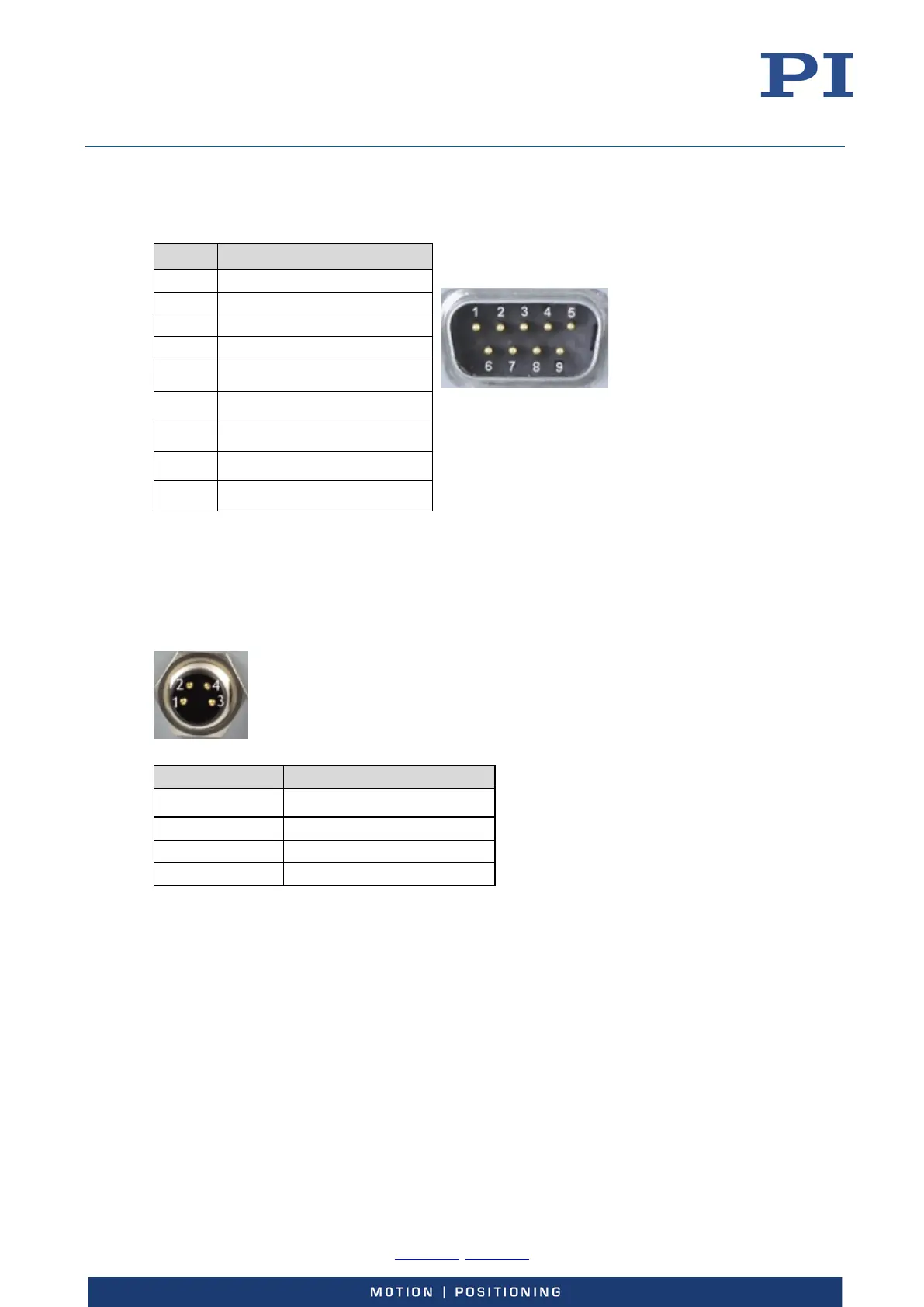

RS-232

„RS-232“ – D-Sub 9 (m)

Function

1 nc

2 RXD receive data

3 TXD send data

4 nc

5 DGND ground

6 nc

7 RTS Hardware handshake, output

8 CTS Hardware handshake, input

9 nc

Power Supply 24 V

„24 VDC / 3.5A“ - Phoenix M8 panel plug, 4-pin, male

Pin Function

1 GND (power)

2 GND (power)

3 Input: 24 V DC

4 Input: 24 V DC

K050B0003 Adapter, Barrel Connector Side

Center: +24 V

Outer conductor: GND
