E-727.IO8 Adapter Cable for Analog I/O
The E-727.IO8 adapter cable is available as accessory (p. 19). The cable splits the input and output
lines of the Analog I/O socket (p. 228) up into 8 BNC connectors.

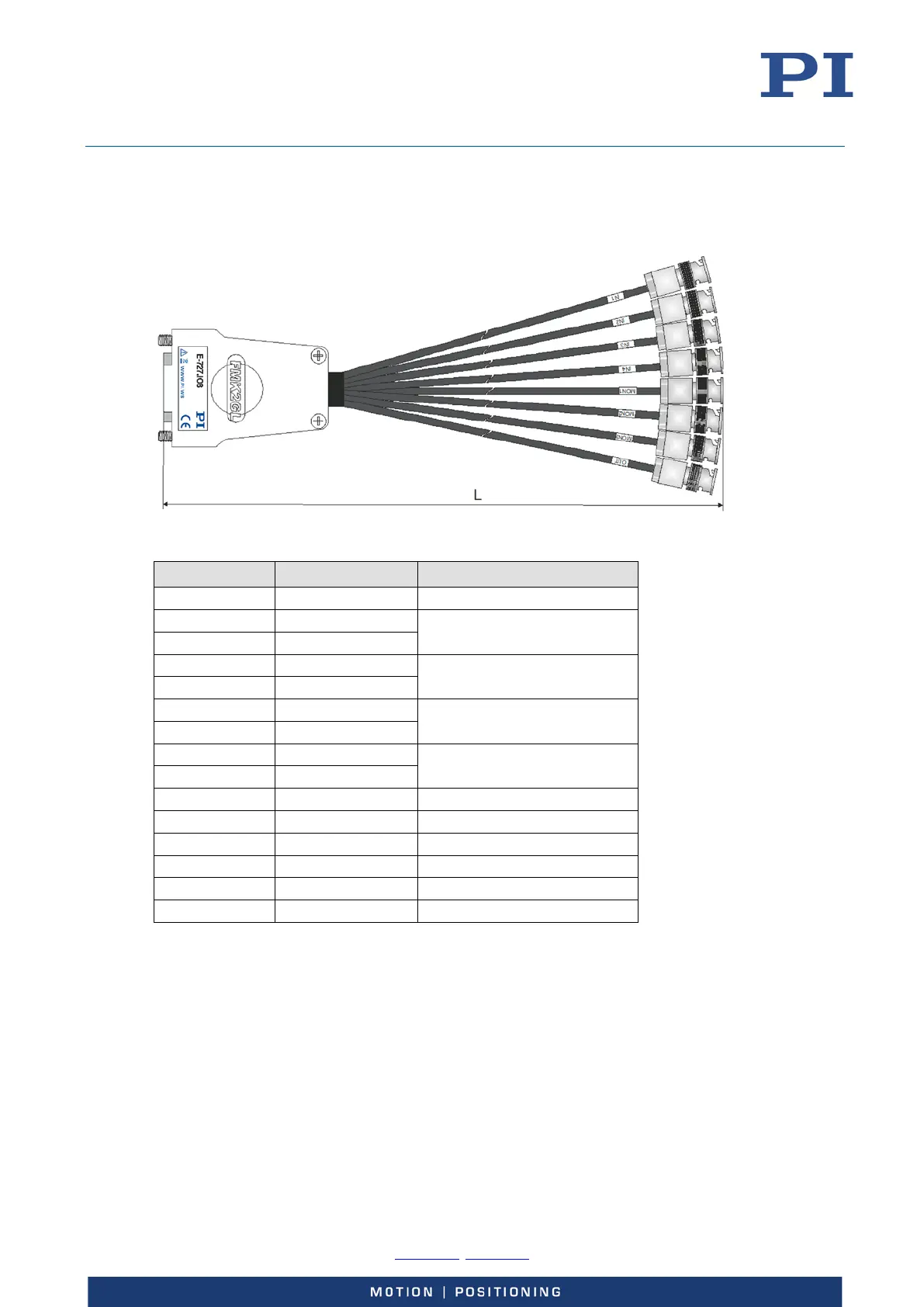

Figure 45: E-727.IO8 adapter cable, D-Sub 15 (m) to 8 x BNC, L = 0.4 m (tolerance +5 cm)
D-Sub 15 (m)
Signal
Cable labeling
1 GND -
9 GND IN1
2 +Analog In 1
10 GND IN2
3 +Analog In 2
11 GND IN3
4 +Analog In 3
12 GND IN4
5 +Analog In 4
13 GND -
6 GND -
14 Sensor Monitor 1 Monitor1
7 Sensor Monitor 2 Monitor2
15 Sensor Monitor 3 Monitor3
8 Analog Out 1 OUT
