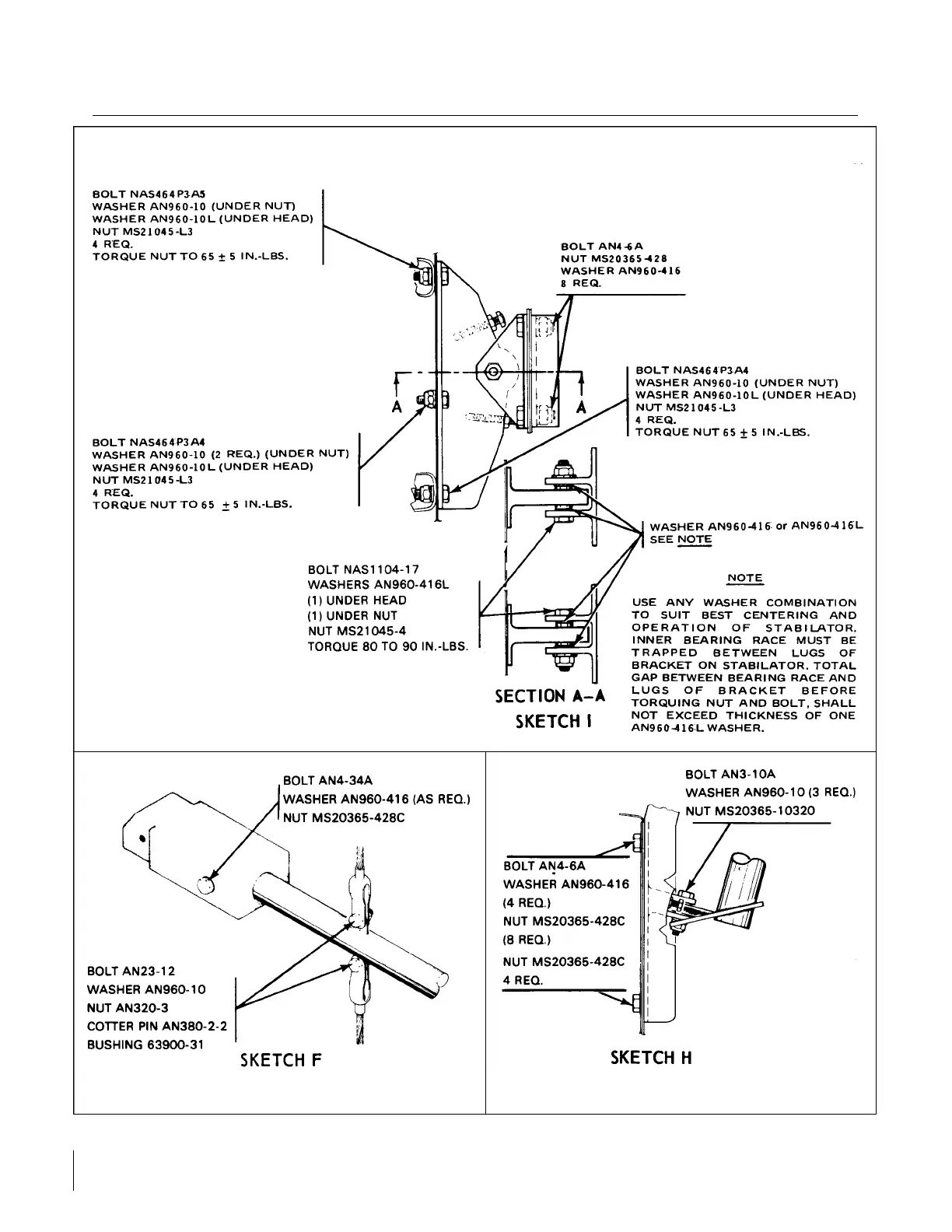

Figure 4-4. Empennage Group Installation (cont)

Revised: 11/21/80

1E6

* CHEROKEE ARROW III SERVICE MANUAL

STRUCTURES
