Planmeca ProMax User Manual

MAIN PARTS
10 Planmeca ProMax 3D Max with ProTouch
User’s Manual
6.3.2 Chin supports

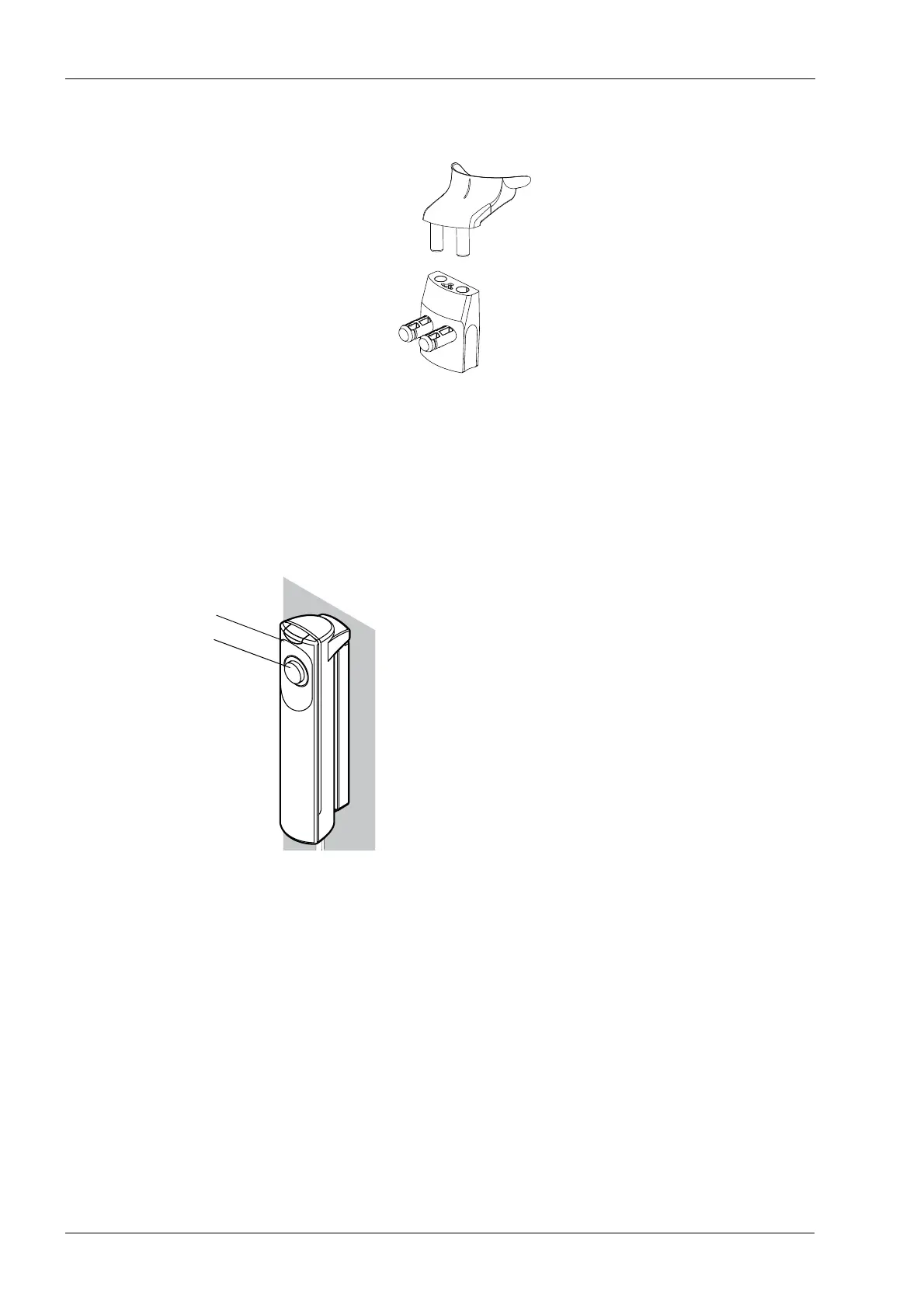

6.4 Exposure switch
The exposure switch can be mounted on the wall, or it can
be hung from the hook provided on the stationary column
top if a protected area is within reach.
Green lights flash on the exposure button and on the
touch screen when the X-ray system is getting ready for
an exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
During exposure yellow radiation warning lights illuminate
on the exposure switch and on the touch screen. They
indicate that the X-ray unit is generating radiation.
Bite1.eps
Chin1.eps
Chin cup
Adapter
_2.eps
1) Flashing green =
Getting ready
2) Continuous green =
Ready
3) Yellow = Radiation
Exposure switch
Exposure button

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
