6.6 Touch screen
NOTE The options shown on the touch screen depend on the
unit configuration. The X-ray unit can be upgraded
with new programs and features, contact your dealer
for further information. The views and values shown in
this manual are only examples.
NOTE The illustrations shown on the touch screen are based
on approximate patient anatomy. The actual volume
position depends on the individual anatomy of the
patient.
NOTE Never allow patients to touch the screen when they are
positioned in the X-ray unit. Touching the screen
during exposure will stop the imaging process.
You can use the buttons at the bottom of the main screen
to change the appearance of the main view.
• To return to the main view from another screen, select
the home button at the top right corner of the screen.
• To make a selection on the touch screen, simply touch
a button or a field with your finger or a soft stylus. The
selected option is highlighted. To deselect an option,
touch the button or field again (or select an other
option if available).
NOTE Do not use sharp objects to operate the touch screen.

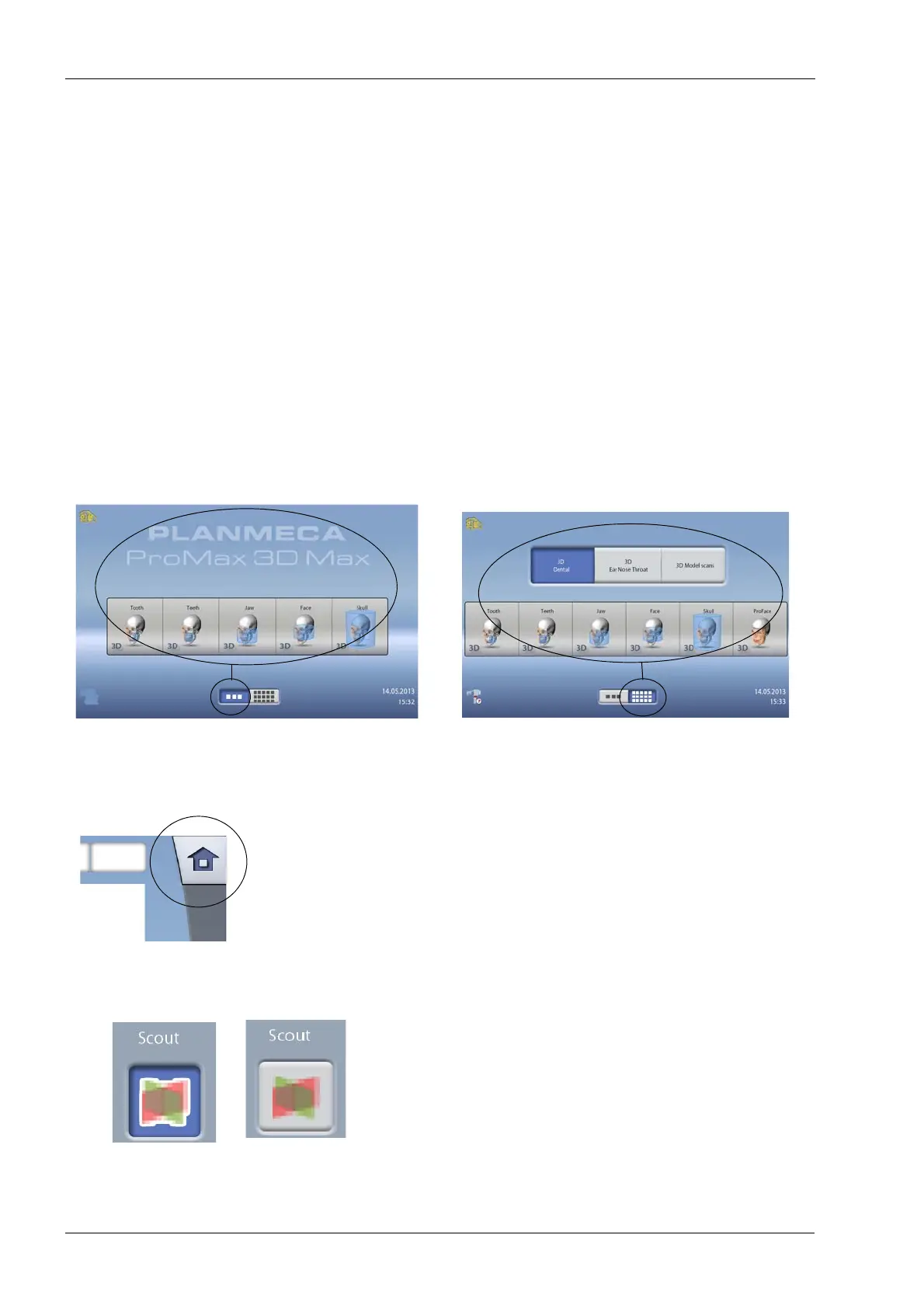

Show both program bars
Show ProMax model and
Left button
Right button
up to five most frequently used programs
(with most frequent first)
(default view)
Home button =
Back to main view
Function selected Function not selected
To Next Page
