3D MODEL EXPOSURE
46 Planmeca ProMax 3D Max with ProTouch
User’s Manual

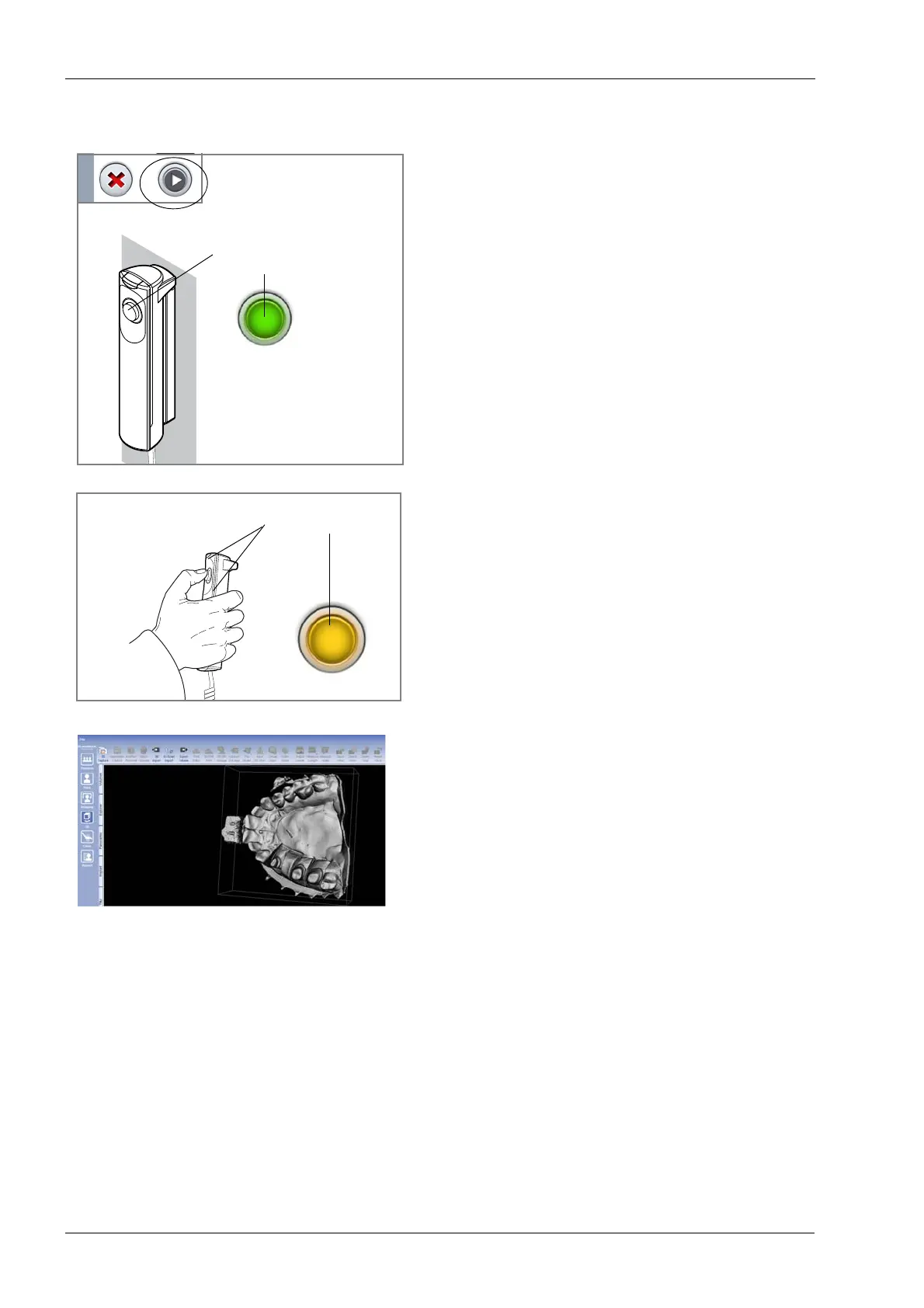

10.2.2 Taking an exposure
1. Select the forward button on the touch screen.
Green lights flash on the touch screen and exposure
button when the X-ray system is getting ready for an
exposure. The green lights stop flashing and stay on
continuously when the X-ray system is ready for an
exposure.
2. Press and hold down the exposure button for the entire
duration of the exposure.
During exposure yellow radiation warning lights
illuminate on the exposure switch and on the touch
screen, and you hear a radiation warning tone.
Additionally, a radiation warning symbol is shown on
the touch screen. Note that the exposure lasts longer
than a 3D patient exposure.
3. The image is shown on the computer screen.
NOTE The Romexis function Model Capture creates surface
models (instead of voxel data images).
Forward
button
ll6_2.eps
Green lights
Flashing green =
Getting ready
Continuous green =
Ready
_2eps
Yellow lights
