INTAKE / EXHAUST SYSTEM

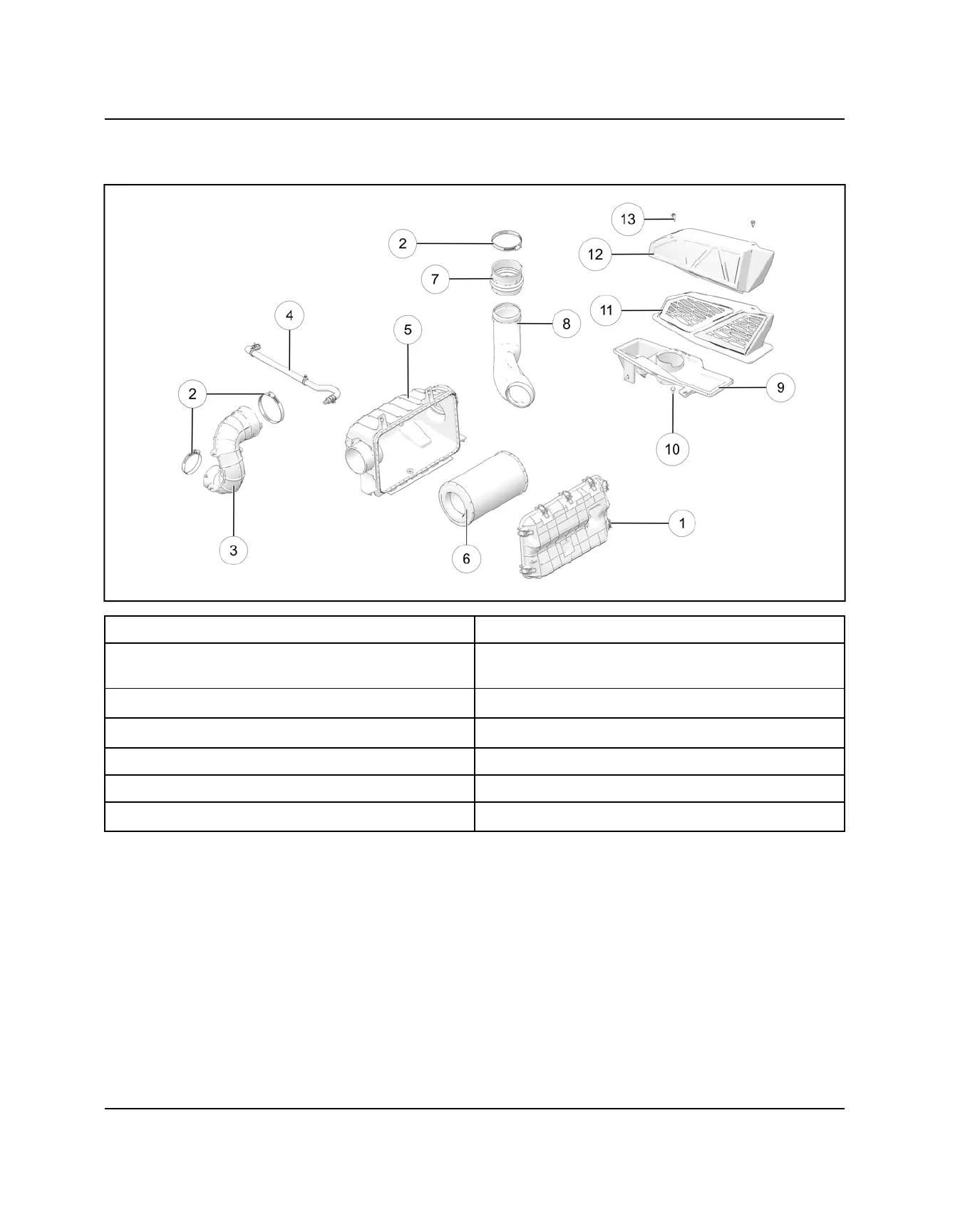

ENGINE INTAKE ASSEMBLY VIEW
q
Air Box Latch
i
Inlet Air Box Duct
w
Intake Clamp
35 in-lbs (3 Nm)
o
Lower Intake Bezel
e
Engine Intake Hose
a
Lower Intake Bezel Mounting Fastener
r
Engine Vent Hose
s
Upper Intake Bezel
t
Air Box
d
Intake Bezel Deflector
y
Air Filter
f
Push-Rivet
u
Duct Coupler
