STEERING SYSTEM

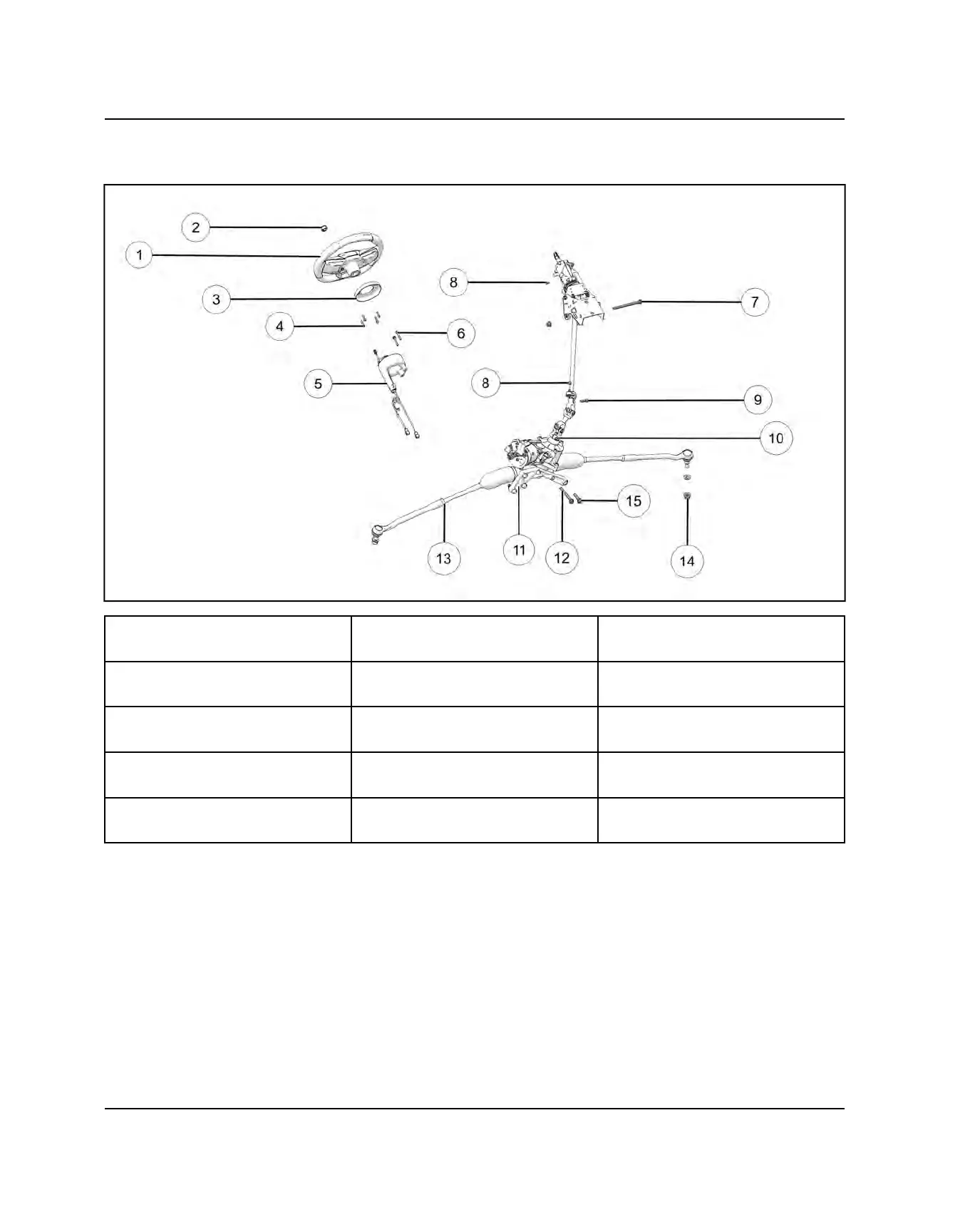

STEERING SYSTEM ASSEMBLY VIEW
q
Steering Wheel
y
Coil Assembly Fasteners
27 in-lbs (3 Nm
s
Steering Rack Mounting Plate
w
Steering Wheel Nut
66 ft-lbs (90 Nm)
u
Tilt Bracket Fasteners
33 ft-lbs (45 Nm)
d
Mounting Plate Inner Fasteners
44 ft-lbs (60 Nm)
e
Steering Column Cover
i
Steering Shaft Bearing Fasteners
22 ft-lbs (30 Nm)
f
Tie Rod Jam Nut
89 ft-lbs (120 Nm)
r
Steering Column Cover Fasteners
27 in-lbs (3 Nm
o
Upper Steering Shaft Pinch Bolt
22 ft-lbs (30 Nm)
g
Ball Joint Retaining Nut
52 ft-lbs (70 Nm) + 90°
t
Coil Assembly
a
Lower Steering Shaft Pinch Bolt
26 ft-lbs (35 Nm) + 90°
h
Mounting Plate Outer Fasteners
44 ft-lbs (60 Nm)
UPPER STEERING SHAFT
REPLACEMENT
REMOVAL
1. Park vehicle on a flat, level surface.
