TRANSMISSION INSTALLATION

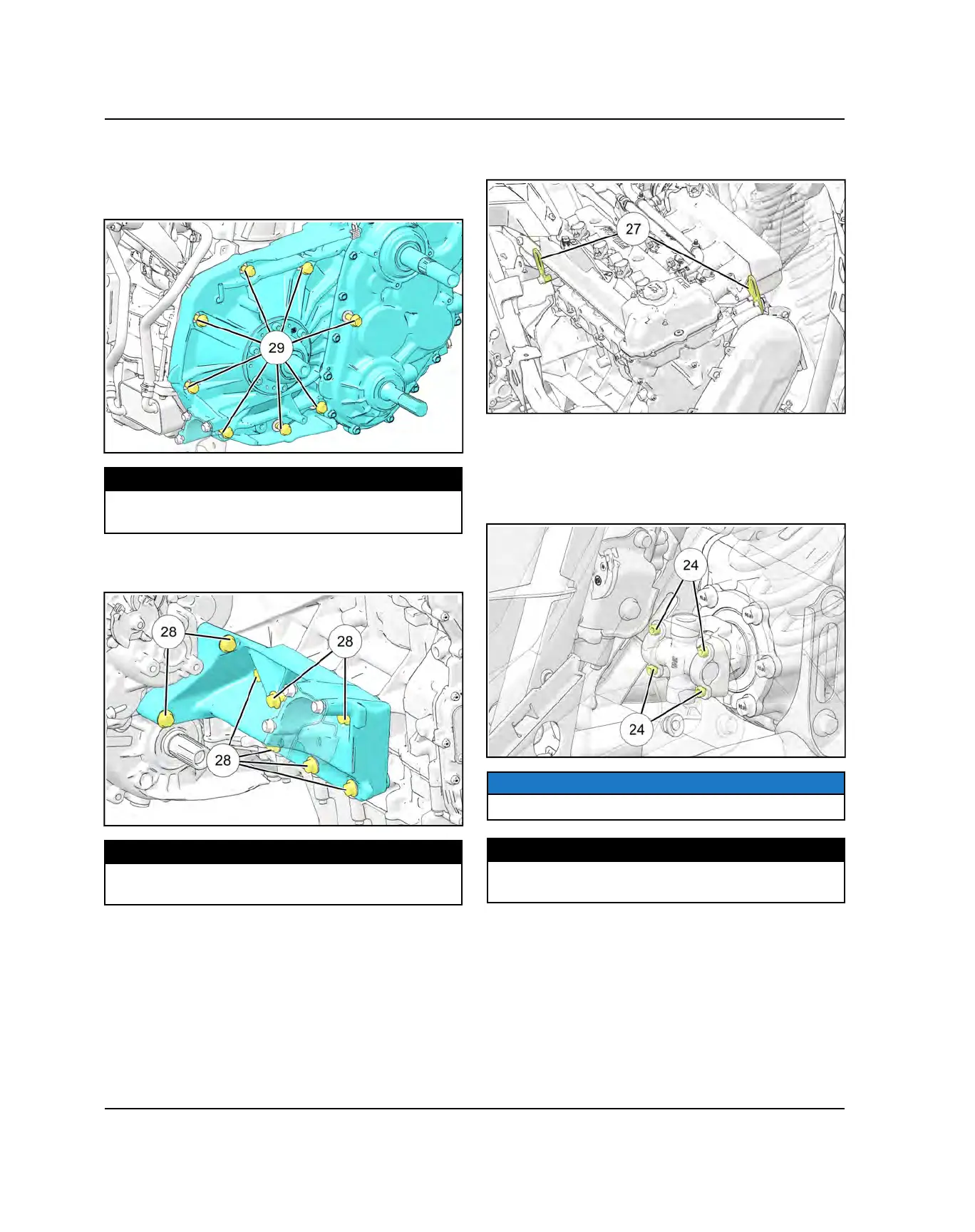

1. Align transmission with the engine. Install eight
fasteners
2(
into the transmission. Torque fasteners
to specification.
TORQUE
Transmission-to-Engine Mounting Fasteners:
Step 1: 11 ft-lbs (15 Nm)Step 2: 44 ft-lbs (60 Nm)
2. Install the engine mount. Install eight fasteners
2*
into
the engine mount. Torque fasteners to specification.
TORQUE
Engine Mount Fasteners:
Step 1: 26 in-lbs (3 Nm)Step 2: 33 ft-lbs (45 Nm)
3. Attach engine hoist to lift brackets
2&
. Lower engine
and transmission as an assembly into the vehicle.
4. With the engine/transmission assembly hanging in
place, install front and rear prop shafts onto the
transmission output shafts.
5. Install rear prop shaft onto rear gearcase. Install four
fasteners
2$
and torque fasteners to specification.
NOTICE
Prop shaft hidden for image clarity.
TORQUE
Rear Prop Shaft Coupling Fasteners:
11 ft-lbs (15 Nm)
TRANSMISSION
