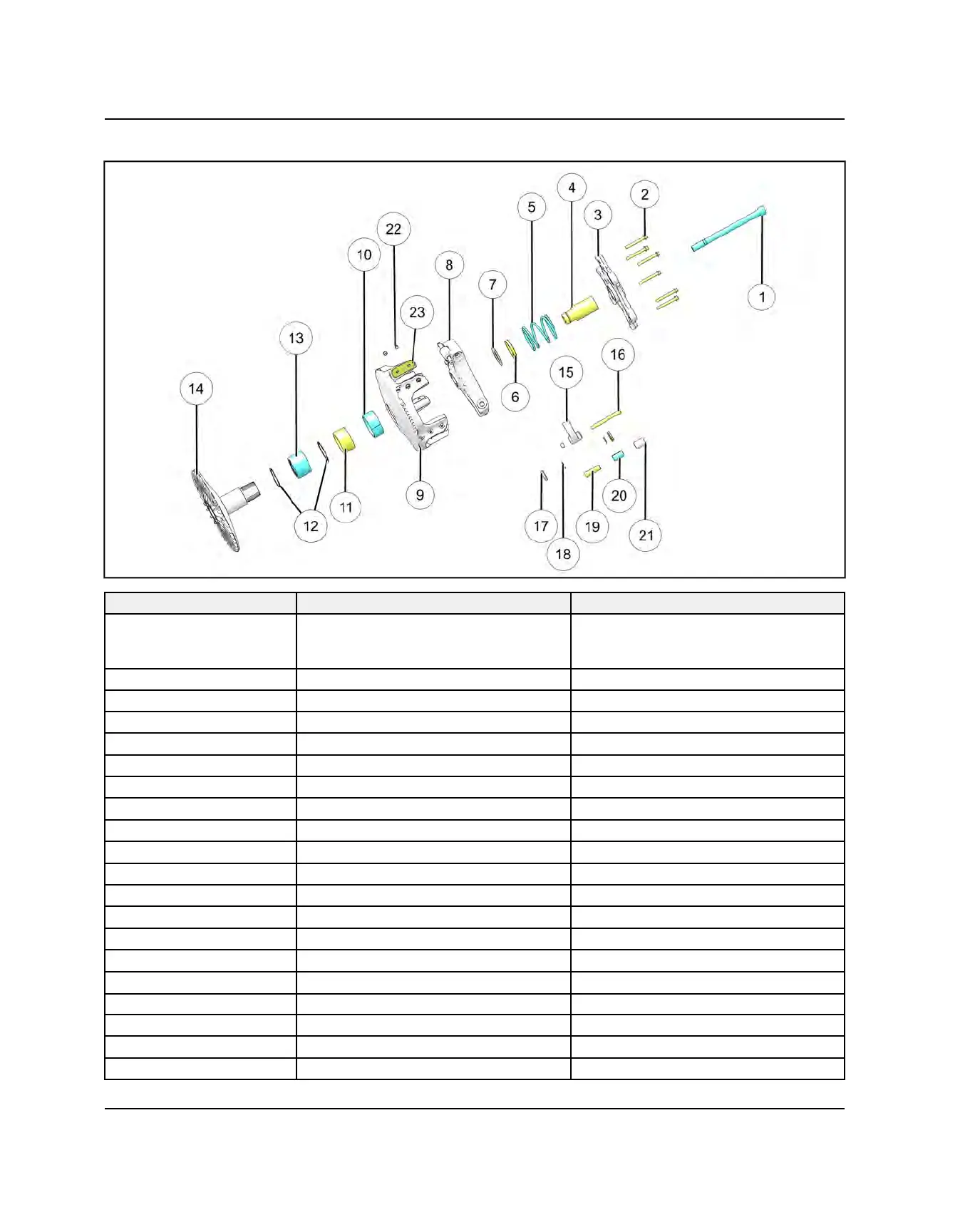

DRIVE CLUTCH ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Clutch Bolt Step 1: 140 ft-lbs (190 Nm)
Step 2: Loosen two full turns (720°)
Step 3: 118 ft-lbs (160 Nm)
w
Drive Clutch Cover Bolts 15 ft-lbs (21 Nm)
e
Drive Clutch Cover
-
r
Outer Clutch Post
-
t
Spring
-
y
Belleville Washer
Dome side facing outer post
u
Washer
-
i
Spider
-
o
Sheave Assembly
-
a
Bushing
-
s
Clutch Spacer
-
d
Washer
-
f
Needle Bearing
-
g
Stationary Sheave
-
h
Shift Weight
-
j
Shift Weight Fastener 20 in-lb (2 Nm)
k
Clutch Button
-
l
Washer
-
1(
Spider Pin
-
2)
Bushing
-
