RADIUS ROD REPLACEMENT
REMOVAL
The following procedure details upper and lower radius
rod removal and replacement on one side of the vehicle.
Repeat the following steps to remove the radius rods
from the opposite side.
1. Safely raise and support vehicle by main frame.
WARNING
Serious injury or death may result if machine tips or
falls. Be sure machine is secure before beginning this
service procedure.
2. Remove the rear wheel nuts and rear wheel.
3. Identify / mark radius rods “upper” and “lower”.

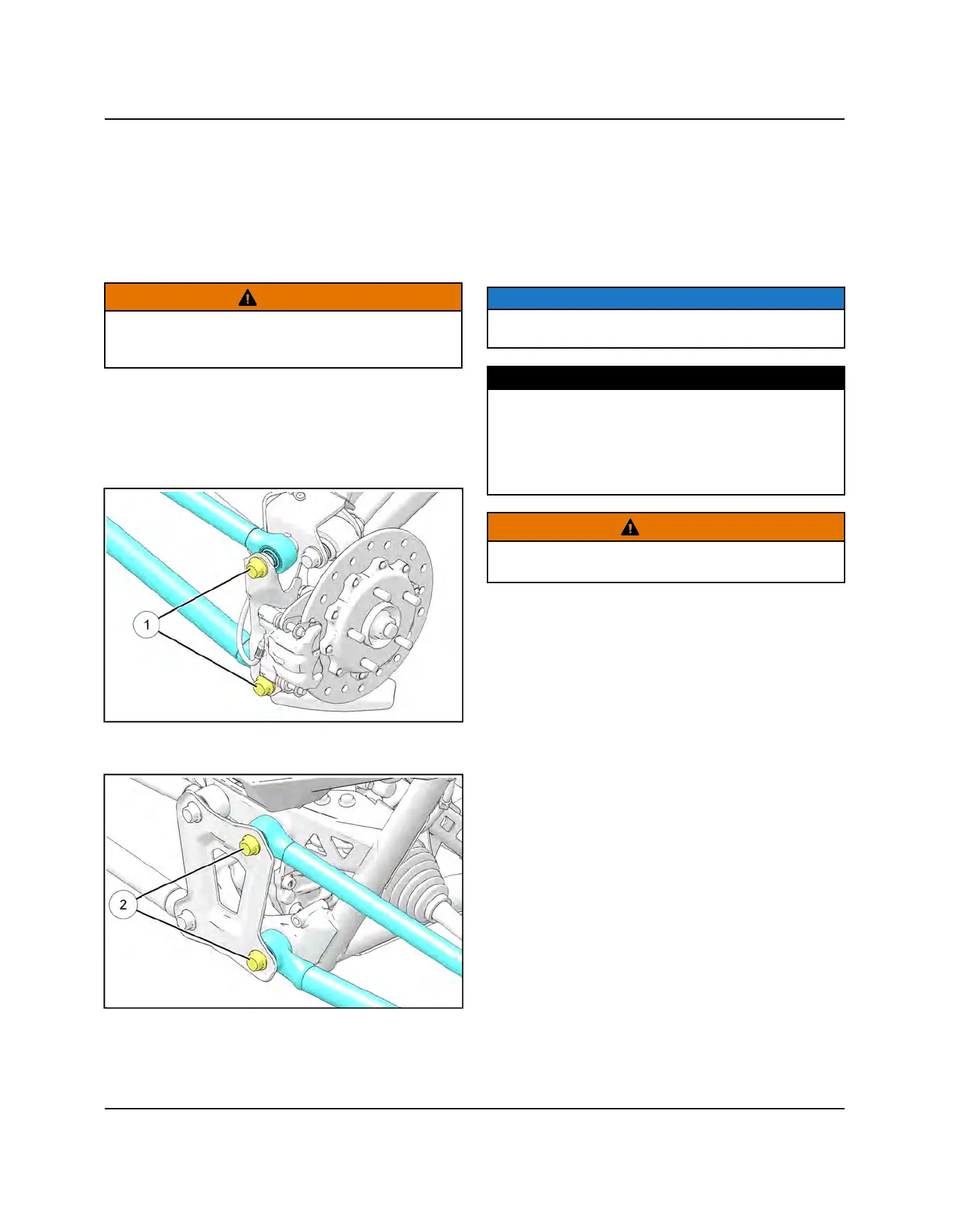

4. Remove the bolt
q
, nut, and washer attaching the
upper and lower radius rod to the bearing carrier.
Discard the nuts.
5. Remove bolts
w
attaching radius rods to the vehicle
frame. Discard the nuts.
6. Remove radius rods from vehicle.
7. Examine radius rod shafts, boots and spherical
bearings. Replace entire radius rod if any excessive
wear is evident.
INSTALLATION
1. Reverse removal procedure to reinstall the radius
rods.
2. Torque all fasteners to specification.
NOTE
Use new attaching nuts upon installation of the rear
radius rods.
TORQUE
Radius Rod Mounting Fasteners:
Inner Radius Rod Fasteners (Single Use): 52 ft-lbs
(70 Nm) + 90°Outer Radius Rod Fasteners: 133 ft-
lbs (180 Nm) - Torque bolt side
Wheel Nuts:
148 ft-lbs (200 Nm)
WARNING
Upon radius rod installation, test vehicle at low speeds
before putting into service.
STEERING / SUSPENSION
