Polaris RZR Pro R 2022

5
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
5.11

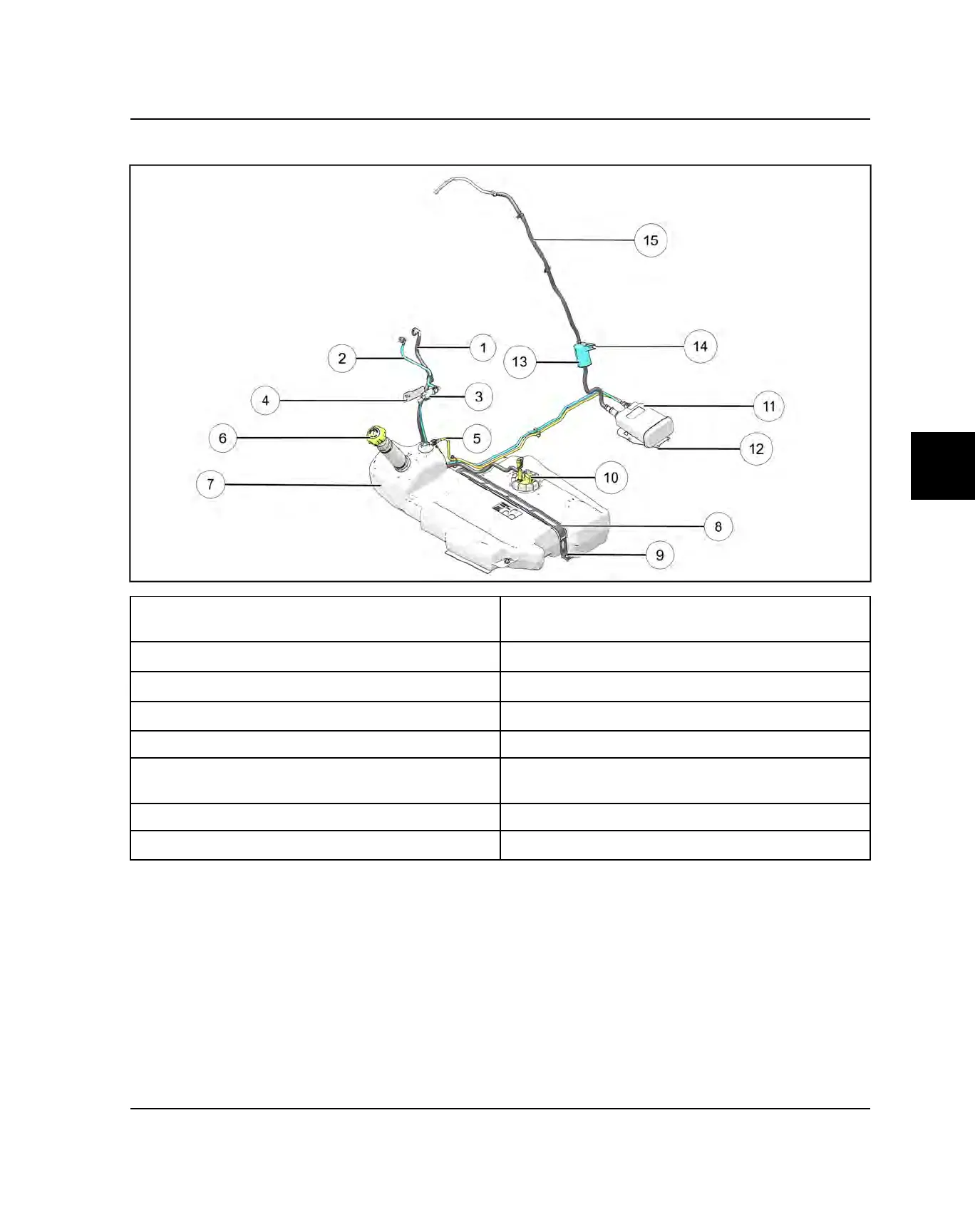

FUEL SYSTEM ASSEMBLY VIEW (EVAP)
q
Fuel Supply Line
o
Fuel Tank Strap Fasteners
15 ft-lbs (20 Nm)
w
Fuel Purge Line
a
Fuel Pump
e
Purge Solenoid
s
Carbon Canister
r
Purge Solenoid Mounting Rivet
d
Carbon Canister Rivet
t
Fuel Tank-to-Canister Line
f
Carbon Canister Filter
y
Fuel Cap
g
Carbon Canister Filter Fasteners
9 ft-lbs (12 Nm)
u
Fuel Tank
h
Fuel Vent Line
i
Fuel Tank Strap
EFI / FUEL SYSTEM
