RADIATOR REPLACEMENT
REMOVAL

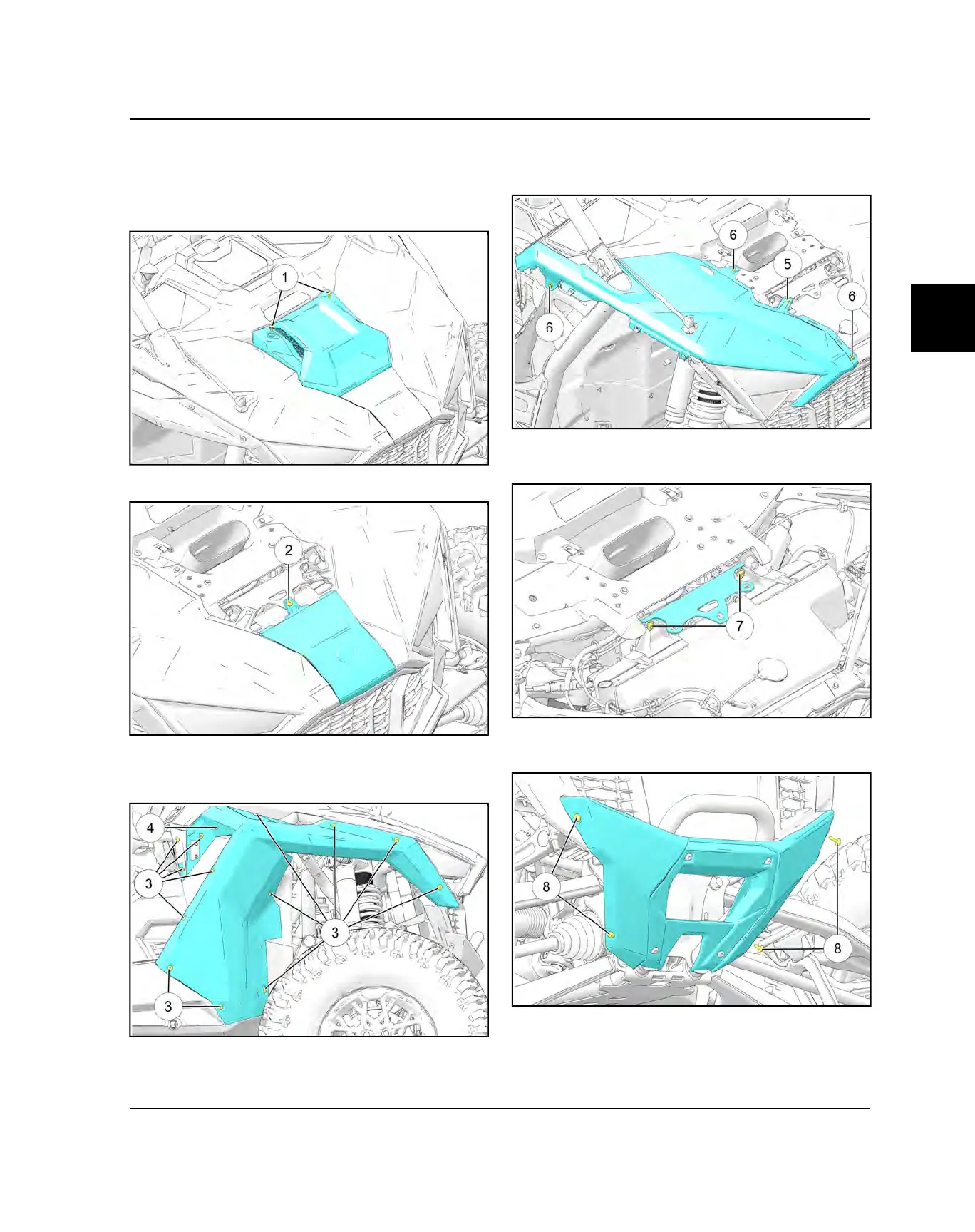

1. Drain cooling system.
2. Remove two fasteners
q
and remove the hood.
3. Remove one fastener
w
and remove the nose cone.
4. Remove thirteen fasteners
e
, one push-pin
r
, and
remove the front fender flare. Repeat for opposite
side of the vehicle.
5. Remove one fastener
t
, three push-pins
y
, and
remove the front fender. Repeat for opposite side of
the vehicle. If equipped, disconnect antenna.
6. Remove two fasteners
u
and remove the fender
mounting bracket.
7. Remove four fasteners
i
and remove the front
bumper assembly.
8. Disconnect electrical connectors from the headlights
and accent lights, if equipped..
