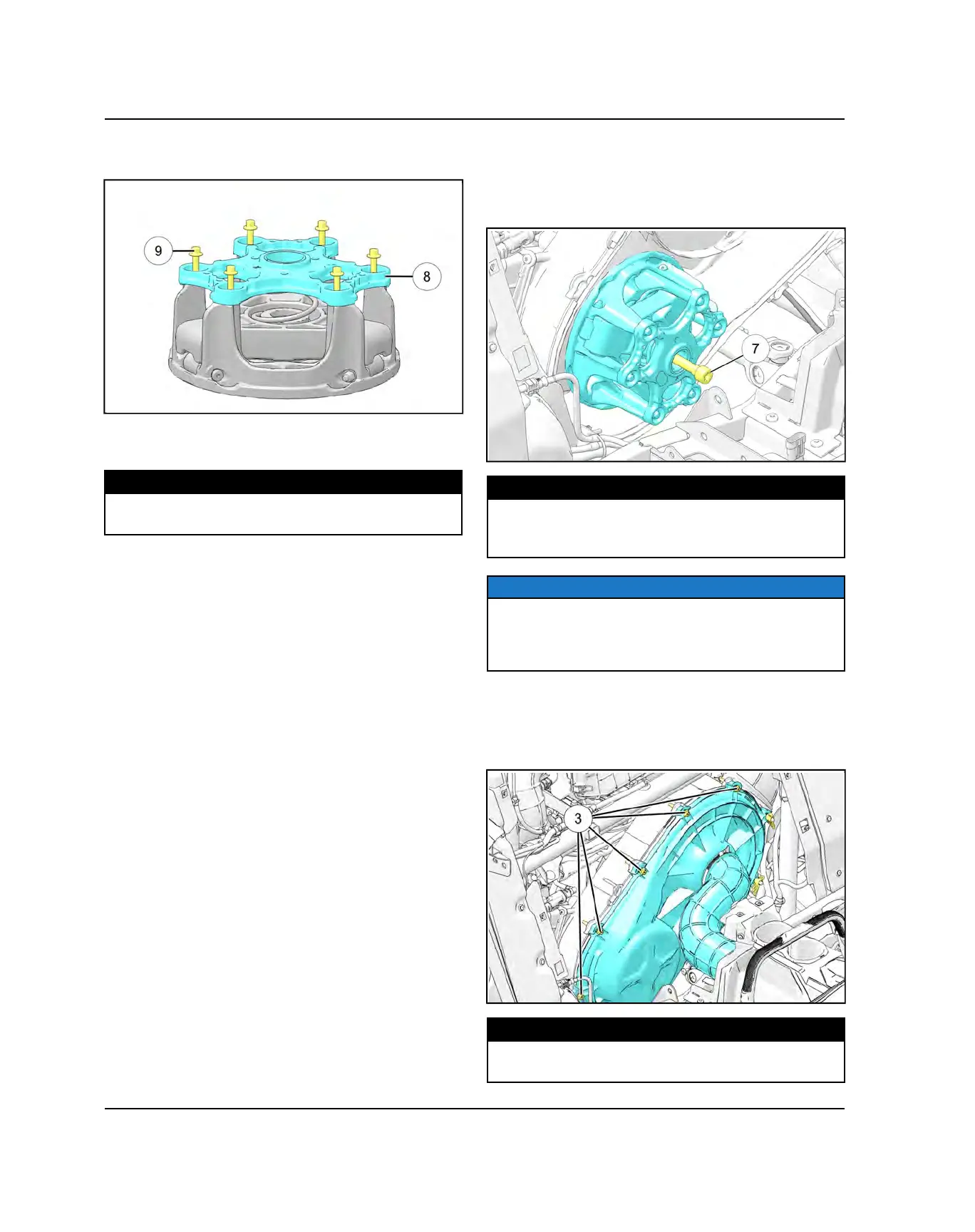

4. Install the clutch cover
i
and clutch cover bolts
o
.
Hand tighten bolts.
5. Torque cover bolts in a cross pattern evenly to
specification.
TORQUE
Drive Clutch Cover Bolts:
15 ft-lbs (21 Nm)
DRIVE CLUTCH INSTALLATION
1. Install drive clutch stationary sheave.
2. Install drive clutch moveable sheave and drive clutch
retaining bolt
u
. Torque fastener to specification.
TORQUE
Drive Clutch Retaining Bolt:
Step 1: 140 ft-lbs (190 Nm)Step 2: Loosen two full
turns (720°)Step 3: 118 ft-lbs (160 Nm)
NOTICE
When drive clutch is fully installed, the spring coupler
between the engine and drive clutch may allow up to
approximately 30 degrees of free rotation when turning
clutch by hand. This rotation range is normal.
3. Install the drive belt.
4. Install outer clutch cover. Install five fasteners
e
and
engage 1/4 turn latches to secure the cover. Torque
fasteners to specification.
TORQUE
Outer PVT Cover Fasteners:
60 in-lbs (7 Nm)
