BRAKE PEDAL

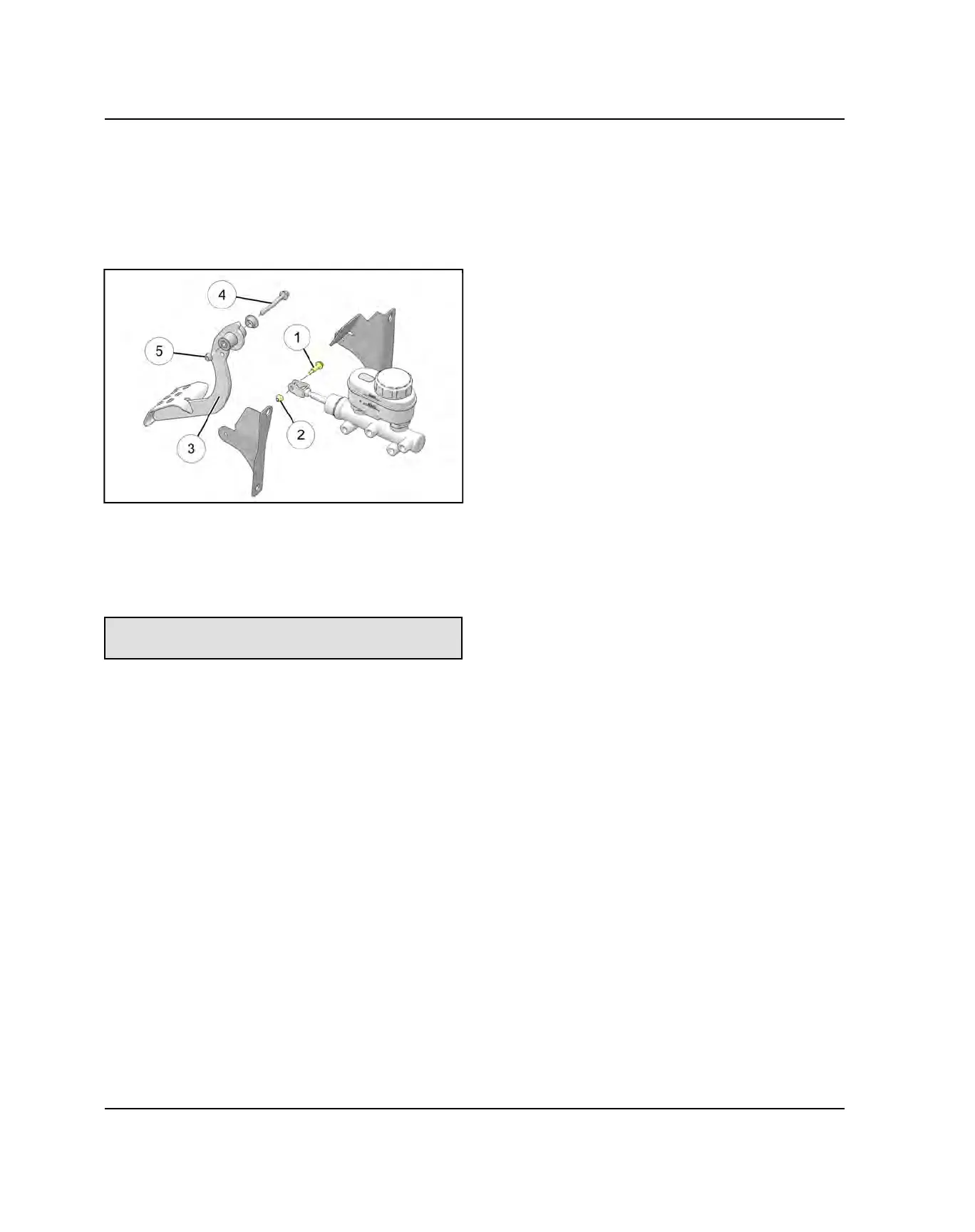

BRAKE PEDAL REMOVAL
1. Locate the brake pedal lever
e
and remove the nut
w
and master cylinder clevis fastener
q
.
2. Remove the nut
t
and
r
from the pedal mount and
remove the brake pedal lever
e
from the vehicle.
BRAKE PEDAL INSTALLATION
1. Reverse the “Removal” steps to install brake pedal
lever. Compare brake pedal free-play to
specification.
Brake Pedal Free-play:
0.090″ (2.28 mm)
