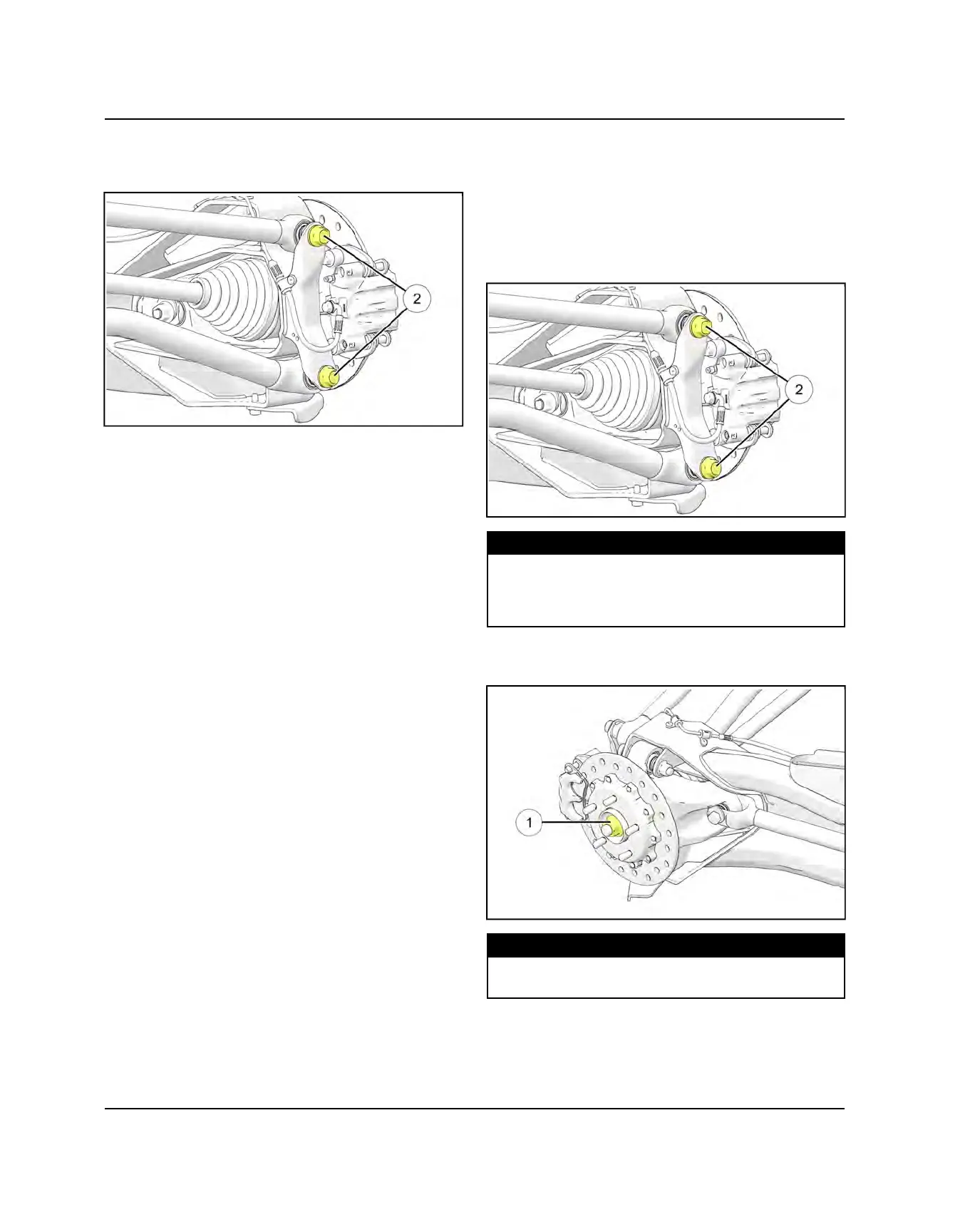

4. Remove the radius rod outer mounting bolts
w
, nuts
and washers from the bearing carrier. Swing radius
rods down.
5. With a sharp, short jerk, remove drive shaft from the
rear gearcase.
REAR HALF SHAFT INSTALLATION
1. Apply anti-seize to inboard splines and install half
shaft into rear gearcase.
2. Install drive shaft through the backside of the bearing
carrier.
3. Install upper and lower radius rods. Torque fasteners
to specification.
TORQUE
Rear Radius Rod Fasteners:
Inner Radius Rod Fasteners (Single Use): 52 ft-lbs
(70 Nm) + 90°Outer Radius Rod Fasteners: 133 ft-
lbs (180 Nm) - Torque bolt side
4. Install NEW wheel axle nut. Torque nut to
specification.
TORQUE
Wheel Axle Nut:
89 ft-lbs (120 Nm)
