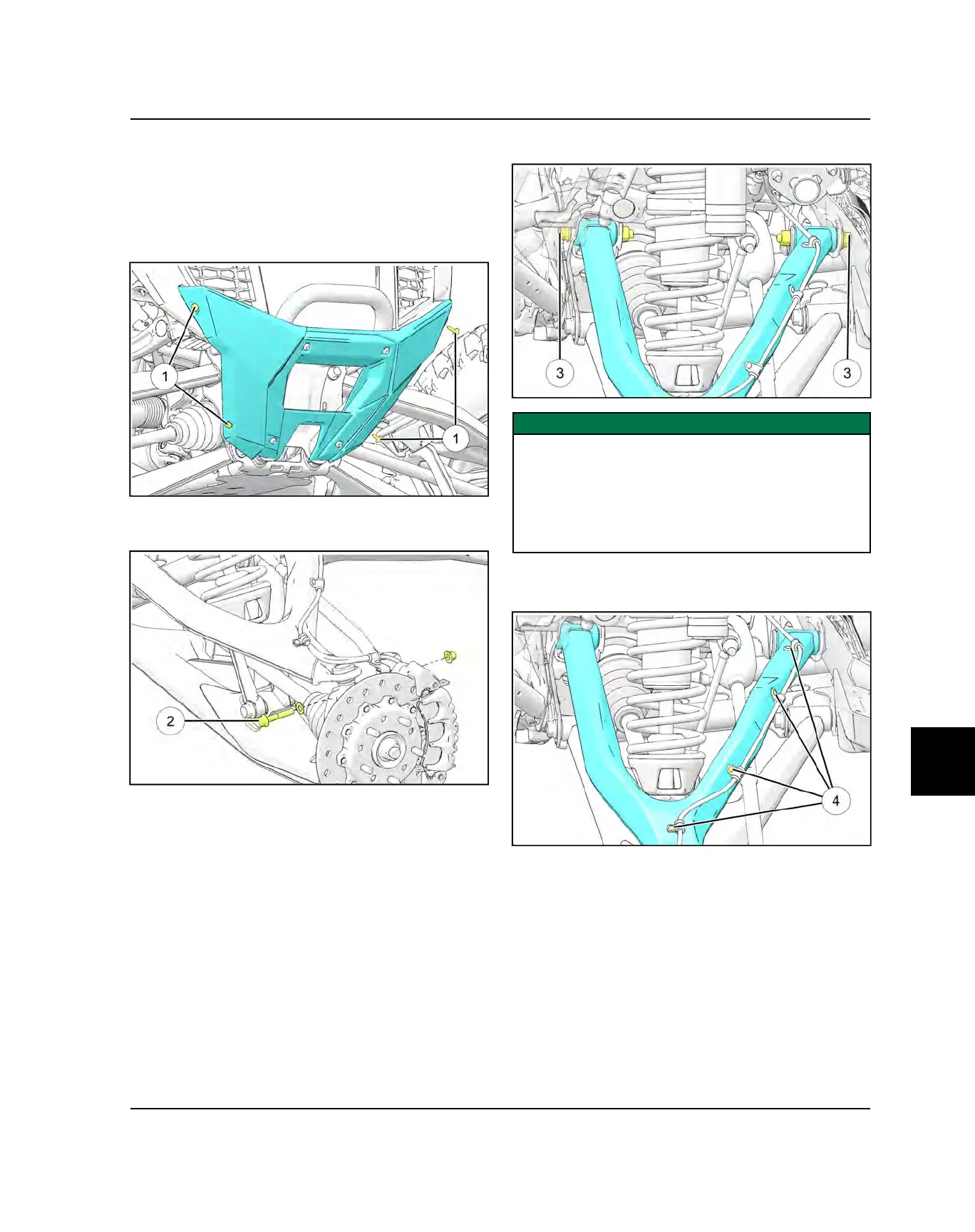

UPPER CONTROL ARM REPLACEMENT
REMOVAL
1. Place vehicle on a suitable lift or jack and remove
front wheel.
2. Remove four front fascia fasteners
q
and remove
front fascia.
3. Remove ball joint pinch bolt
w
, washer, and nut from
the upper control arm.
4. Remove two control arm mounting fasteners
e
.
IMPORTANT
The access panel must be removed from the driver’s
side footwell to remove rear upper control arm fastener.
To remove the rear upper control arm fastener from the
passenger side, turn the steering wheel counter-
clockwise to lock. Cover the tie rod boot with a rag or
lubricate the socket extension shaft to prevent damage
to the boot.
5. Drill out four rivets
r
retaining front brake line to the
control arm using a 3/16” drill bit.
6. Remove control arm from the vehicle.
INSTALLATION
1. Install control arm into its inner mounts, and ball joint
into the bearing carrier.
