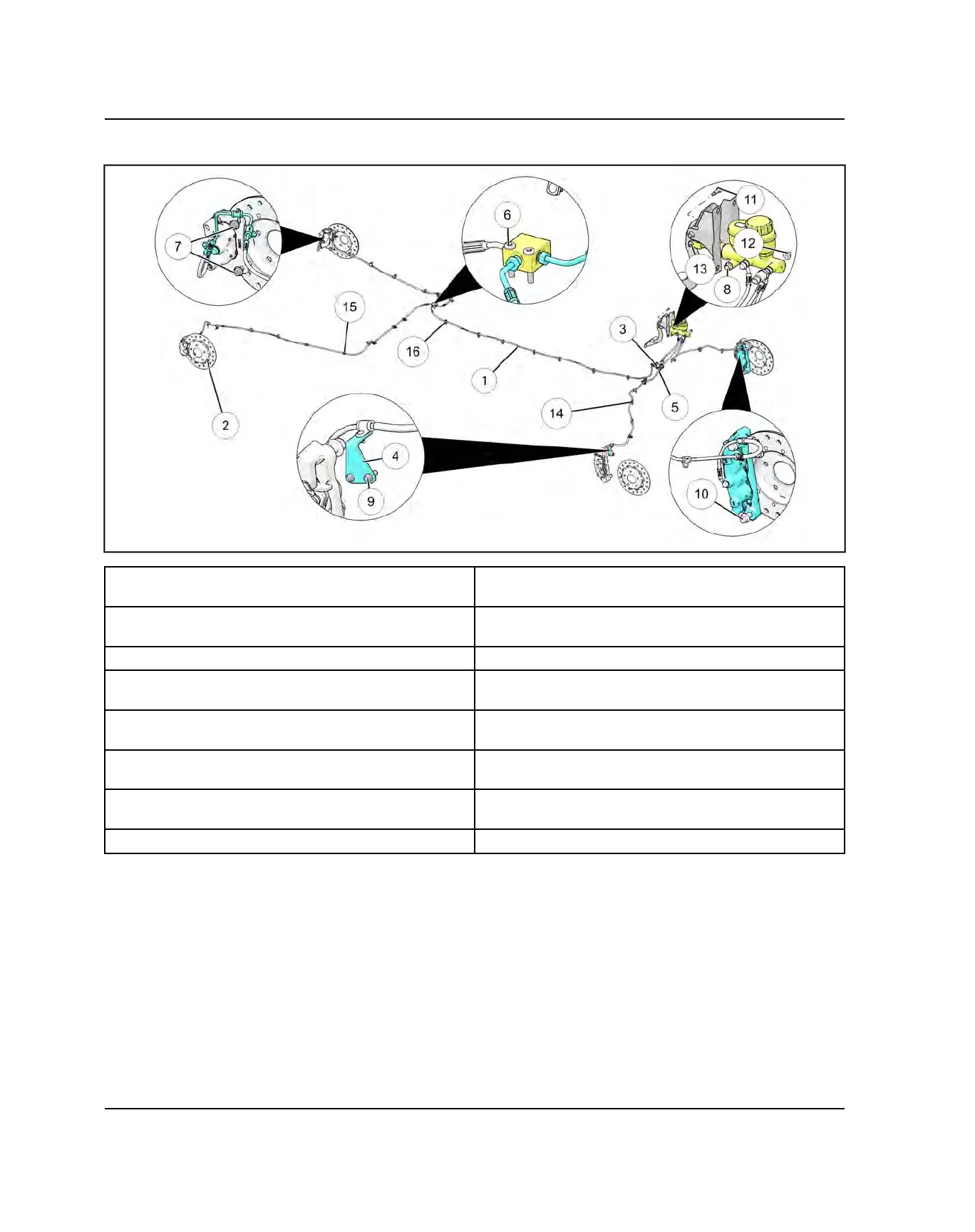

BRAKE SYSTEM VIEW (4-SEAT)
q
Brake System
o
Bracket Fasteners
7 ft-lbs (10 Nm)
w
Brake Disk
a
Front Brake Caliper Fasteners
73 ft-lbs (100 Nm)
e
Button Clip
s
Master Cylinder Bolt
r
Bracket - Hose, Brake, Knuckle
d
Nut - Master Cylinder Fastener
21-23 ft-lbs (28-31 Nm)
t
Edge Clip
f
Nut - Master Cylinder Bolt
4ft-lbs (6 Nm)
y
Junction Block Fasteners
35 in-lbs (4 Nm)
g
Pop Rivet
u
Rear Brake Caliper Fasteners
51 ft-lbs (70 Nm)
h
Pop Rivet
i
Master Cylinder Fasteners
j
Clip - Fir Tree
