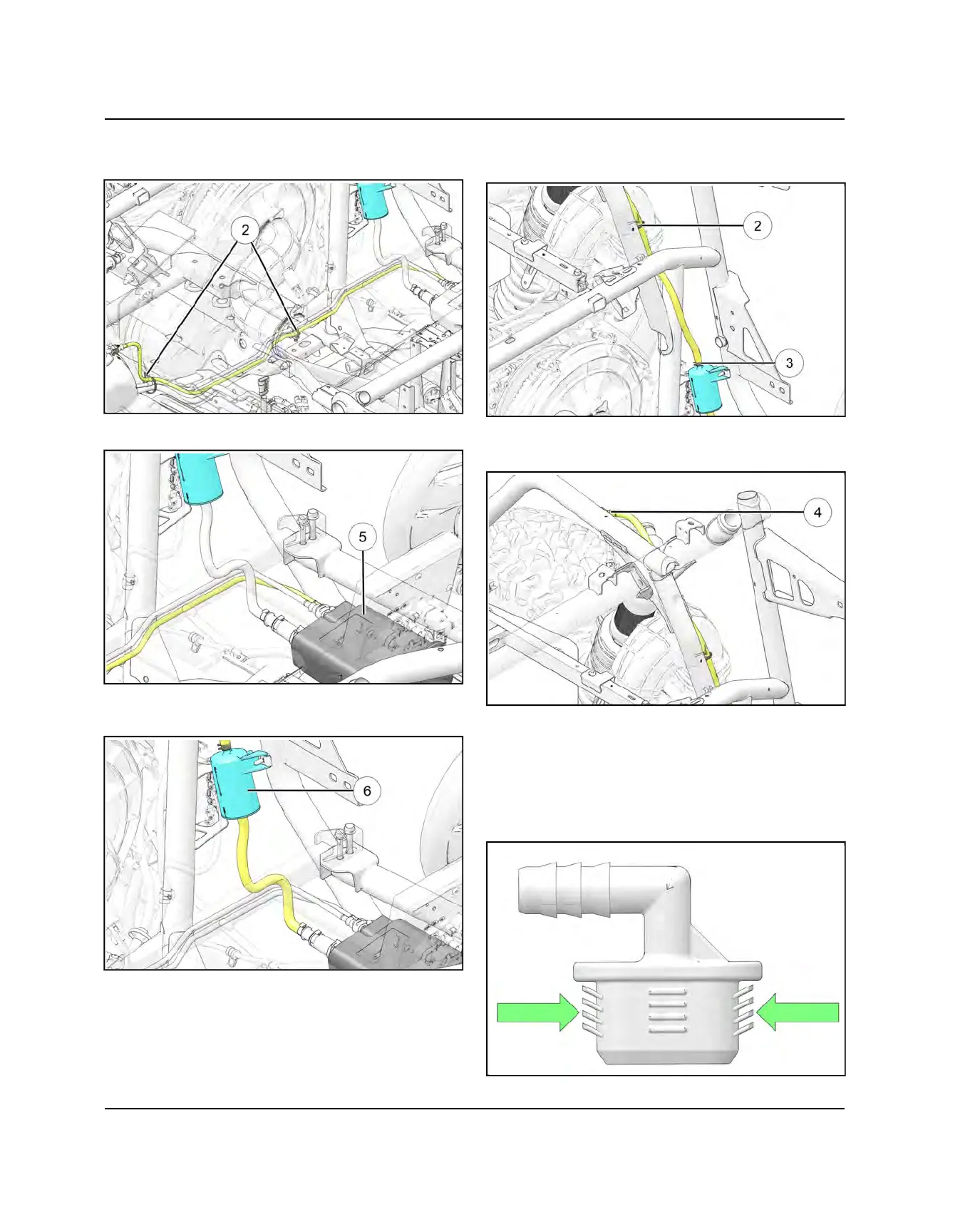

1. Route fuel vent line under the seats and secure vent
line using two zip ties
w
.
2. Route vent line into the carbon canister
t
.
3. Route vent line from the carbon canister to the
canister filter
y
.
4. Attach vent line to the canister filter with a hose clamp
e
, and attach to the frame using a zip tie.
5. Route vent line back along the left shock support tube
and attach to the fitting in the frame
r
.
VENT LINE TERMINATION FITTING
This fitting should be inspected and tested using a Mity
Vac™ to ensure proper venting. Connect the Mity Vac to
the fitting and give it 5 pumps. The gauge should return
to 0 immediately or there is an obstruction.
