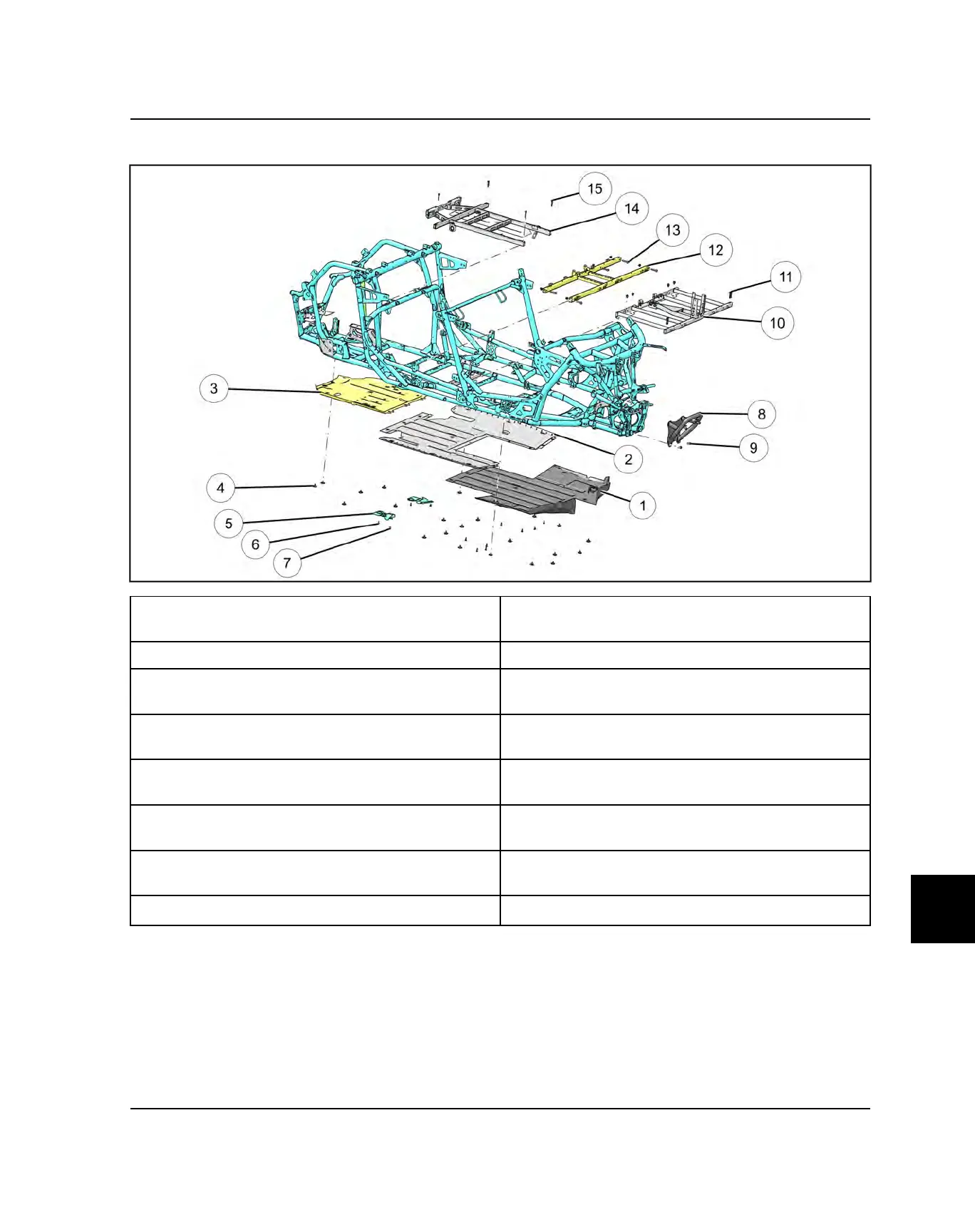

CHASSIS / MAIN FRAME (4-SEAT)
q
Front Skid Plate
o
Front Bumper Fastener
37 ft-lbs (50 Nm)
w
Middle Skid Plate
a
Seat Base
e
Rear Skid Plate
s
Seat Base Fastener
15 ft-lbs (20 Nm)
r
Skid Plate Fastener
9 ft-lbs (12 Nm)
d
Rear Seat Base
t
Skid Plate Plug
f
Rear Seat Base Fastener
22 ft-lbs (30 Nm)
y
Skid Plate Plug Fastener (Torx)
44 in-lbs (5 Nm)
g
Box Support
u
Skid Plate Plug Fastener (Hex)
9 ft-lbs (12 Nm)
h
Box Support Fastener
22 ft-lbs (30 Nm)
i
Front Bumper
